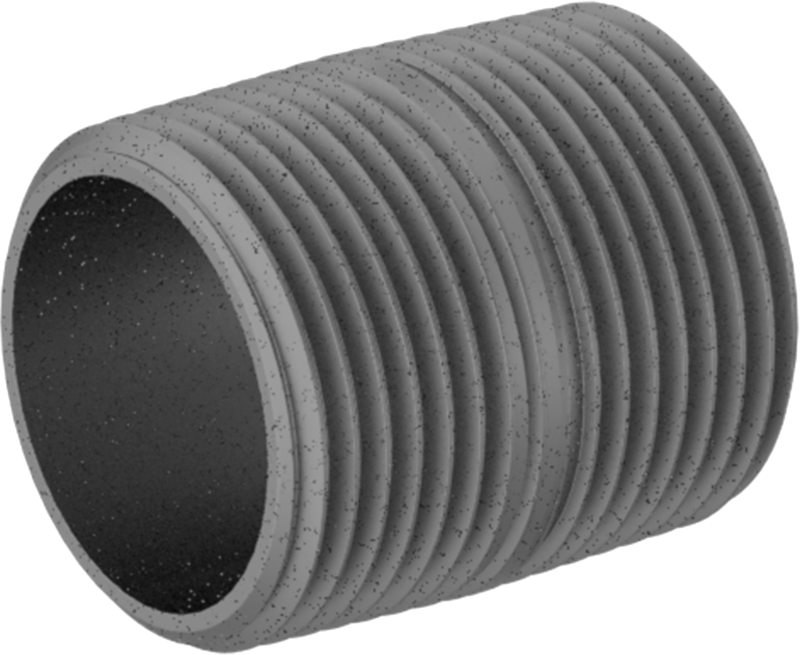

Standard-Wall Galvanized Steel Threaded Pipe Nipple
Fully Threaded, 1 NPT, 1-1/2" Long

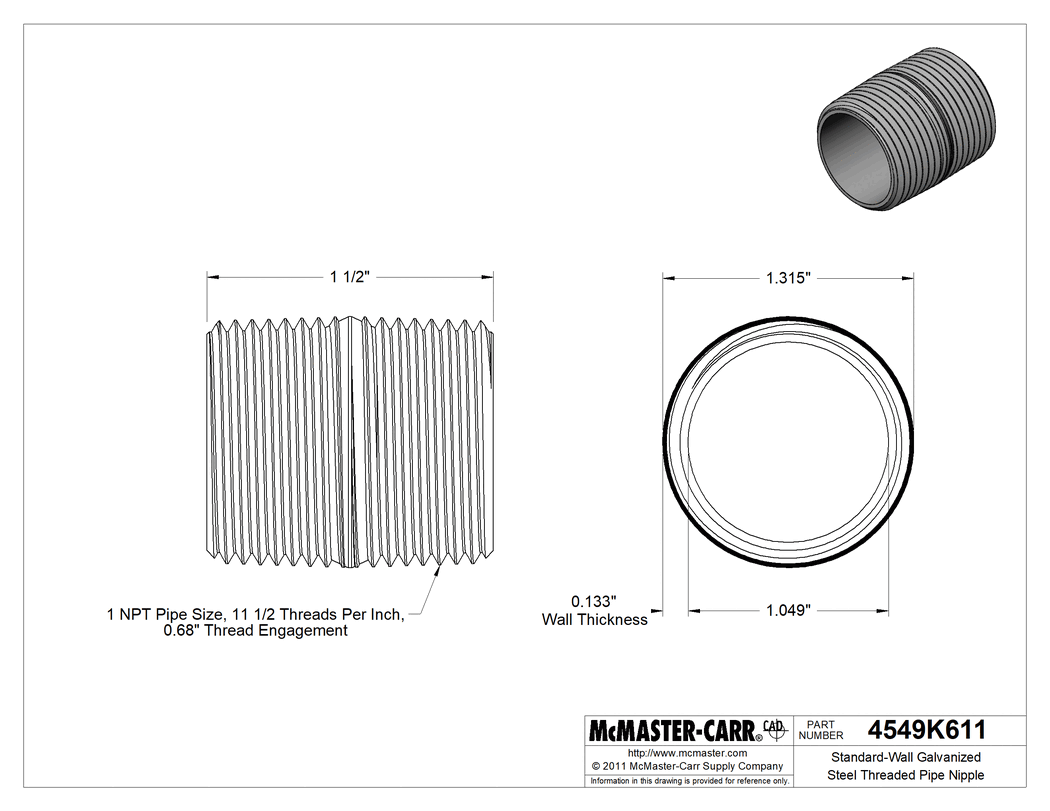

2-D PDF
00000 each
4549K611
In stock
4549K611
00000 each
Each
Select a compatible file type: Parasolid
Available for Solidworks 2017 or newer.
Pressure Rating | Low Pressure |
Wall Thickness Rating | Standard |
Shape | Straight |
Fitting Type | Pipe |
Threading | Fully Threaded |
Fitting Connection | NPT Male |
Pipe Size | 1 |
Length | 1 1/2" |
Construction | Welded |
Pipe Schedule | 40 |
Material | Galvanized Steel |
Connects To | Pipe |
For Fitting Material | |
(A) | Galvanized Iron |
(B) | Galvanized Steel |
For Flange | |
Class | 150 |
Material | Galvanized Steel |
For Fitting Pressure Class | 125, 150 |
For Use With | Air, Natural Gas, Oil, Steam, Water |
ID | 1.049" |
OD | 1 5/16" |
Specifications Met | ASME B1.20.1, ASTM A53, ASTM A733 |
System of Measurement | Inch |
Wall Thickness | 0.133" |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | Not Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 730799.4000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
Made of galvanized steel, this Schedule 40 pipe has fair corrosion resistance and is designed for low-pressure applications.
Fully Threaded—Fully threaded pipe is also known as a close nipple; it is threaded on each end to the center.
Welded—Pipe has a weld bead on the inside.
The information in this 3-D model is provided for reference only.
