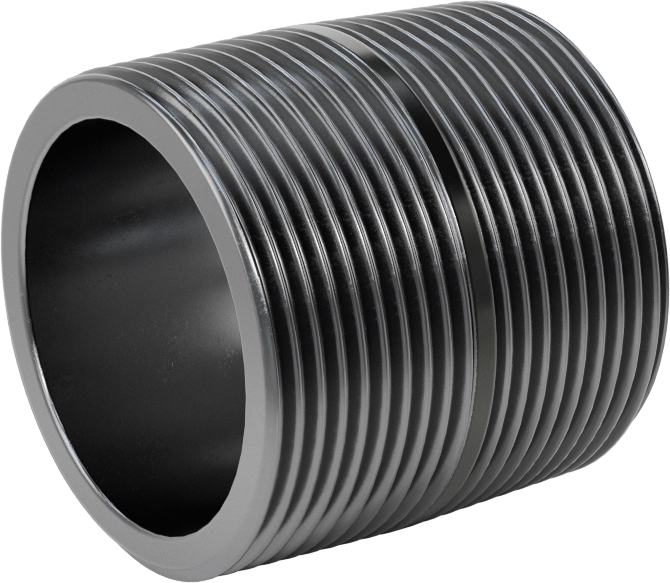

Thick-Wall Welded Steel Pipe Nipple
Fully Threaded, 1-1/2 Pipe Size

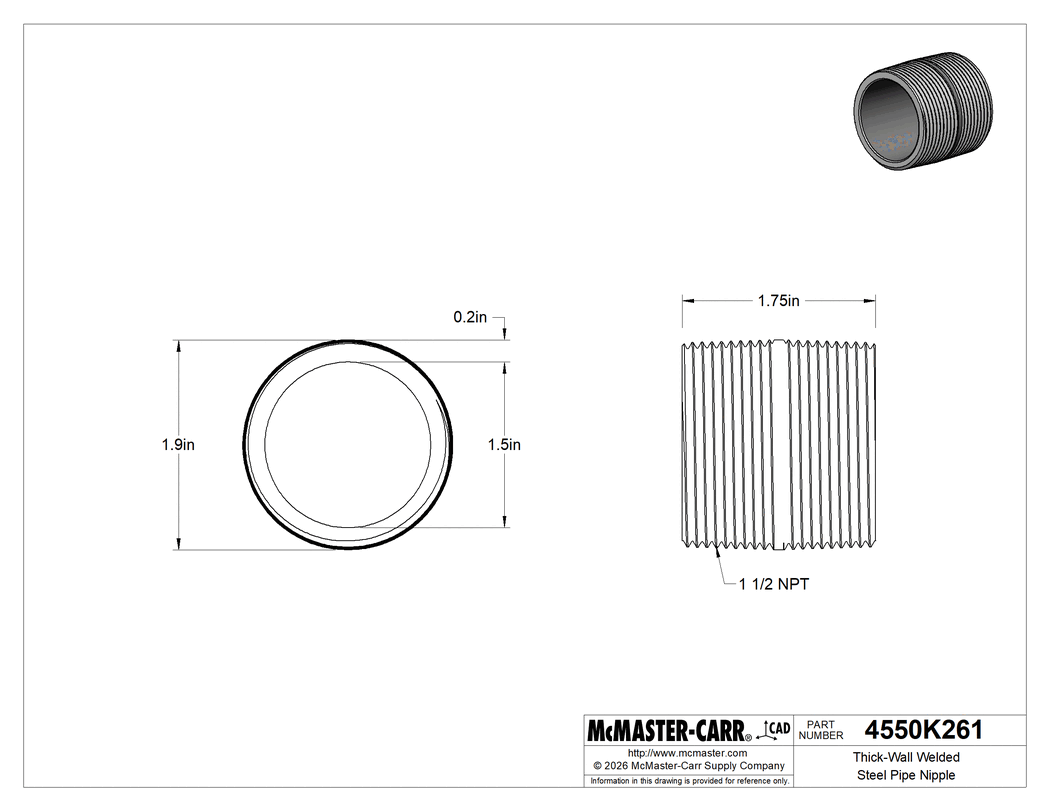

2-D PDF
00000 each
4550K261
In stock
4550K261
00000 each
Each
Select a compatible file type: Parasolid
Available for Solidworks 2017 or newer.
Pressure Rating | High Pressure |
Wall Thickness Rating | Thick |
Shape | Straight |
Fitting Type | Pipe |
Threading | Fully Threaded |
Fitting Connection | NPT Male |
Pipe Size | 1 1/2 |
Length | 1 3/4" |
Construction | Welded |
Pipe Schedule | 80 |
Material | Steel |
Connects To | Pipe |
For Fitting Material | Iron, Steel |
For Flange | |
Class | 300, 600 |
Material | Steel |
For Fitting Pressure Class | 300 |
For Use With | Air, Natural Gas, Oil, Steam, Water |
ID | 1.5" |
OD | 1 29/32" |
Specifications Met | ASME B1.20.1, ASTM A53, ASTM A733 |
System of Measurement | Inch |
Wall Thickness | 0.2" |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (06/27/2024, 241 SVHC) Compliant |
RoHS Compliance | Not Compliant |
Schedule B Number | 730799.4000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
Also known as Schedule 80, this pipe has thick walls for good strength in high-pressure applications.
Fully Threaded—Fully threaded pipe is also known as a close nipple; it is threaded on each end to the center.
Welded—Pipe has a weld bead on the inside.
The information in this 3-D model is provided for reference only.
