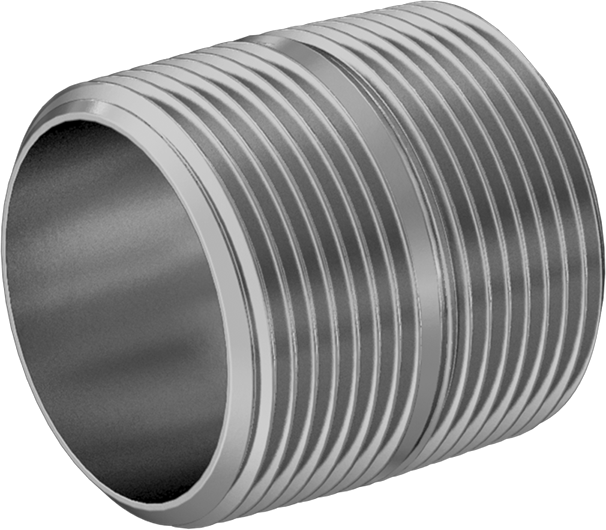

Standard-Wall Brass Pipe Nipple
Fully Threaded, 1-1/4 NPT
Pressure Rating | Low Pressure |
Wall Thickness Rating | Standard |
Shape | Straight |
Fitting Type | Pipe |
Threading | Fully Threaded |
Fitting Connection | NPT Male |
Pipe Size | 1 1/4 |
Length | 1 5/8" |
Construction | Seamless |
Pipe Schedule | 40 |
Material | 230 Brass |
Connects To | Pipe |
Food Industry Standard | NSF/ANSI 61 |
For Fitting Material | Brass, Bronze |
For Flange | |
Class | 150 |
Material | Brass, Bronze |
For Fitting Pressure Class | 125 |
For Use With | Air, Drinking Water, Natural Gas, Oil, Steam, Water |
ID | 1.38" |
OD | 1 21/32" |
Performance | Corrosion Resistant |
Specifications Met | ASTM B687 |
System of Measurement | Inch |
Wall Thickness | 0.14" |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 741220.0000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
Also known as Schedule 40, this pipe is for use in low-pressure flow applications. It is brass, which offers good corrosion resistance.
Fully Threaded—Fully threaded pipe is also known as a close nipple; it is threaded on each end to the center.
Seamless—Pipe has a smooth interior for unrestricted flow and is stronger than welded pipe.
NSF/ANSI 61—To adhere to safety standards for drinking water systems, use pipe that meets NSF/ANSI 61.

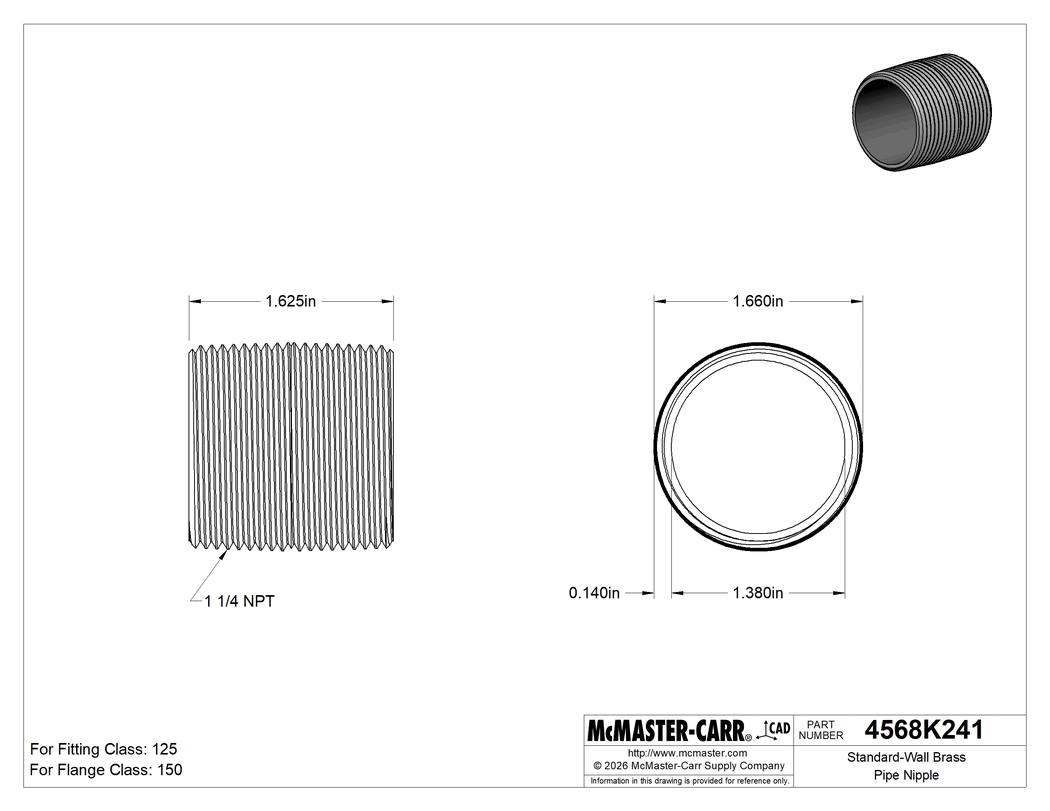

The information in this 3-D model is provided for reference only.
