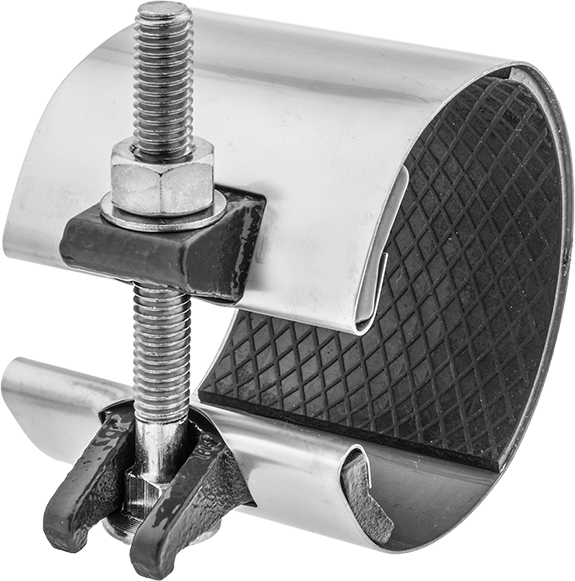

Low-Pressure Pipe Repair Clamp
Partial-Coverage Buna-N Gasket, 3" Long, 1.315" Pipe OD
Gasket | |
Coverage | Partial |
Material | Buna-N |
Length | 3" |
For Pipe OD | 1.315" |
For Pipe Size | 1 |
Maximum Pressure @ Temperature | 100 psi @ 72° F |
Maximum Vacuum @ Temperature | 15 in. Hg @ 72° F |
Material | 304 Stainless Steel |
For Use With | Diesel Fuel, Drinking Water, Hydraulic Fluid, Oil, Water |
Temperature Range | -20° F to 180° F |
Food Industry Standard | NSF/ANSI 61 |
For Pipe Material | Aluminum, Copper, Iron, PVC, Steel |
Bolt Material | Galvanized Steel |
Connects To | Pipe |
Environment | Food and Beverage |
Fitting Type | Repair Clamp |
Lug Material | Iron |
Number of Bolts | 1 |
Nut Material | Galvanized Steel |
Shape | Straight |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | Not Compliant |
RoHS Compliance | Not Compliant |
Schedule B Number | 730729.0000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
Repair pinholes and cracks in low-pressure applications without having to disassemble your system. All clamps are 304 stainless steel for very good corrosion resistance. Choose a clamp that’s long enough to cover your damaged area with at least 1” on both sides.
Buna-N Gasket—Most Buna-N gaskets work with a variety of media, such as water, oil, and hydraulic fluid.
Partial-Coverage Gasket—Clamps with partial-coverage gaskets, also known as patch clamps, repair pinholes and small cracks. The gasket on these clamps wraps around as much as 40% of the pipe. Unlike clamps with full-coverage gaskets, you'll need to line up the gasket so it completely covers the damaged area.
NSF/ANSI 61—Clamps that meet NSF/ANSI 61 are safe for use with drinking water systems.
