    Torx Bit for Impact Drivers

    1/4" Hex Shank for Power Tools, T30 Size

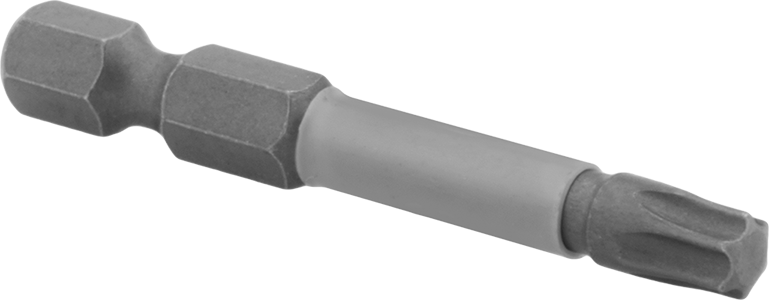

    Image of Product. Quick-Change Hex Shank. Front orientation. Torx Bit for Impact Drivers, 1/4" Hex Shank for Power Tools, T30 Size.
    Quick-Change Hex Shank

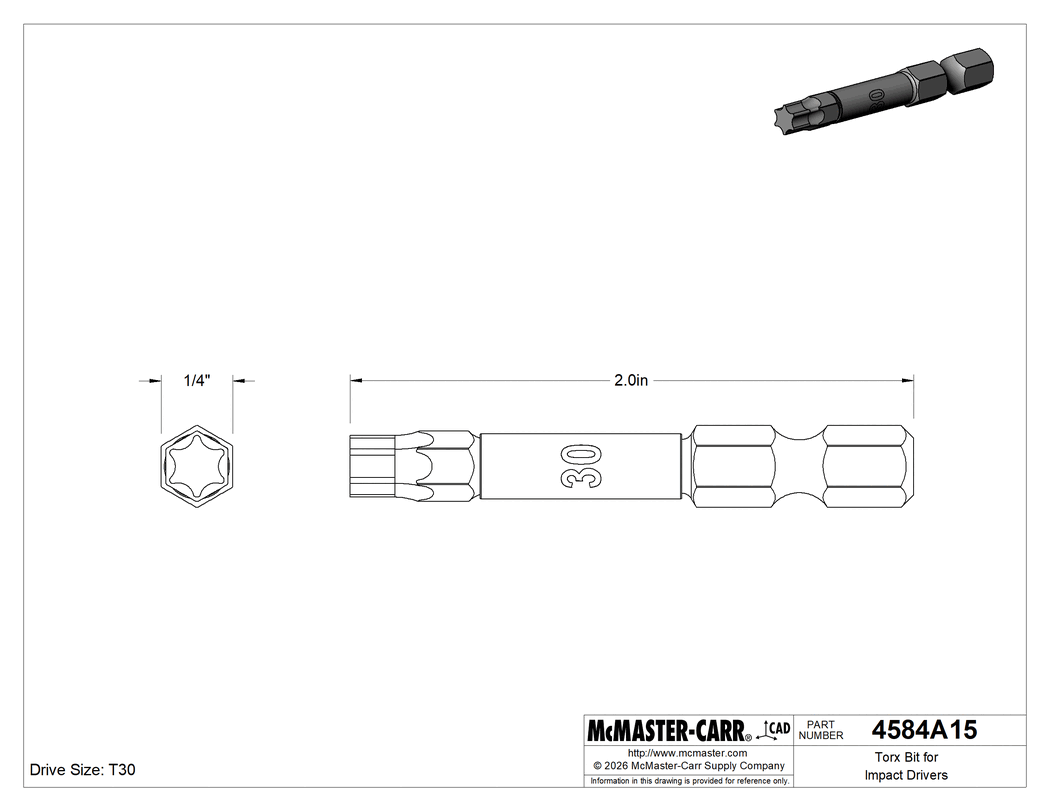

    Technical Drawing of Torx Bit for Impact Drivers, 1/4" Hex Shank for Power Tools, T30 Size.
    Image of Specification. Torx Drive. Front orientation. Torx Bit for Impact Drivers, 1/4" Hex Shank for Power Tools, T30 Size.
    Torx Drive
    2-D PDF
    000000 each
    4584A15
    In stock
    4584A15
    000000 each
    Each
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    For Use With

    Impact Drivers

    Driver Style

    Bit

    For Tool Type

    Power Tools

    Hex Shank Size

    1/4"

    Shank Type

    Quick-Change Hex

    Drive Size

    T30

    Overall Length

    2"

    Material

    Diamond-Coated Steel

    For Drive Style

    Torx

    Performance

    Wear Resistant

    Tip Style

    Straight

    Country of Origin

    Czech Republic

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    REACH (EC 1907/2006) (11/05/2025, 251 SVHC) Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    820790.7570

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    No

    Tougher than your average Torx bits. These have a thin, flexible section on the shank that absorbs 30 times the impact force. They are heat treated for hardness and manufactured to tight tolerances, so they won't snap or slip under high stress.

    Quick-Change Hex Shank—Lock these bits directly into power tools. They won't wobble as much as bits paired with an adapter, so they are the best choice for high-precision tasks.

    Wear-Resistant Diamond-Coated Steel—Diamond particles embedded in the tip bite into the screw head for a strong grip. Our most wear-resistant bits, these maintain their grip and shape, even when driving screws into tough materials.

    The information in this 3-D model is provided for reference only.
