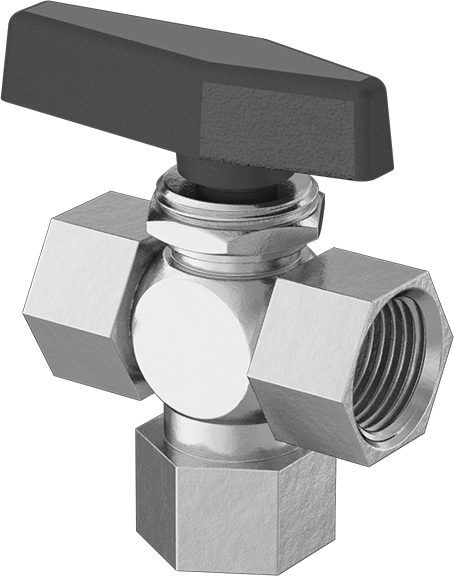

Diverting Valve
Panel-Mount, L-Pattern, Brass Body, 1/2 NPT Female, 2.7 Cv
Diverting Valve Flow Pattern | L-Pattern |
Body Material | Brass |
Ball Material | Nickel-Plated Brass |
Thread Type | NPT |
Gender | Female |
Inlet Connection Location | Bottom |
Thread Type | NPT |
Gender | Female |
Outlet Connection Location | Side |
Thread Type | NPT |
Gender | Female |
Outlet Connection Location | Side |
Fitting Connection | Threaded |
Fitting Connection | Threaded |
Fitting Connection | Threaded |
Pipe Size | 1/2 |
Flow Shut-Off | Yes |
Handle | |
Style | Lever |
Color | Black |
Port Type | Standard |
Flow Coefficient (Cv) | 2.7 |
Maximum Pressure @ Temperature | 500 psi @ 70° F |
Valve Type | Ball |
Temperature Range | -20° F to 180° F |
Vacuum Rating | Not Rated |
Panel Cutout Diameter | 13/16" |
Seal Material | Buna-N |
End-to-End Length | 2 3/16" |
For Use With | Air, Argon, Helium, Krypton, Neon, Oil, Water, Xenon |
Overall | |
Height | 2 15/16" |
Length | 2 3/16" |
Seat Material | PTFE |
Mounting Position | Any Angle, Horizontal, Vertical |
Actuation | Manual |
Chemical Resistance (Excellent) | Air, Argon, Helium, Krypton, Neon, Oil, Water, Xenon |
Connection Port | Inlet |
Connection Port | Outlet |
Connection Port | Outlet |
Connects to | Pipe |
Fitting Type | Connector |
Number of Flow-Adjustment Positions | 3 |
Number of Ports | 3 |
Outlet Pipe Sizes | 1/2 × 1/2 |
Shape | Tee |
Valve Function | Diverting |
Valve Operation | Handle |
Warning Message | Chemical compatibility must be determined by the customer based on the conditions in which the product is being used, including the presence of other chemicals, temperature, and consistency. |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | Not Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant with Exemptions |
RoHS Exemptions | 6(c) |
Schedule B Number | 848180.1085 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
For installation in instrument panels, these valves have threads and a hex nut below the handle. They divert flow between ports. Turn the handle to direct the flow.
Standard Port—Standard-port valves slightly restrict flow.
Flow Coefficient (Cv)—Flow coefficient (Cv) is the amount of water (in gallons per minute) at 60° F that will flow through a fully open valve with a difference of 1 psi between the inlet and the outlet.

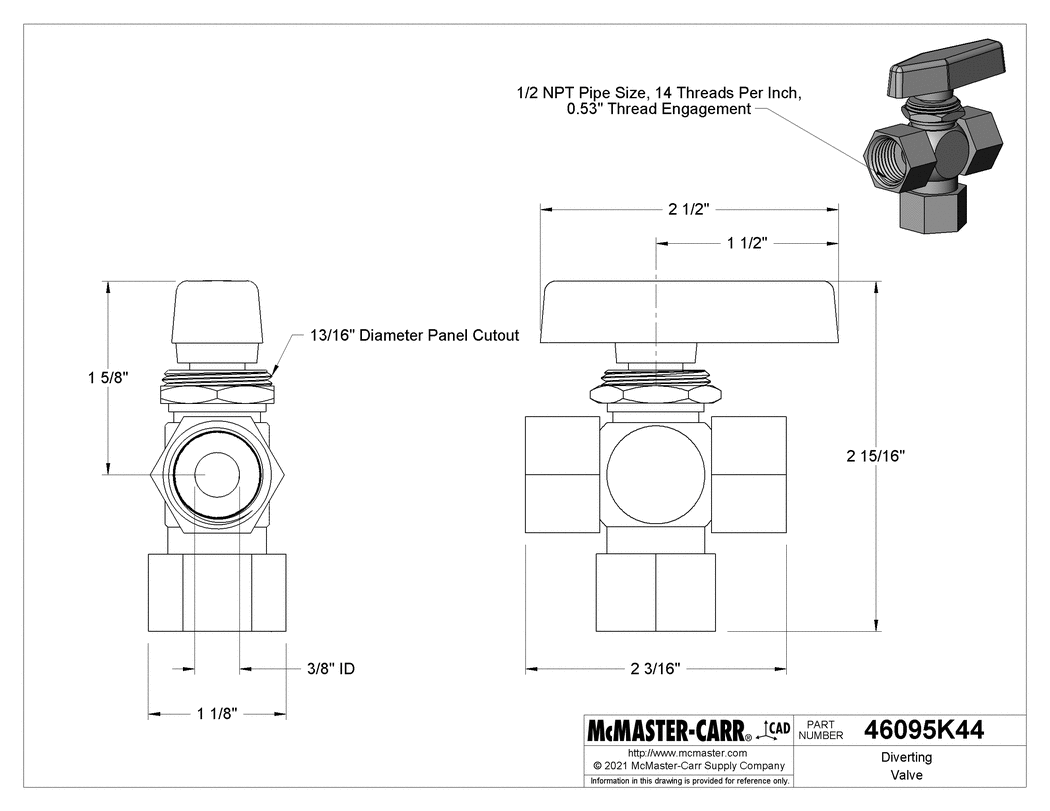

The information in this 3-D model is provided for reference only.
