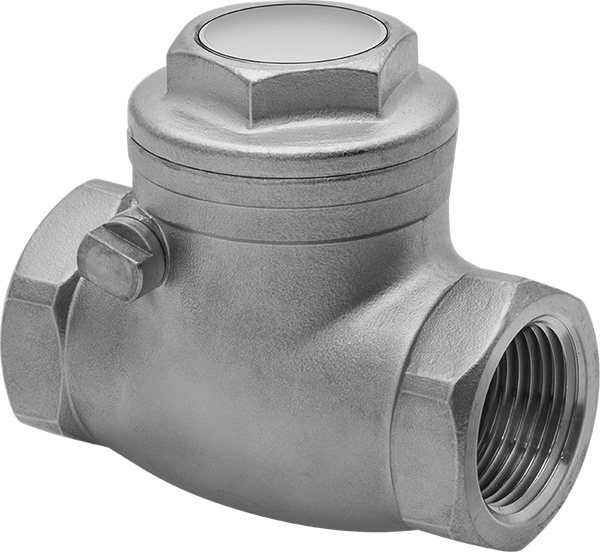

High-Flow Threaded Check Valve
316 Stainless Steel Body, 1 NPT Female
Body Material | 316 Stainless Steel |
Check Valve Type | Swing |
Inlet | |
Connects to | Pipe |
Fitting Connection | Threaded |
Gender | Female |
Thread Type | NPT |
Connection Port | Inlet |
Outlet | |
Connects to | Pipe |
Fitting Connection | Threaded |
Gender | Female |
Thread Type | NPT |
Connection Port | Outlet |
Pressure Class | Not Rated |
Pipe Size | 1 |
Flow Coefficient (Cv) | 106 |
Maximum Pressure @ Temperature | 200 psi @ 70° F |
Maximum Steam Pressure @ Temperature | 150 psi @ 350° F |
Minimum Opening Pressure | 0.5 psi |
Temperature Range | -20° F to 400° F |
End-to-End Length | 3 9/16" |
Mounting Position | Horizontal, Vertical |
Features | Removable Cap |
For Use With | Air, Steam, Water |
Disc Material | 316 Stainless Steel |
Seal Material | PTFE |
Actuation | Pressure |
Chemical Resistance | |
Excellent | Acetone, Air, Ammonia, Butane, Carbon Dioxide, Diesel Fuel, Fuel Oil, Gasoline, Kerosene, Natural Gas, Nitrogen, Oil, Oxygen, Soap Solutions, Steam, Sulfuric Acid, Toluene (Methylbenzene), Water, Xylene, Nitric Acid (25% Concentration), Nitric Acid (100% Concentration), Sodium Hydroxide (Caustic Soda) (25% Concentration), Sodium Hydroxide (Caustic Soda) (50% Concentration) |
Moderate | Chlorine, Ethanol, Ethylene Glycol, Isopropyl Alcohol, Mineral Spirits, Propane, Salt Water, Citric Acid (25% Concentration), Citric Acid (50% Concentration), Citric Acid (100% Concentration) |
Fitting Type | Connector |
Performance | High Flow |
Shape | Straight |
Valve Function | Backflow Prevention |
Valve Type | Check |
Warning Message | Chemical compatibility must be determined by the customer based on the conditions in which the product is being used, including the presence of other chemicals, temperature, and consistency. |
Country of Origin | China |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | 2B999 |
REACH Compliance | REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 848130.2090 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
To achieve the maximum possible flow, internal components are designed to reduce flow resistance. These valves open to allow flow in one direction and close when flow stops or reverses. A removable cap provides easy access to internal components for maintenance.
316 Stainless Steel Body—316 stainless steel valves are more corrosion resistant than bronze valves.
Flow Coefficient (Cv)—Flow coefficient (Cv) is the amount of water (in gallons per minute) at 60° F that will flow through a fully open valve with a difference of 1 psi between the inlet and the outlet.

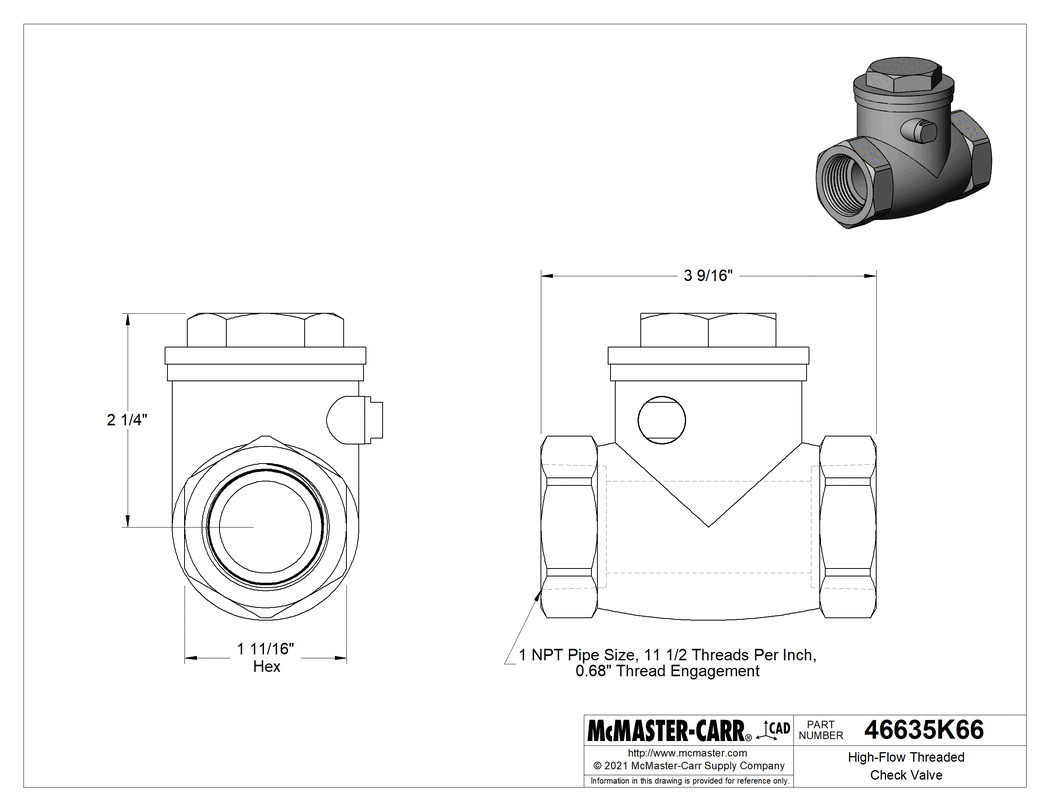

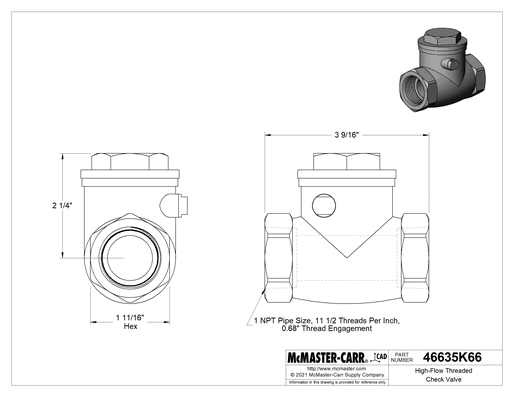

The information in this 3-D model is provided for reference only.
