Brass Body Solenoid On/Off Valve
Normally Closed, 240V AC, 1/4 NPT Female, 1.4 Cv
Valve Position | Fail Closed |
Voltage | 240V AC |
Body Material | Brass |
Electrical Connection | DIN A |
Seal Material | Buna-N |
Thread Type | NPT |
Gender | Female |
Pipe Size | 1/4 |
Flow Coefficient (Cv) | 1.4 |
Maximum Pressure @ Temperature | 300 psi @ 70° F |
Valve Type | Pressure Drop Assisted, Solenoid |
Temperature Range | 15° F to 195° F |

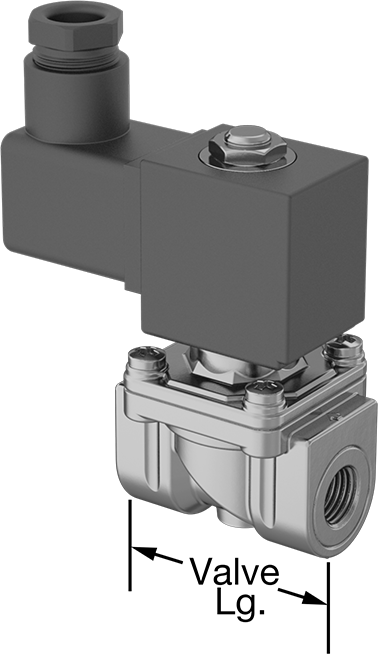

Valve Length | 2" |
Overall | |
Length | 3" |
Width | 1 9/16" |
Height | 3 5/8" |
Enclosure Rating | IP65, NEMA 4 |
Certification | CE Marked |
Actuation | Solenoid |
Actuator | |
Length | 1 5/8" |
Width | 1 3/16" |
Actuator Housing Material | Plastic |
Actuator Mount Location | Direct |
Actuator Temperature | -20° F to 355° F |
Chemical Resistance | |
Excellent | Air, Argon, Butane, Carbon Dioxide, Diesel Fuel, Ethanol, Ethylene Glycol, Gasoline, Helium, Kerosene, Krypton, Liquid Carbon Dioxide, Natural Gas, Neon, Nitrogen, Oil, Propane, Water, Xenon |
Moderate | Fuel Oil, Isopropyl Alcohol, Soap Solutions, Sodium Hydroxide (Caustic Soda) (25% Concentration), Sodium Hydroxide (Caustic Soda) (50% Concentration) |
Poor | Acetone, Ammonia, Chlorine, Deionized Water, Methanol (Methyl Alcohol), Methyl Ethyl Ketone (MEK), Mineral Spirits, Salt Water, Sulfuric Acid, Toluene (Methylbenzene), Xylene, Citric Acid (25% Concentration), Citric Acid (50% Concentration), Citric Acid (100% Concentration), Hydrochloric Acid (25% Concentration), Hydrochloric Acid (37% Concentration), Hydrochloric Acid (100% Concentration), Nitric Acid (25% Concentration), Nitric Acid (50% Concentration), Nitric Acid (100% Concentration), Phosphoric Acid (25% Concentration), Phosphoric Acid (50% Concentration), Phosphoric Acid (100% Concentration), Sodium Hydroxide (Caustic Soda) (25% Concentration), Sodium Hydroxide (Caustic Soda) (50% Concentration), Sodium Hydroxide (Caustic Soda) (75% Concentration), Sodium Hydroxide (Caustic Soda) (100% Concentration), Sodium Hypochlorite (Bleach) (25% Concentration), Sodium Hypochlorite (Bleach) (50% Concentration), Sodium Hypochlorite (Bleach) (100% Concentration) |
Conduit Trade Size | 1/2 |
Connects To | Pipe |
Diaphragm Material | Buna-N |
Duty Cycle | Continuous |
Electrical Connection Type | Hardwire |
Environment | Corrosive, Dusty, Food and Beverage, Outdoor, Washdown, Wet |
Fitting Connection | Threaded |
Fitting Type | Connector |
For Use Outdoors | Yes |
For Use With | Air |
Frequency | 50 Hz, 60 Hz |
Manual Override | No |
Maximum Current Draw | 0.6 amp |
Minimum Pressure Drop Required | 2 psi |
Mounting Position | Any Angle, Horizontal, Vertical |
Relative Vacuum Rating | Not Rated |
Seat Material | Buna-N |
Shape | Straight |
Valve Function | On/Off |
Valve Width | 1 9/16" |
Warning Message | Chemical compatibility must be determined by the customer based on the conditions in which the product is being used, including the presence of other chemicals, temperature, and consistency. |
Country of Origin | Italy |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (01/17/2023, 233 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant with Exemptions |
RoHS Exemptions | 6(c) |
Schedule B Number | 848180.9005 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
Related Products | |
These solenoid valves operate on electricity to automatically start and stop flow. The actuator is directly mounted to the valve body to minimize movement and reduce wear.
Fail-Closed Valve—Fail closed valves are closed unless actuated.
Pressure Drop Assisted Valve—Pressure drop assisted valves require a minimum pressure drop between the inlet and the outlet for operation; the upstream pressure must be greater than the downstream pressure.
Flow Coefficient (Cv)—Flow coefficient (Cv) is the amount of water (in gallons per minute) at 60° F that will flow through a fully open valve with a difference of 1 psi between the inlet and the outlet.
Enclosure Rating—All IP- or NEMA-rated valves stand up to dust and washdowns.

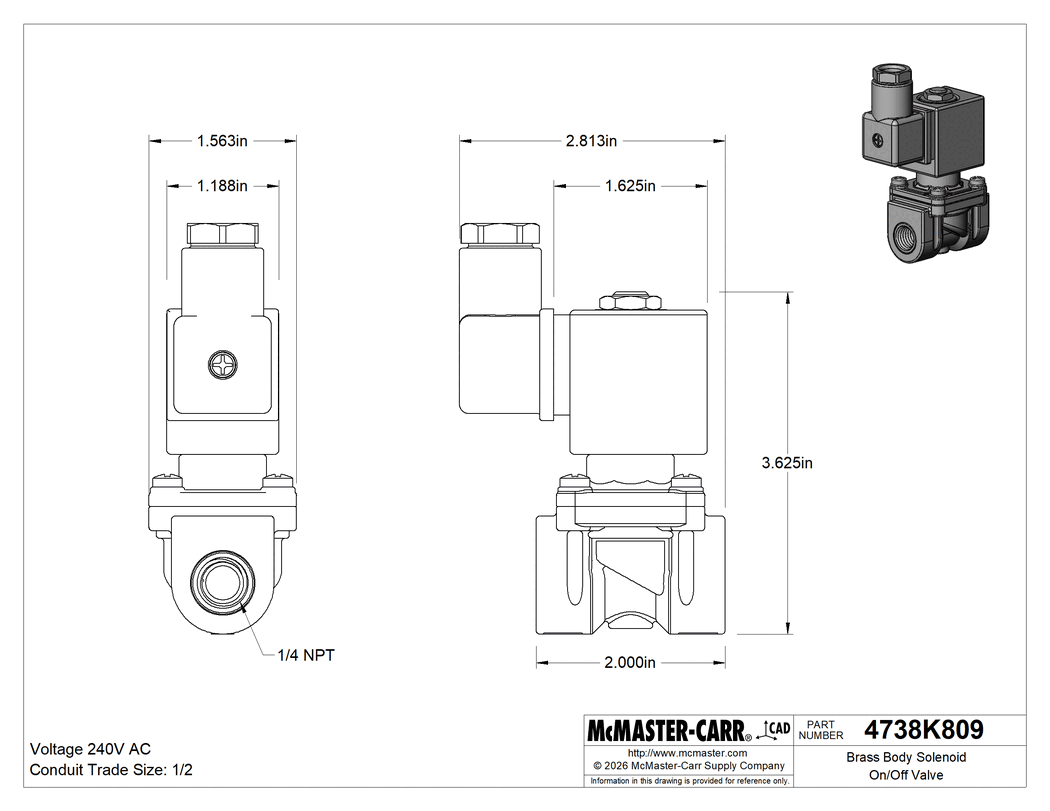

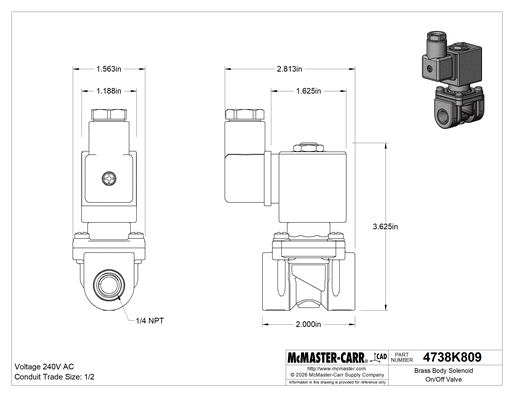

The information in this 3-D model is provided for reference only.
