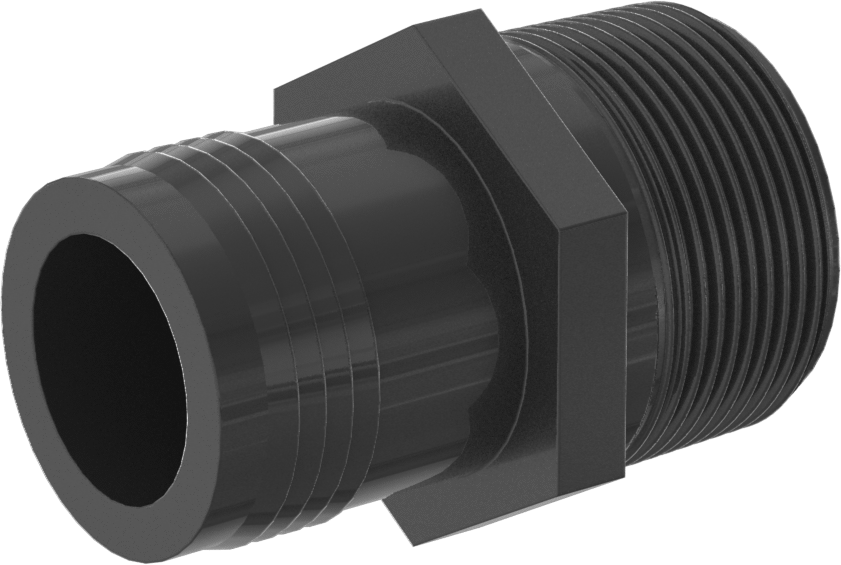

High-Pressure Plastic Pipe Fitting for Water
Adapter, 1-1/2 Barbed Male x 1-1/2 NPT Male
Shape | Straight |
Fitting Type | Adapter |
Fitting Connection | Clamp-On Barbed Male × NPT Male |
Pipe Size | |
(A) | 1 1/2 |
(B) | 1 1/2 |
Barb OD (A) | 1.65" |
Material | PVC |
Color | Dark Gray |
Maximum Pressure @ Temperature | 160 psi @ 72° F |
Attachment Type (A) | Worm-Drive Clamp |
Barb Style (A) | Standard |
Connects To | Pipe |
Environment | Food and Beverage |
Food Industry Standard | NSF/ANSI 61 |
For Pipe Material | Polyethylene |
For Pipe Flexibility | Semi-Flexible |
For Use With | Drinking Water, Water |
Length | 3 1/16" |
Minimum Temperature | Not Rated |
Maximum Temperature | 140° F |
Number of Barbs (A) | Multiple |
Performance | Chemical Resistant |
Specifications Met | ASTM D1784, ASTM D2609 |
System of Measurement | Inch |
Threading | Threaded on One End |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (11/07/2024, 242 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 391740.0000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
Use these barbed pipe fittings in residential and commercial plumbing and water supply applications. Also known as insert fittings, they have a barbed end that slides into semi-flexible plastic pipe and secures with a clamp (sold separately). Since you don't have to wait for cement to dry, they're quicker to install than socket-connect fittings. They meet ASTM D2609 specifications for barb dimensions.
To prevent leaks in threaded connections, apply a sealant to the male threads. Threaded connections can be taken apart as needed for maintenance and repair. For metal threads, use PTFE tape. For plastic threads, apply a non-hardening, plastic-compatible sealant. Tape or sealants with PTFE are not recommended for plastic-to-plastic connections. When making a threaded connection be careful not to overtighten the threads. To prevent cracks and leaks, finger tighten the fitting, then wrench-tighten one to two turns.
Note: Barbed pipe fittings are measured by pipe size, which is not an actual measured size, but rather an industry designation.
Warning: Never use plastic pipe fittings, flanges, and pipe with compressed air or gas.
NSF/ANSI 61—To adhere to safety standards for drinking water systems, use pipe that meets NSF/ANSI 61.

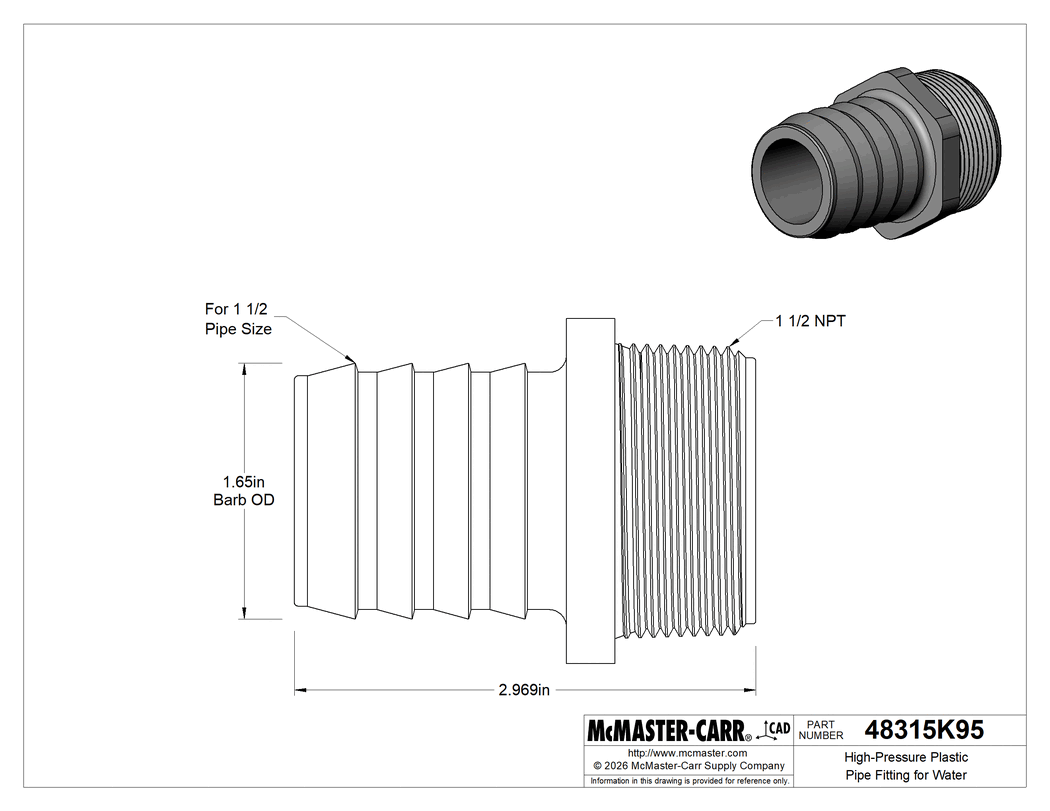

The information in this 3-D model is provided for reference only.
