Precision Extreme-Pressure 316 Stainless Steel Fitting
Bushing Reducing Adapter, 3/8 Male x 1/4 Female NPT
Pressure Rating | Extreme Pressure |
Shape | Straight |
Fitting Type | Adapter, Reducing Adapter, Bushing, Reducer |
Fitting Connection | NPT Male × NPT Female |
Material | 316 Stainless Steel |

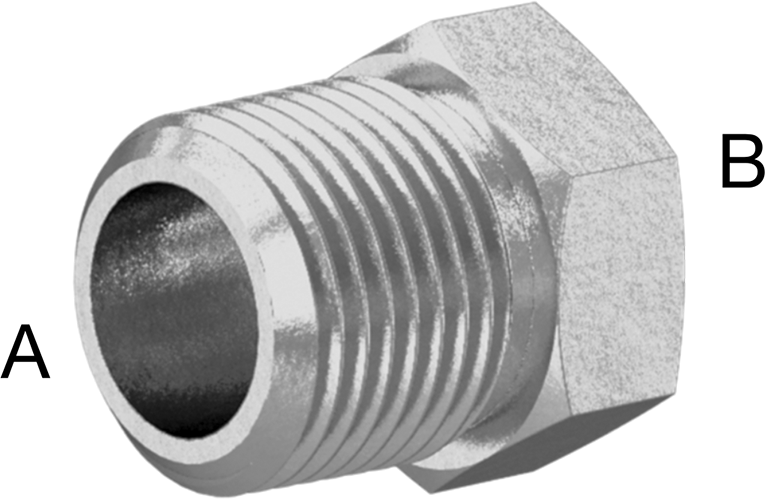

Pipe Size | |
(A) | 3/8 |
(B) | 1/4 |
Dash Size | |
(A) | 06 |
(B) | 04 |
Body Shape | Hex |
Maximum Pressure @ Temperature | 5,300 psi @ 72° F |
Maximum Steam Pressure @ Temperature | 5,300 psi @ 300° F |
Connects To | Pipe |
Fabrication | Machined |
For Use With | Hydraulic Fluid, Liquid Nitrogen, Natural Gas, Steam, Water |
Hex Width | 3/4" |
Length | 55/64" |
Performance | Chemical Resistant, Precision, Ultra Corrosion Resistant |
Specifications Met | ASME B1.20.1, ASME B31.1, ASME B31.3 |
System of Measurement | Inch |
Thread Fabrication (A) | Rolled |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | 2B999 |
REACH Compliance | REACH (EC 1907/2006) (06/27/2024, 241 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 730729.0000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
Made to tighter tolerances than other stainless steel pipe fittings, these are also known as instrumentation fittings. The male threads are rolled for extra strength in extreme-pressure applications. Fittings are commonly used to connect equipment in gas and hydraulic fluid lines.
316 Stainless Steel—Fittings are the most corrosion resistant. They stand up to wet environments, just like 304 stainless steel fittings, but unlike 304 stainless steel, they will not corrode from salt water, chlorine solutions, and chemicals.

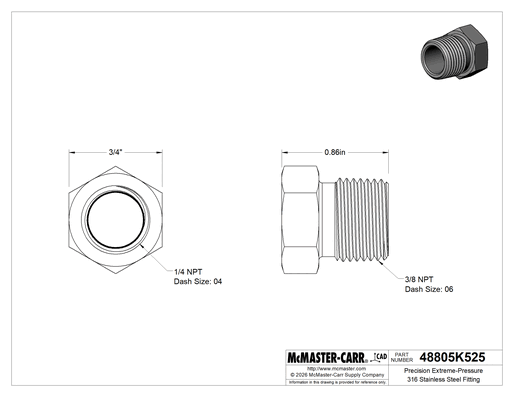

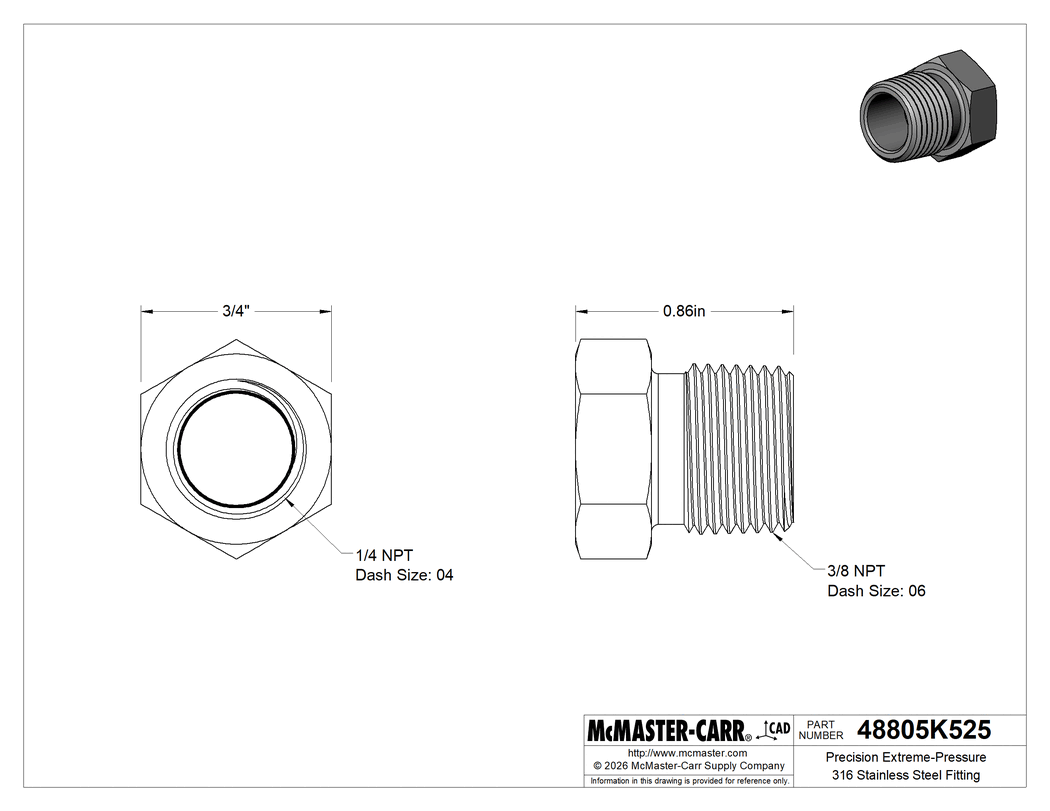

The information in this 3-D model is provided for reference only.
