    Thick-Wall PVC Plastic Pipe Fitting for Water

    Cap, 1 Pipe Size Socket-Connect Female

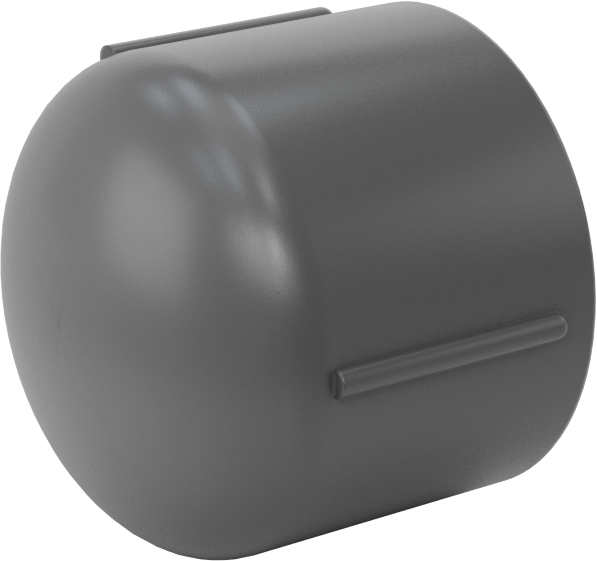

    Image of Product. Front orientation. Thick-Wall PVC Plastic Pipe Fitting for Water, Cap, 1 Pipe Size Socket-Connect Female.

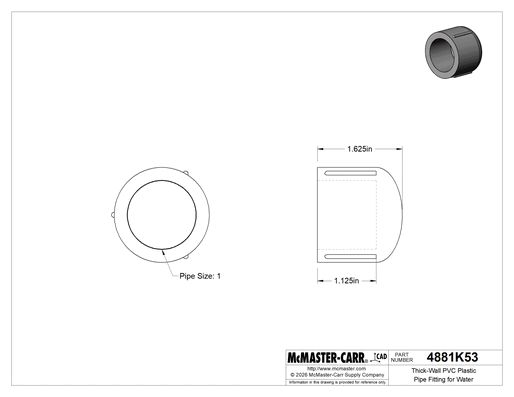

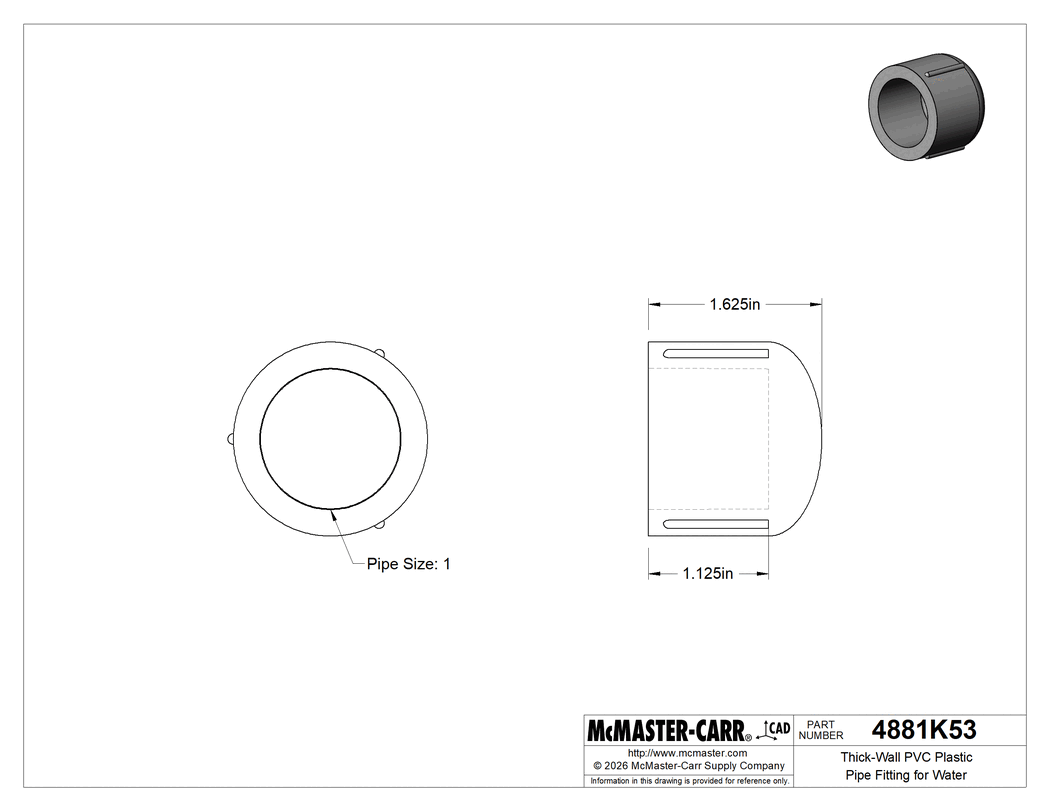

    Technical Drawing of Thick-Wall PVC Plastic Pipe Fitting for Water, Cap, 1 Pipe Size Socket-Connect Female.
    Image of Product. Back orientation. Thick-Wall PVC Plastic Pipe Fitting for Water, Cap, 1 Pipe Size Socket-Connect Female.

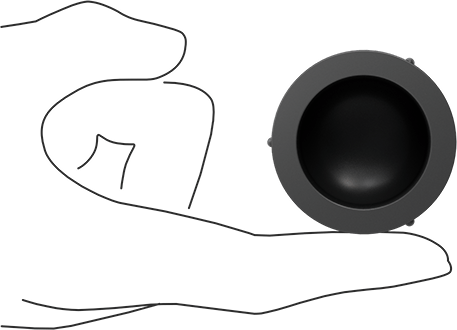

    Image of Product. Side1 orientation. Contains SizingReference. Thick-Wall PVC Plastic Pipe Fitting for Water, Cap, 1 Pipe Size Socket-Connect Female.
    2-D PDF
    00000 each
    4881K53
    In stock
    4881K53
    00000 each
    Each
    In stock
    Learn more about our Solidworks Add-In
    Wall Thickness Rating

    Thick

    Shape

    Cap and Plug

    Fitting Type

    Cap

    Fitting Connection

    Cement Socket Female

    Pipe Size

    1

    Pipe Schedule

    80

    Material

    PVC

    Color

    Dark Gray

    Maximum Pressure @ Temperature

    Not Rated

    Connects To

    Pipe

    Environment

    Food and Beverage

    Food Industry Standard

    NSF/ANSI 61

    For Flange

    Class

    150

    Material

    PVC

    For Pipe Material

    PVC

    For Pipe Schedule

    80

    For Use With

    Drinking Water, Water

    Length

    1 5/8"

    Minimum Temperature

    Not Rated

    Maximum Temperature

    140° F

    Maximum Vacuum @ Temperature

    26 in. Hg @ 72° F

    Performance

    Chemical Resistant

    Relative Vacuum Rating

    Standard

    Socket Depth

    1 1/8"

    Specifications Met

    ASTM D1784

    System of Measurement

    Inch

    Country of Origin

    United States

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    REACH (EC 1907/2006) (11/07/2024, 242 SVHC) Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    391740.0000

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    Yes

    Connect these fittings to Schedule 80 pipe. Thicker and stronger than standard-wall fittings, they can handle industrial applications such as water processing, wastewater treatment, and irrigation. Fittings are plastic so they're naturally rust-resistant. They meet ASTM specifications and testing requirements for material quality.

    Note: For fittings that are not rated for pressure, you can use the pressure rating of the plastic pipe as a reference. Threaded fittings are limited to 50% of the rated pressure of the pipe.

    Warning: Never use plastic pipe fittings, flanges, and pipe with compressed air or gas.

    Cement-Socket Fitting Connection—Attach socket-connect ends to unthreaded pipe or another socket-connect fitting with a PVC primer and cement (also known as solvent weld).

    NSF/ANSI 61—To adhere to safety standards for drinking water systems, use pipe that meets NSF/ANSI 61.
