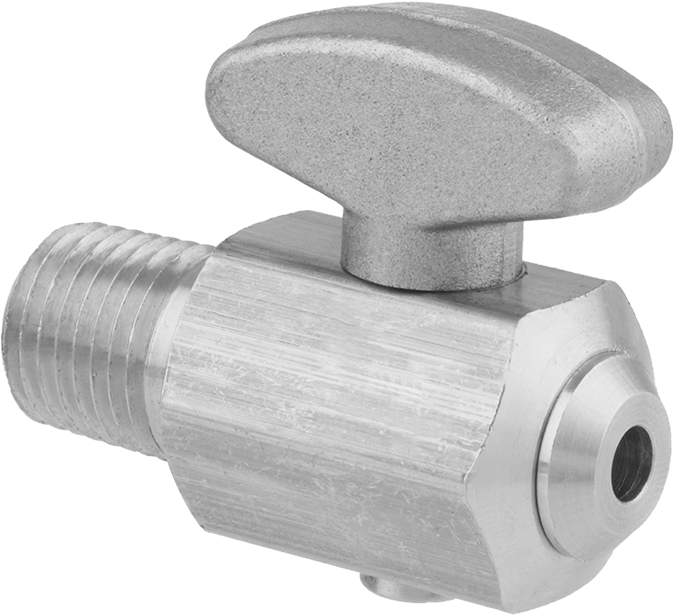

Drain Valve
Wing Nut Handle, Internal Seal and 1/4 NPT Male Inlet
Handle Style | T-Handle |
Valve Operation | Handle |
Handle Location | Side |
Shape | Straight |
Seal Location | Internal |
Inlet | |
Connection Port | Pipe |
Connection | Threaded |
Pipe Size | 1/4 |
Thread Type | NPT |
Gender | Male |
Outlet Connection Port | Drain |
Handle Material | Brass |
Body Material | Brass |
For Use With | Water, Oil |
Maximum Pressure @ Temperature | 150 psi @ 250° F |
Temperature Range | -65° F to 250° F |
Height | 1 3/4" |
Overall Width | 1 7/16" |
Valve Function | On/Off |
Valve Type | Stop Cock |
Country of Origin | China |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (02/04/2026, 253 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant with Exemptions |
RoHS Exemptions | 6(c) |
Schedule B Number | 848180.1095 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
Also known as stop cocks, install these valves on your tank for easy draining of air or fluid.
T-Handle—Valves with a T-handle have two flat arms that provide more leverage and torque than thumb-screw handles and are more comfortable to grip than wing-nut handles.
Side Handle—Side handles are out of the way of the flow, so your hand and the handle stay dry.
Internal Seal—Valves with an internal seal have shorter stems than those with external seals, so they fit shorter clearances. However, they’re more likely to introduce contaminants to the tank from debris collected on the exposed threads.
Brass Handle—Brass handles won’t corrode.
Brass Body—Valves with a brass body won’t corrode when venting air or draining water—even in wet or humid environments.

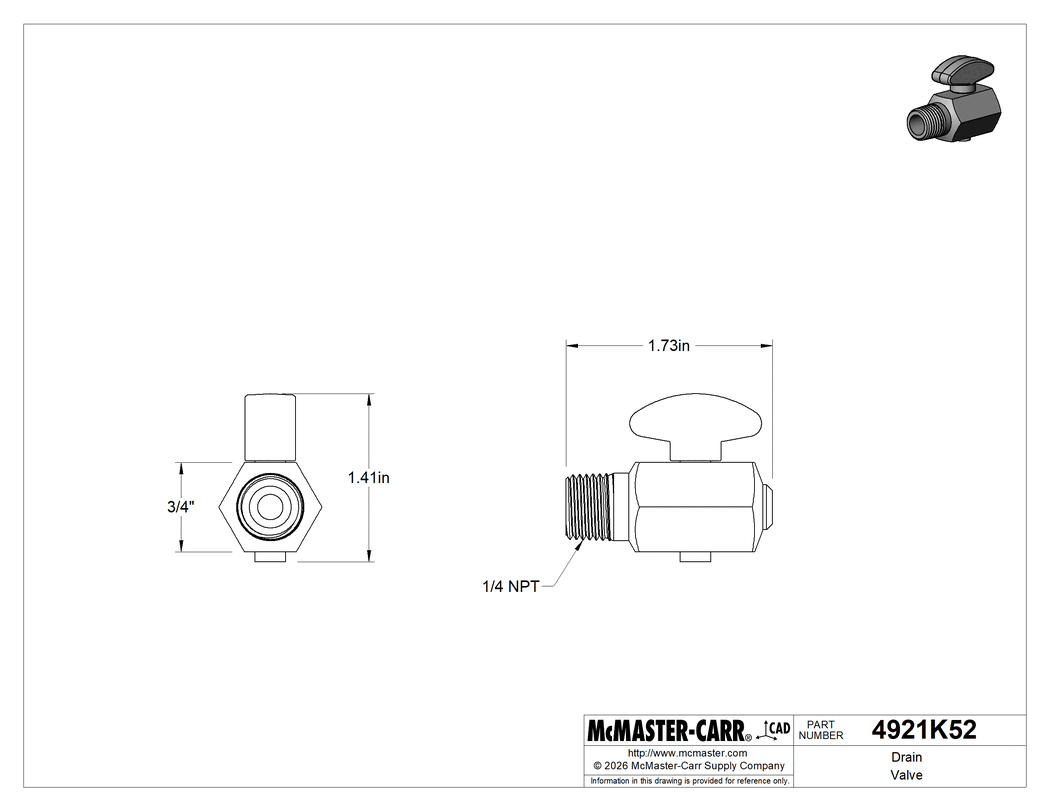

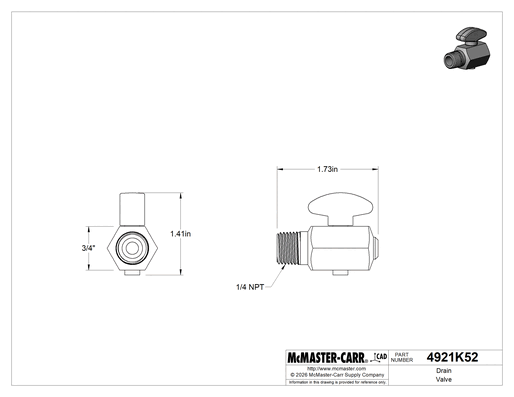

The information in this 3-D model is provided for reference only.
