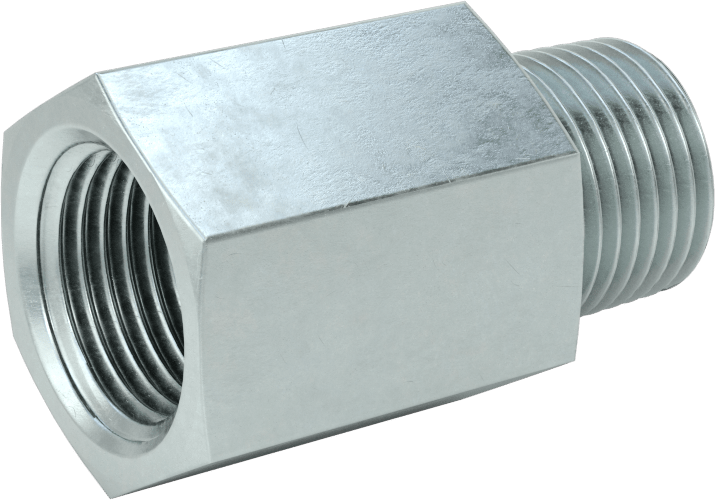

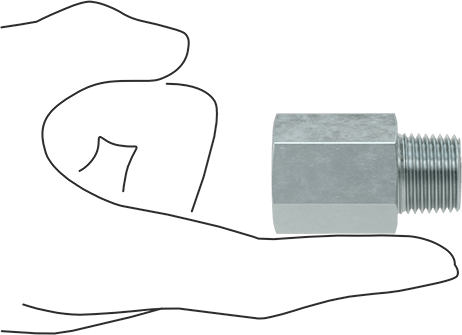

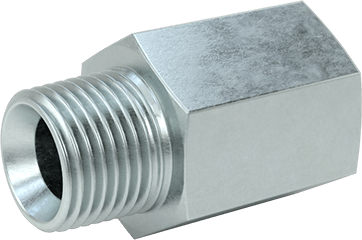

Compact Extreme-Pressure Steel Pipe Fitting
Straight Adapter, 1/2 NPT Female x 1/2 BSPT Male
Pressure Rating | Extreme Pressure |
Shape | Straight |
Fitting Type | Adapter |
Fitting Connection | NPT Female × BSPT Male |
Pipe Size | |
(A) | 1/2 |
(B) | 1/2 |
Dash Size | |
(A) | 08 |
(B) | 08 |
Body Shape | Hex |
Material | Zinc-Plated Steel |
Maximum Pressure @ Temperature | 3,500 psi @ 72° F |
Connects To | Pipe |
Fabrication | Machined |
For Use With | Air, Hydraulic Fluid, Oil, Water |
Hex Width | 1 1/16" |
Length | 1 7/8" |
System of Measurement | Inch |
Threading | Threaded on Both Ends |
Country of Origin | Italy, New Zealand, Spain |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | Not Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 730799.2000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
The strongest steel fittings we offer, these can withstand extreme-pressure applications.
Note: The maximum pressure listed for Class 6000 fittings is for conditions where there are no sudden changes in pressure or velocity. Please refer to ASME B16.11 to determine the specific maximum operating pressure for your application.
Zinc-Plated Steel—Zinc-plated steel fittings have better corrosion resistance than plain steel fittings.

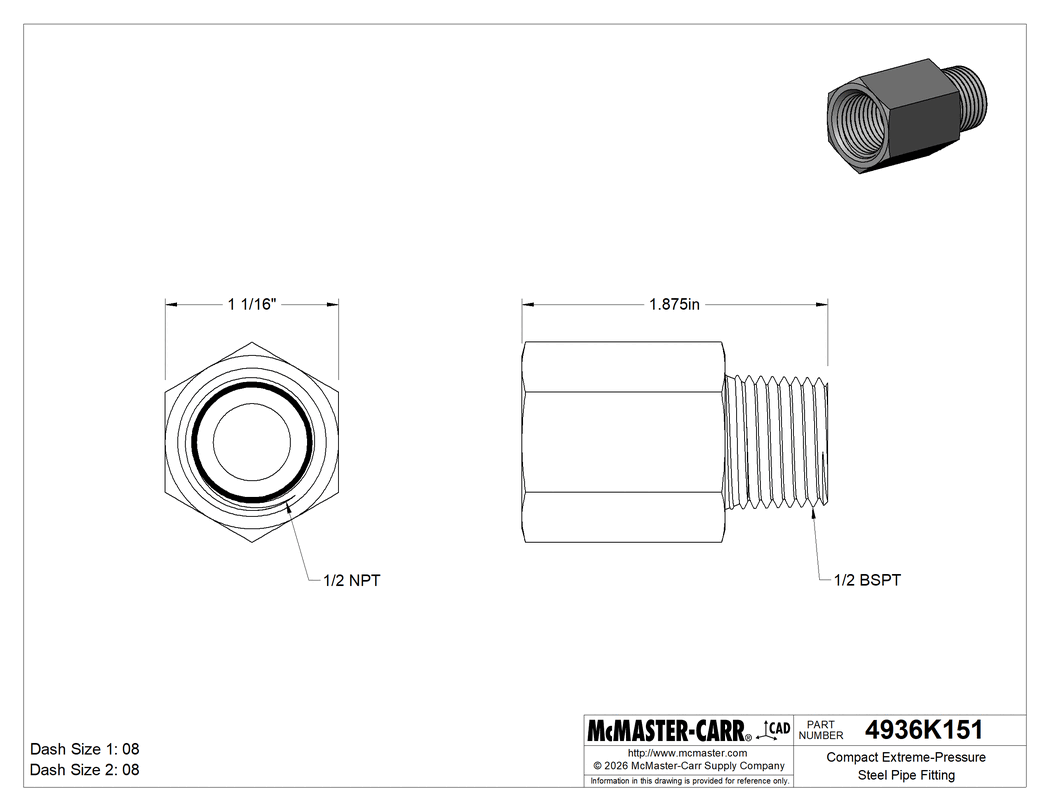

The information in this 3-D model is provided for reference only.
