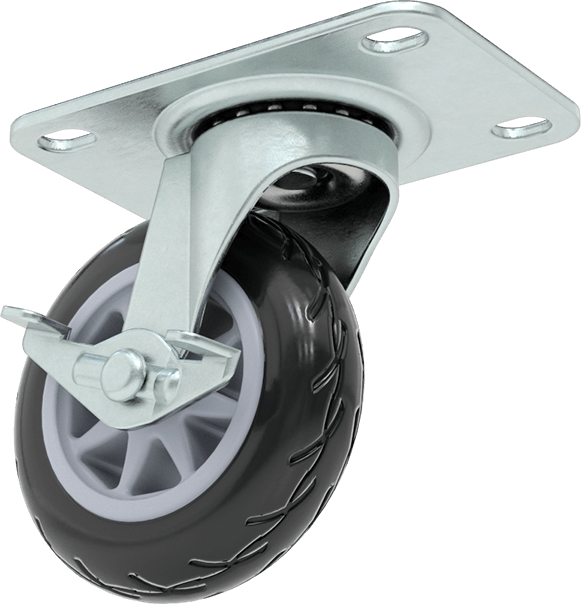

Caster with 3-3/4" x 2-1/2" Mounting Plate

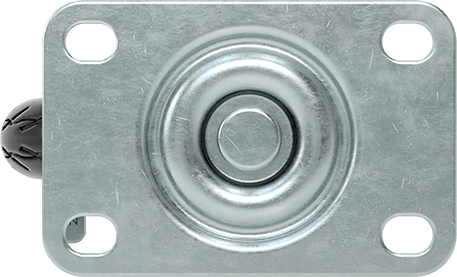

Mounting Plate | |
Length | 3 3/4" |
Width | 2 1/2" |
Style | 1 |
Wheel | |
Diameter | 3" |
Width | 1" |
Number of | 1 |
Nonmarking Wheels | No |
Wheel Color | Black |
Wheel Type | Flat-Free |
Wheel/Tread Material | Rubber |
Hardness Rating | Soft |
Hardness | Durometer 70A |
Caster Type | Swivel |
Brake/Lock Type | Wheel Brake |
Mount Height | 3 1/2" |
Weight Capacity per Caster | 120 lb. |
Tread Style | Round |
Wheel Bearing | |
Type | Plain |
Material | Acetal |
Seal Type | Open |
Plain Type | Sleeve |
Mounting Holes | |
Center-to-Center Width | 1 3/4" |
Center-to-Center Length (A) | 3" |
Center-to-Center Length (B) | 2 3/4" |
For Screw Size | 5/16" |
Frame | |
Fabrication | Formed |
Material | Zinc-Plated Steel |
Caster Swivel Construction | Kingpin |
Swivel Bearing | |
Type | Ball |
Seal Type | Open |
Construction | Dual Raceway |
Wheel Core Material | Polypropylene |
Application | Shock Absorbing |
Brake | |
Location | Right Side |
Activation | Foot Pedal |
For Surface Type | Asphalt, Bar Grating, Brick, Concrete, Hardwood, Linoleum, Steel, Tile |
Mount Type | Plate |
Mounting Fasteners Included | No |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 871690.0000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
The solid rubber wheels on these casters cushion as well as pneumatic wheels but won't go flat. Use them on smooth or rough surfaces.
Wheels either have sleeve or ball bearings. Sleeve bearings prevent wear to the wheel bore. Ball bearings in the wheel provide easy rolling. Shielded ball bearings also resist dust and debris.
Swivel Casters—Swivel casters have dual-raceway bearings for the smoothest swiveling.
Wheel Brake—Casters with wheel brake apply pressure to the wheel to stop movement with a press of the foot pedal.

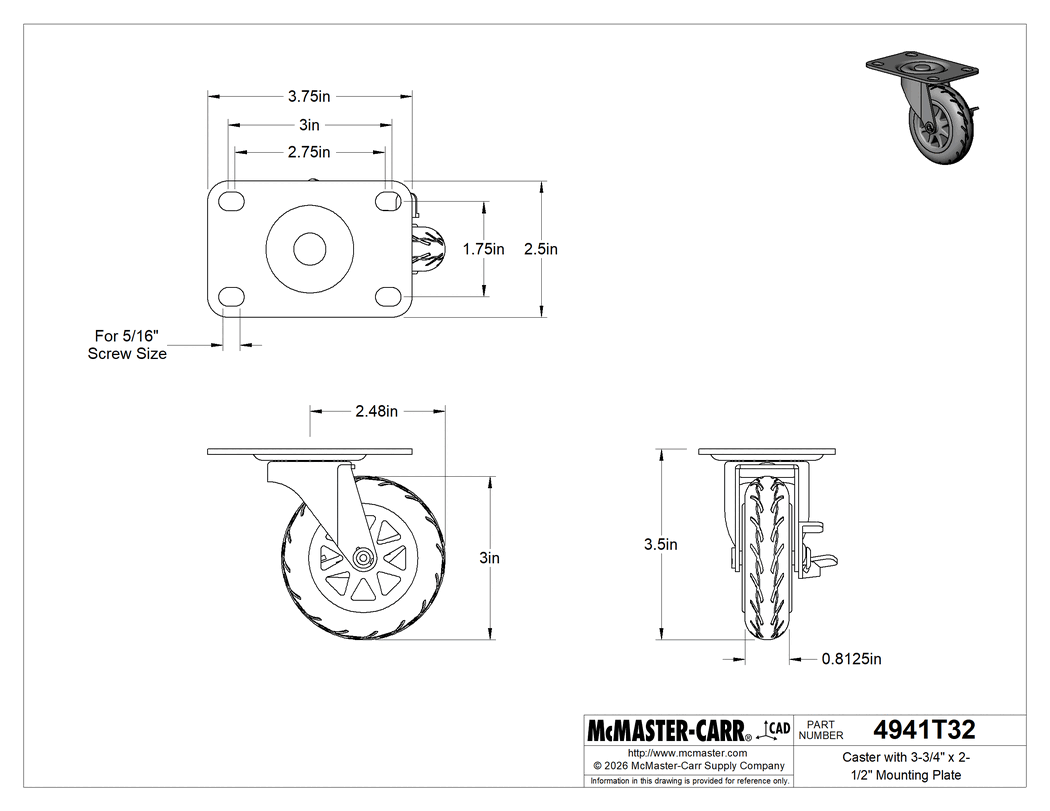

The information in this 3-D model is provided for reference only.
