Cobalt Steel Drill Bit
TiN-Coated, Jobbers', 3.3 mm Size, 64 mm Overall Length
Material | Cobalt Steel |
Length Class | Jobbers |
Drill Bit Size | 3.3 mm |
Decimal Size Equivalent | 0.1299" |
Overall Length | 64 mm |
Maximum Drilling Depth | 36.1 mm |
Shank | |
Size | 3.3 mm |
Type | Round |
Drill Bit Point Type | Split |
Manufacturer | Dormer Pramet |
Bit Style | Fluted |
Finish | Titanium Nitride (TiN) Coated |
Flute Direction | Right Hand |
Flute Type | Spiral |
For Use On | Fiberglass, Iron, Nickel, Stainless Steel, Steel, Titanium, Hardened Steel |
Number of Flutes | 2 |
Point Angle | 135° |
Specifications Met | DIN 338 |
System of Measurement | Metric |
Country of Origin | Brazil |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (06/27/2024, 241 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 820750.4030 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
Tough and wear resistant, cobalt steel bits last at least twice as long as high-speed steel. They can also run up to 25% faster at higher temperatures without being damaged on hard materials, such as nickel.
Jobbers' Length—These bits have the balance of rigidity and length needed for most applications.
Titanium Nitride (TiN) Coated—Drill at higher speeds and last longer than uncoated and oxide-coated bits, especially on tough materials like hardened steel and nickel.
Prepare hole
Align and center
Reduce friction

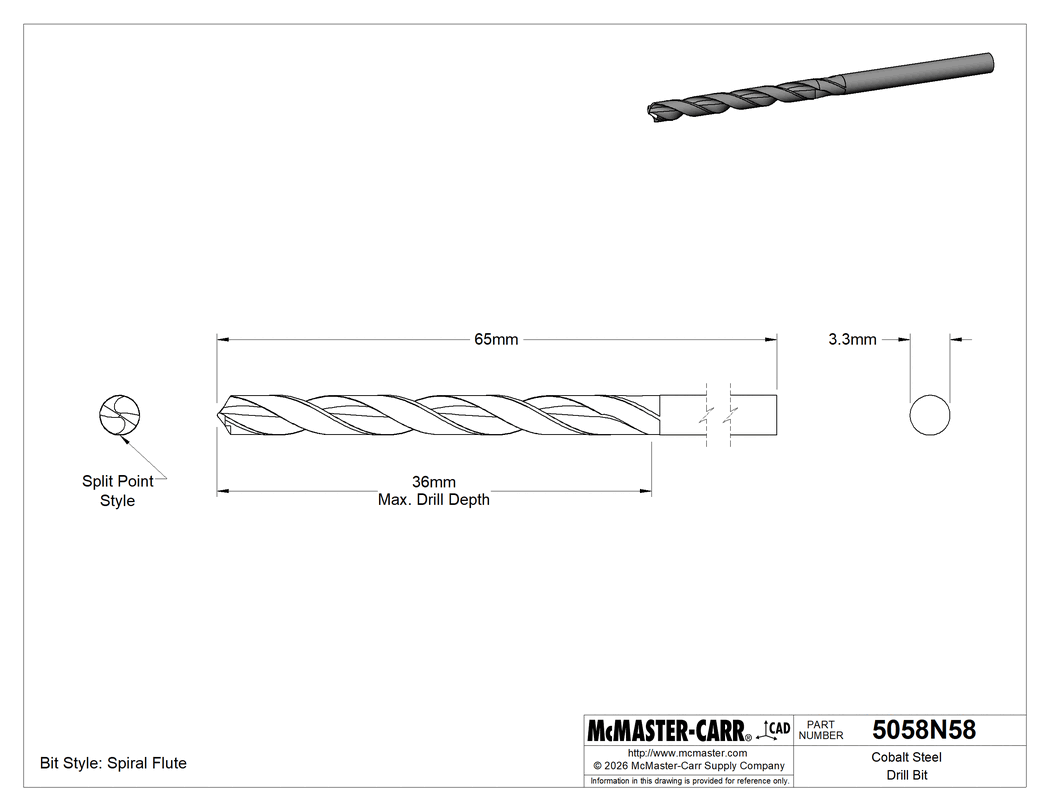

The information in this 3-D model is provided for reference only.
