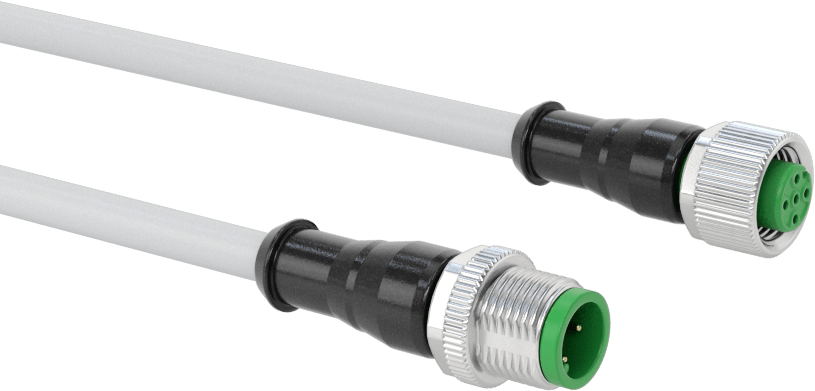

M12 Cord
Double Shielded, Plug x Socket, A Code, 4 Poles, 32' Long
Plug | |
Electrical Connection | M12 |
Coding | A |
Number of Poles | 4 |
Gender | Male |
End Shape | Straight |
Housing Thread Size | M12 × 1 mm |
Face Diameter | 0.3" |
Housing Connection Method | Screw Together |
Housing Thread Location | External |
Housing Thread Type | Metric |
Socket | |
Electrical Connection | M12 |
Coding | A |
Number of Poles | 4 |
Gender | Female |
End Shape | Straight |
Housing Thread Size | M12 × 1 mm |
Face Diameter | 0.3" |
Housing Connection Method | Screw Together |
Housing Thread Location | Internal |
Housing Thread Type | Metric |
Shielding | Double Shielded |
Length | 32 ft. |
Voltage | 30V AC/30V DC |
Current | 4 amp |
Outer Jacket | |
Material | PVC |
Color | Gray |
Enclosure Rating | IP65, IP67 |
Certification | C-UL Listed, CSA Certified, CSA-US Certified, UL Listed |
Cord OD | 0.21" |
Environment | Washdown, Dusty, Submersible, Wet |
Flexibility | Flexible |
Outlet Type | Single |
Performance | Vibration Resistant, Interference Shielding |
Shield Type | Braid, Foil |
Signal Type | Control, Power |
Wire Leads | |
Number of Wires | 4 |
Color | Black, Blue, Brown, White |
Gauge (AWG) | 22 |
Temperature | -10° F to 185° F |
Voltage Type | AC, DC |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | Not Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant with Exemptions |
RoHS Exemptions | 6(c) |
Schedule B Number | 853669.4020 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
Related Products | |
These cords run the automated world, from robot arms and photoelectric sensors to PLCs and IO-Link devices. The original metric circular cord, they continue to be the standard today. They screw together tightly to protect against contaminants and hold firm against high vibration. Each one has a coding that indicates a unique keyway, preventing mismated connection errors before they happen. The coding also tells you whether a cord can send power, control, or both, reducing the need for multiple cords.

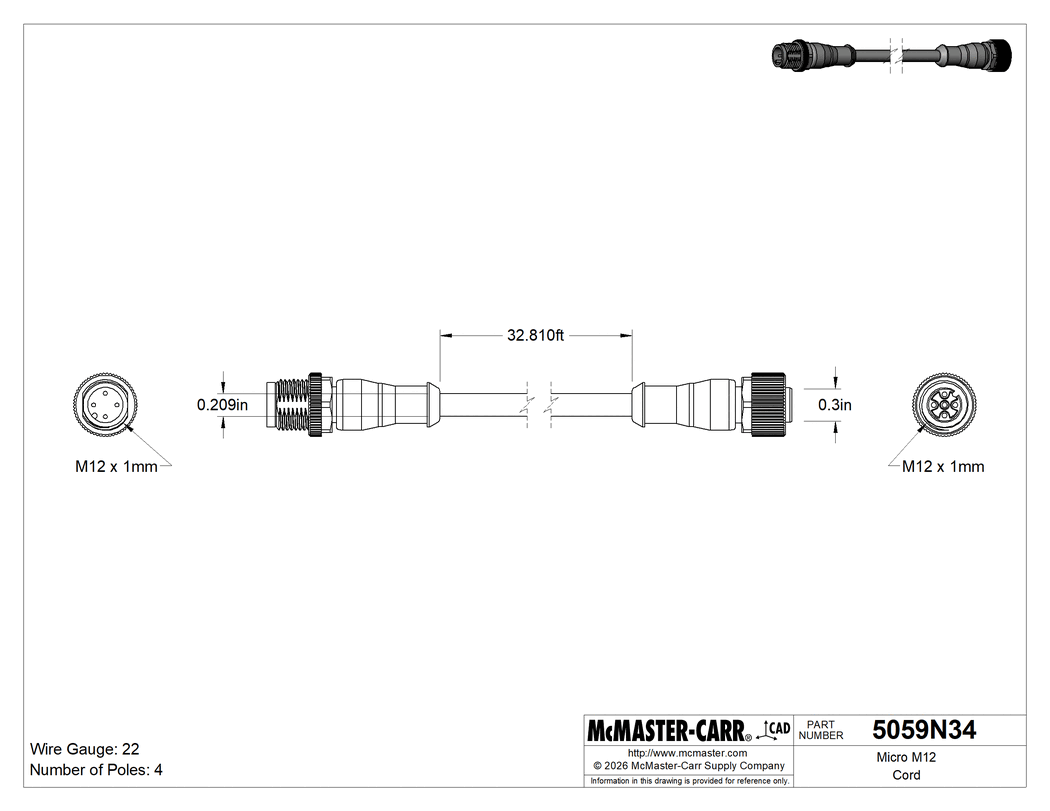

The information in this 3-D model is provided for reference only.
