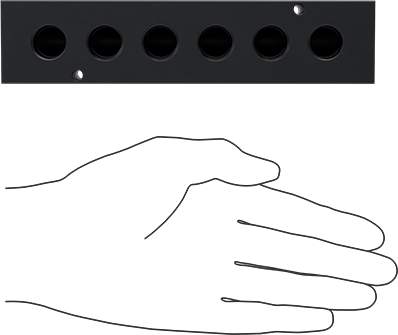

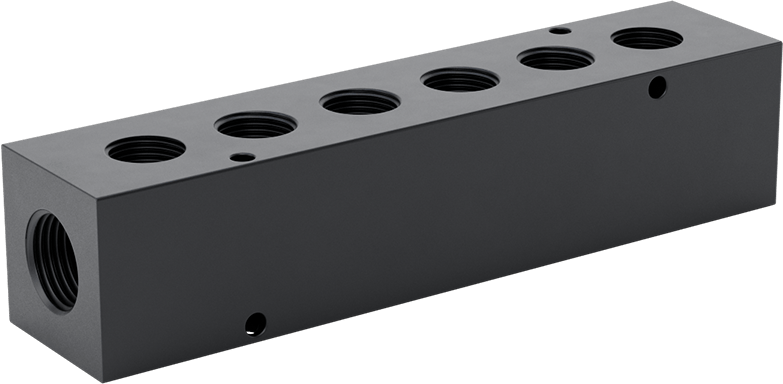

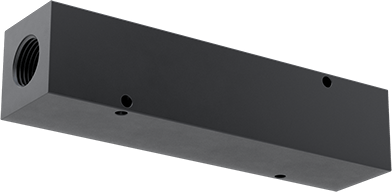

Aluminum Right-Angle Flow Rectangular Manifold
6 Outlets on One Side, 1/2 NPT x 3/8 BSPP
Material | Anodized Aluminum |
Inlet | |
Connection Port | Inlet |
Connects to | Pipe |
Pipe Size | 1/2 |
Fitting Connection | Threaded |
Thread Type | NPT |
Gender | Female |
Dash Size | 08 |
Outlet | |
Connection Port | Outlet |
Connects to | Pipe |
Pipe Size | 3/8 |
Fitting Connection | Threaded |
Thread Type | BSPP |
Gender | Female |
Dash Size | 06 |
Outlet Location | One Side |
Outlet Spacing | Standard |
Number of Outlets | 6 |
Length | 6 3/4" |
Width | 1 1/2" |
Height | 1 1/2" |
Outlet Center-to-Center | 1" |
Color | Black |
Temperature Range | -65° F to 250° F |
Max. Pressure | Air: 1,000 psi @ 72° F |
Maximum Vacuum @ Temperature | 27 in. Hg @ 72° F |
Fitting Type | Reducing Adapter |
For Screw Size | No. 10 |
Manifold Flow Pattern | Right Angle |
Manifold Type | Single Section |
Mount Type | Screw On |
Mounting | |
Hole Threading | Unthreaded |
Hole Diameter | 0.2" |
Mounting Hardware Included | No |
Number of Inlets | 2 |
Relative Vacuum Rating | Standard |
Shape | Manifold |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (02/04/2026, 253 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 761699.5195 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
Distribute air or fluid to multiple locations from a single supply source with these manifolds. They are also known as headers. They have mounting holes, so you can mount from the top or side.
Anodized Aluminum—Anodized aluminum manifolds have a black finish.

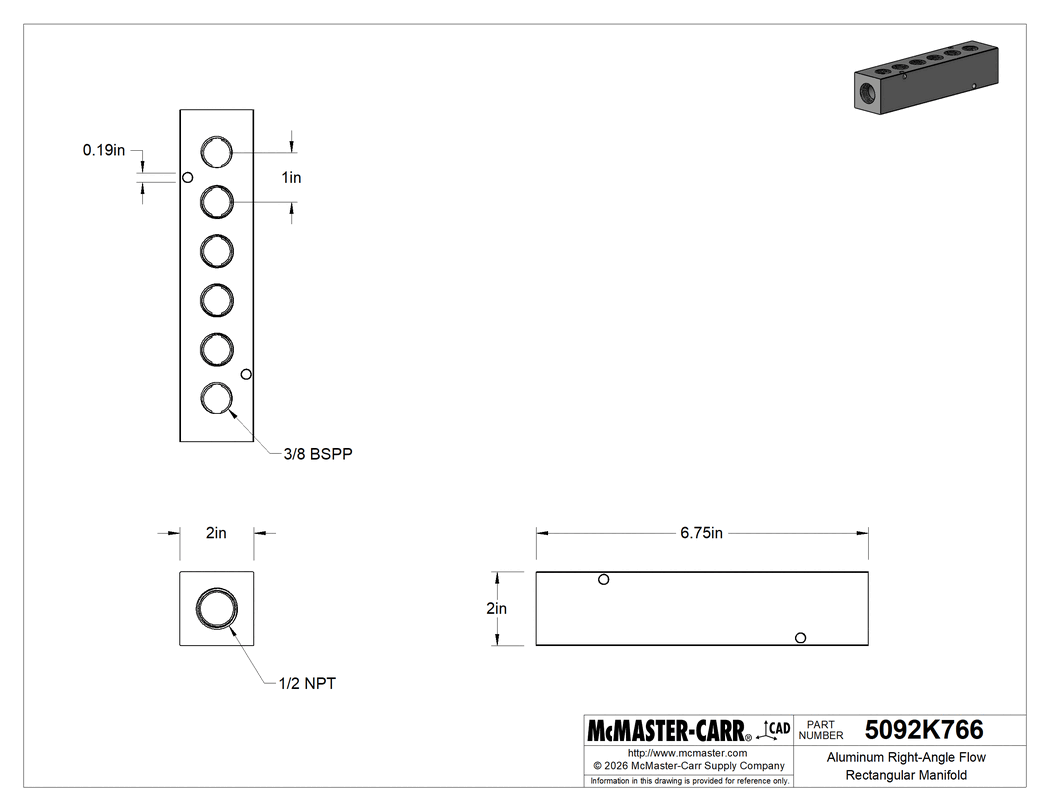

The information in this 3-D model is provided for reference only.
