    Extreme-Pressure 316 Stainless Steel Pipe Fitting

    90 Degree Elbow Connector, 1/4 NPTF Male

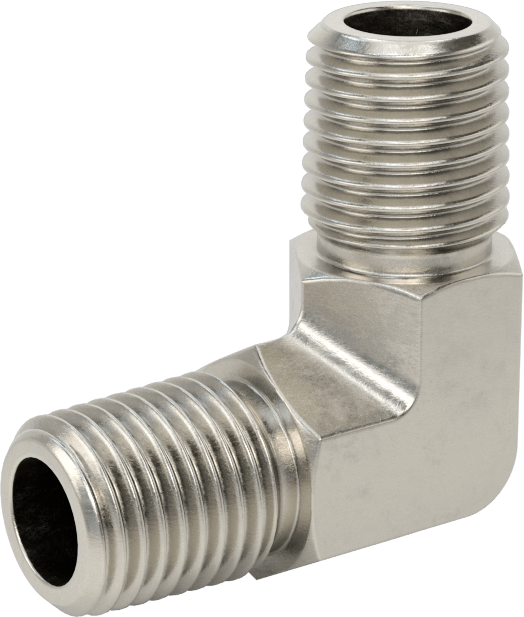

    Image of Product. Front orientation. Extreme-Pressure 316 Stainless Steel Pipe Fitting, 90 Degree Elbow Connector, 1/4 NPTF Male.

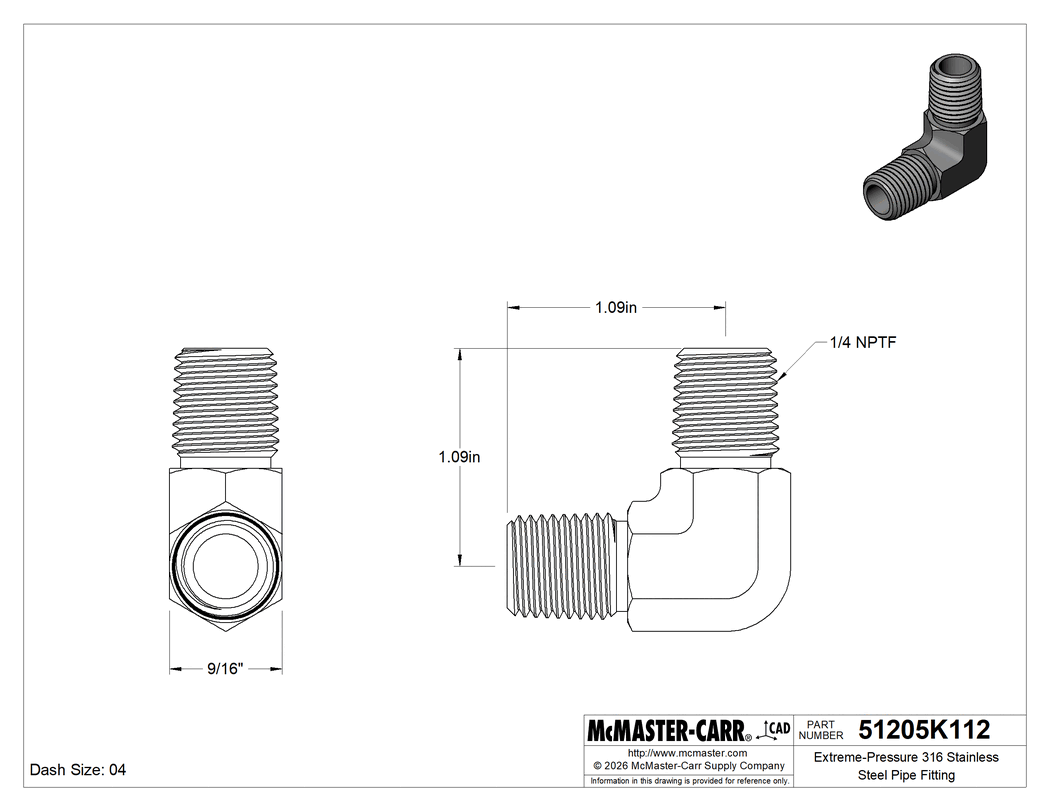

    Technical Drawing of Extreme-Pressure 316 Stainless Steel Pipe Fitting, 90 Degree Elbow Connector, 1/4 NPTF Male.
    Image of Product. Back orientation. Extreme-Pressure 316 Stainless Steel Pipe Fitting, 90 Degree Elbow Connector, 1/4 NPTF Male.

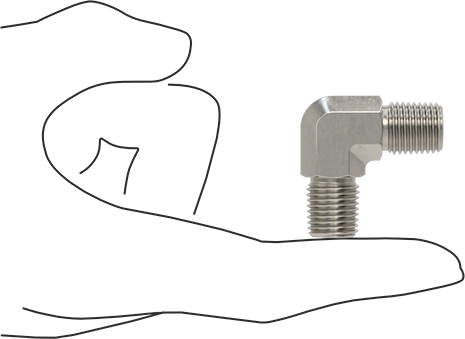

    Image of Product. Side1 orientation. Contains SizingReference. Extreme-Pressure 316 Stainless Steel Pipe Fitting, 90 Degree Elbow Connector, 1/4 NPTF Male.
    2-D PDF
    000000 each
    51205K112
    In stock
    51205K112
    000000 each
    Each
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Pressure Rating

    Extreme Pressure

    Shape

    90° Elbow

    Fitting Type

    Connector

    Fitting Connection

    NPTF Male

    Material

    316 Stainless Steel

    Pipe Size

    1/4

    Dash Size

    04

    Maximum Pressure @ Temperature

    6,000 psi @ 72° F

    Maximum Steam Pressure @ Temperature

    6,000 psi @ 300° F

    Connects To

    Pipe

    Fabrication

    Forged

    For Use With

    Hydraulic Fluid, Oil, Steam, Water

    Performance

    Chemical Resistant, Ultra Corrosion Resistant

    Specifications Met

    ASTM A182

    Country of Origin

    United States

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    2B999

    REACH Compliance

    Not Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    730722.5000

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    No

    With the strength to handle extreme pressures, these fittings can be used to connect equipment in hydraulic fluid lines.

    NPTF Thread—NPTF (Dryseal) threads are compatible with NPT threads.

    316 Stainless Steel—Fittings are the most corrosion resistant. They stand up to wet environments, just like 304 stainless steel fittings, but unlike 304 stainless steel, they will not corrode from salt water, chlorine solutions, and chemicals.

    The information in this 3-D model is provided for reference only.
