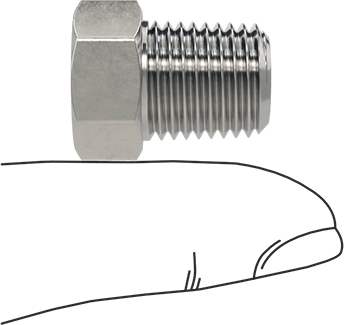

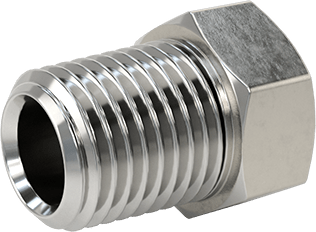

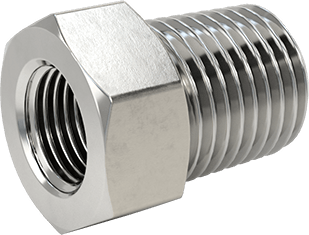

Extreme-Pressure 316 Stainless Steel Pipe Fitting
Bushing Adapter, 1/4 NPTF Male x 1/8 NPTF Female
Pressure Rating | Extreme Pressure |
Shape | Straight |
Fitting Type | Adapter, Reducing Adapter, Bushing, Reducer |
Fitting Connection | NPTF Male × NPTF Female |
Material | 316 Stainless Steel |
Pipe Size | |
(A) | 1/4 |
(B) | 1/8 |
Dash Size | |
(A) | 04 |
(B) | 02 |
Body Shape | Hex |
Maximum Pressure @ Temperature | 6,000 psi @ 72° F |
Maximum Steam Pressure @ Temperature | 6,000 psi @ 300° F |
Connects To | Pipe |
Fabrication | Machined |
For Use With | Hydraulic Fluid, Oil, Steam, Water |
Hex Width | 5/8" |
Length | 55/64" |
Performance | Chemical Resistant, Ultra Corrosion Resistant |
Specifications Met | ASTM A479 |
System of Measurement | Inch |
Country of Origin | Taiwan |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | 2B999 |
REACH Compliance | Not Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 730729.0000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
With the strength to handle extreme pressures, these fittings can be used to connect equipment in hydraulic fluid lines.
NPTF Thread—NPTF (Dryseal) threads are compatible with NPT threads.
316 Stainless Steel—Fittings are the most corrosion resistant. They stand up to wet environments, just like 304 stainless steel fittings, but unlike 304 stainless steel, they will not corrode from salt water, chlorine solutions, and chemicals.

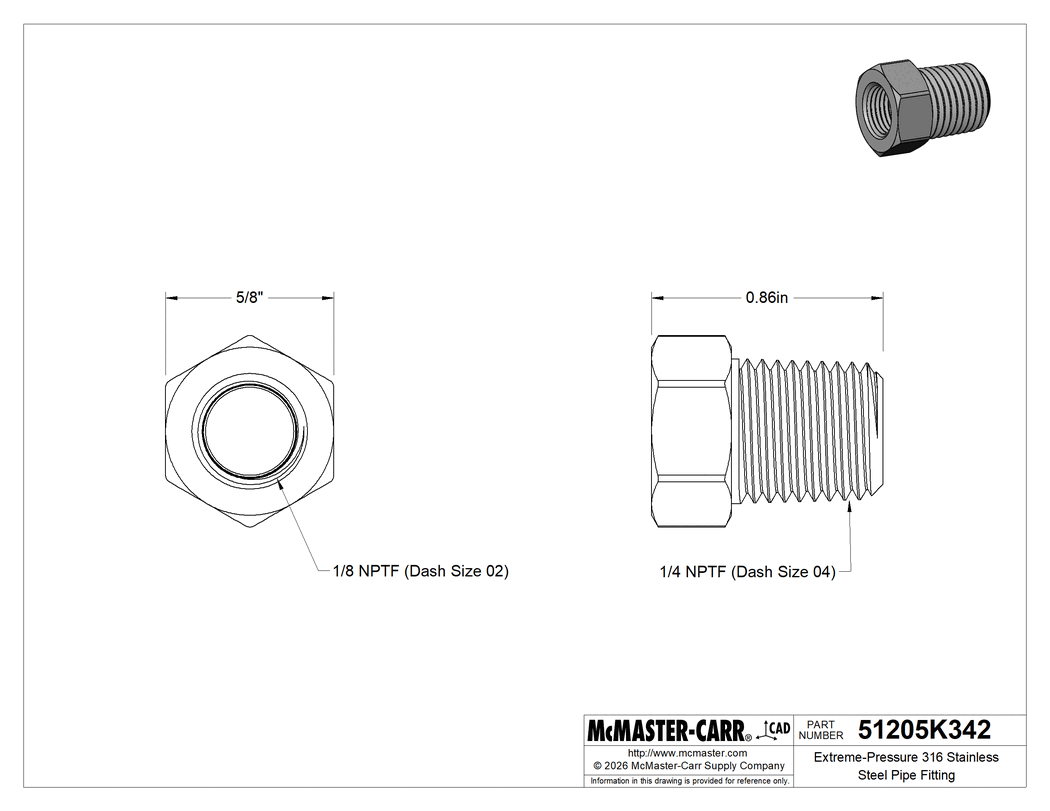

The information in this 3-D model is provided for reference only.
