    Extreme-Pressure 316 Stainless Steel Pipe Fitting

    Adapter, M14 x 1.5 mm Female, 9/16"-18 UN/UNF Male

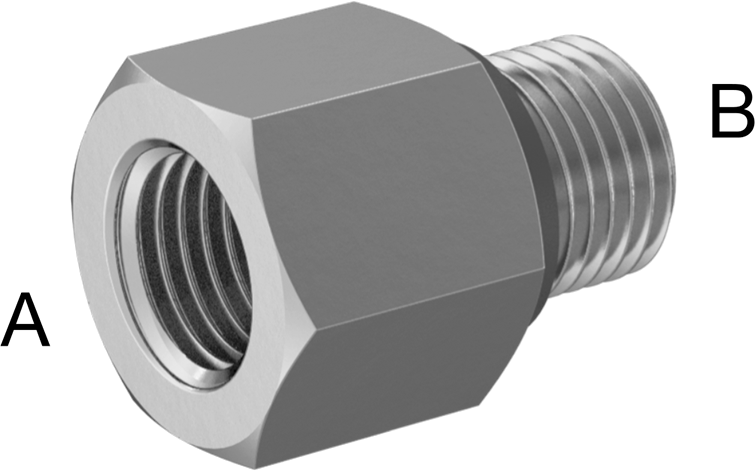

    Image of Product. Front. Front orientation. Contains Annotated. Extreme-Pressure 316 Stainless Steel Pipe Fitting, Adapter, M14 x 1.5 mm Female, 9/16"-18 UN/UNF Male.
    Front

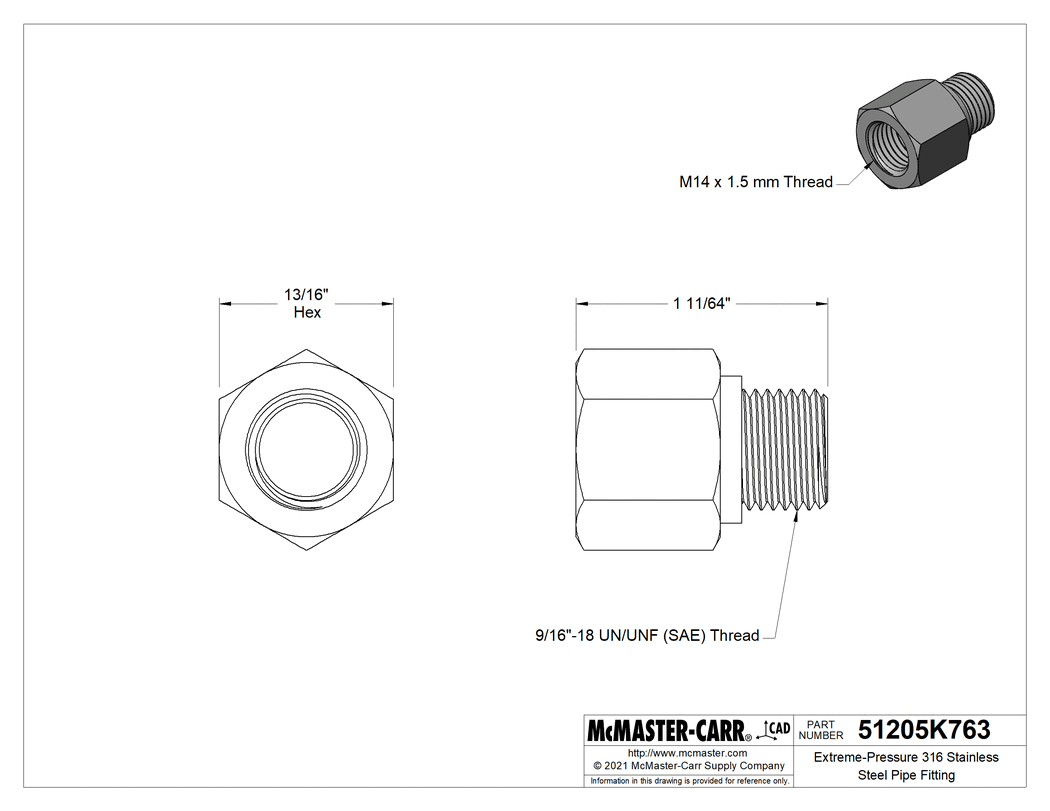

    Technical Drawing of Extreme-Pressure 316 Stainless Steel Pipe Fitting, Adapter, M14 x 1.5 mm Female, 9/16"-18 UN/UNF Male.

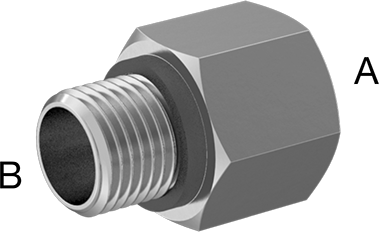

    Image of Product. Back. Back orientation. Contains Annotated. Extreme-Pressure 316 Stainless Steel Pipe Fitting, Adapter, M14 x 1.5 mm Female, 9/16"-18 UN/UNF Male.
    Back

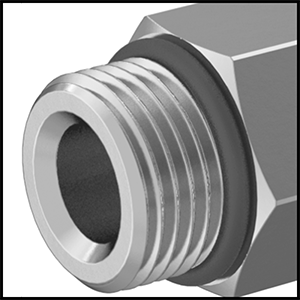

    Image of Specification. BSPP, Metric, and UN/UNF (SAE Straight) Male Threads with Gasket. Front orientation. ZoomedIn view. Contains Border. Extreme-Pressure 316 Stainless Steel Pipe Fitting, Adapter, M14 x 1.5 mm Female, 9/16"-18 UN/UNF Male.
    BSPP, Metric, and UN/UNF (SAE Straight) Male Threads with Gasket
    2-D PDF
    000000 each
    51205K763
    In stock
    51205K763
    000000 each
    Each
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Pressure Rating

    Extreme Pressure

    Shape

    Straight

    Fitting Type

    Adapter

    Gasket Included

    Yes

    Fitting Connection

    Metric Female × UN/UNF (SAE Straight) Male

    Material

    316 Stainless Steel

    Thread Size

    (A)

    M14 × 1.5 mm

    (B)

    9/16"-18

    Dash Size (B)

    06

    Body Shape

    Hex

    Maximum Pressure @ Temperature

    6,000 psi @ 72° F

    Gasket Material

    Buna-N

    Connects To

    Pipe

    Fabrication

    Machined

    For Use With

    Hydraulic Fluid (Petroleum Based), Oil, Water

    Hex Width

    13/16"

    Length

    1 11/64"

    Performance

    Chemical Resistant, Ultra Corrosion Resistant

    System of Measurement

    Inch, Metric

    Threading

    Threaded on Both Ends

    Country of Origin

    United States

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    2B999

    REACH Compliance

    Not Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    730729.0000

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    No

    With the strength to handle extreme pressures, these fittings can be used to connect equipment in hydraulic fluid lines.

    UN/UNF (SAE Straight) Thread—Also known as O-ring boss threads.

    316 Stainless Steel—Fittings are the most corrosion resistant. They stand up to wet environments, just like 304 stainless steel fittings, but unlike 304 stainless steel, they will not corrode from salt water, chlorine solutions, and chemicals.
