Hold-Down Toggle Clamp
Open Arm, Steel, 600 lbs. Holding Capacity, 3-3/8" Overall Length

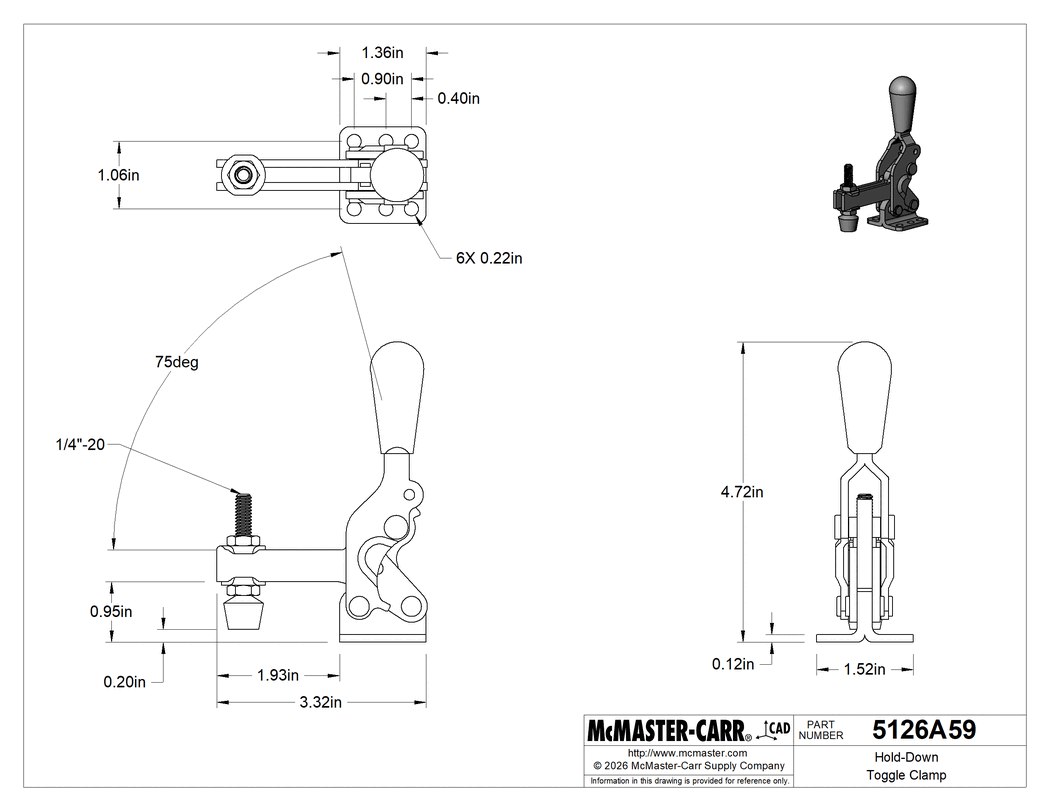

2-D PDF
000000 each
5126A59
In stock
5126A59
000000 each
Each
Select a compatible file type: Parasolid
Available for Solidworks 2017 or newer.

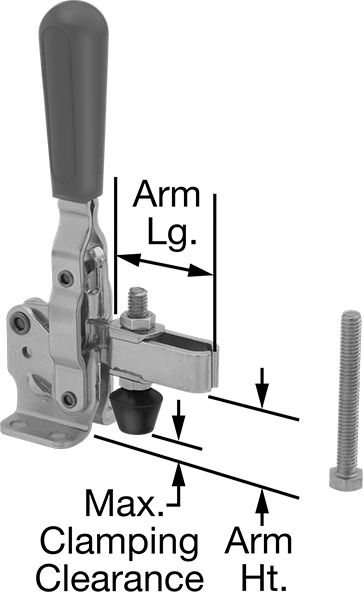

Arm | |
Height | 15/16" |
Length | 1 15/16" |
Opening Angle | 75° |
Style | Open |
Body Material | Steel |
Holding Capacity | 600 lb. |
Maximum Clamping Clearance | 3/16" |
When Clamped | |
Overall Height | 4 3/4" |
Overall Length | 3 3/8" |
Handle Position | Up |
Holding Screws | |
Number of | 2 |
Tip Type | Rigid |
Tip Material | Steel, Rubber |
Thread Size | 1/4"-20 |
Clamp Type | Hold Down |
Clamping Action | Hold Down |
Grip Style | Cushion |
Handle | |
Style | Lever |
Material | Plastic |
Mount Type | Screw On |
Mounting Fasteners Included | No |
Mounting Holes | |
Number of | 6 |
Diameter | 7/32" |
System of Measurement | Inch |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | Not Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 820570.0090 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
Lock workpieces flat against your surface with a lever motion. These hold-down toggle clamps keep parts stationary for machining, welding, or assembly.
With Open Arm—Clamps with open arm allow you to move the holding screw to any position along the arm. Position the screw closest to the base to achieve maximum holding capacity. Capacity decreases by as much as 65% when the screw is positioned at the end of the arm.
The information in this 3-D model is provided for reference only.
