Low-Profile Hold-Down Toggle Clamp
Open Arm, Steel, 360 lbs. Holding Capacity

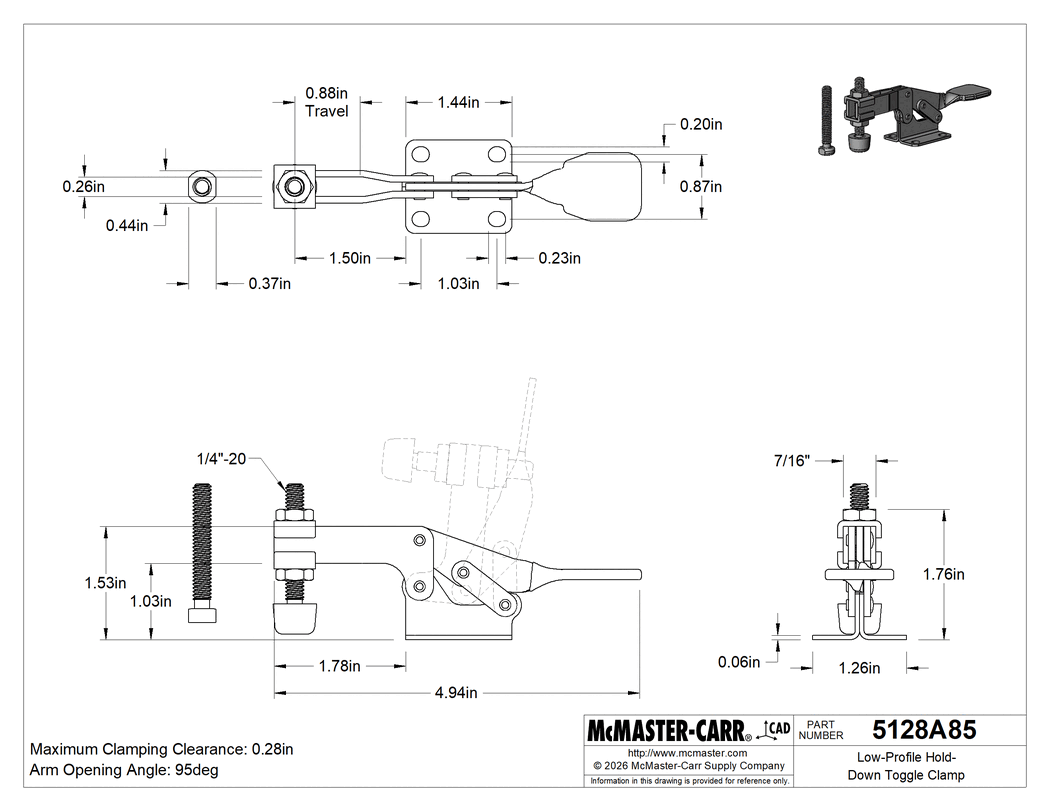

2-D PDF
000000 each
5128A85
In stock
5128A85
000000 each
Each
Select a compatible file type: Parasolid
Available for Solidworks 2017 or newer.

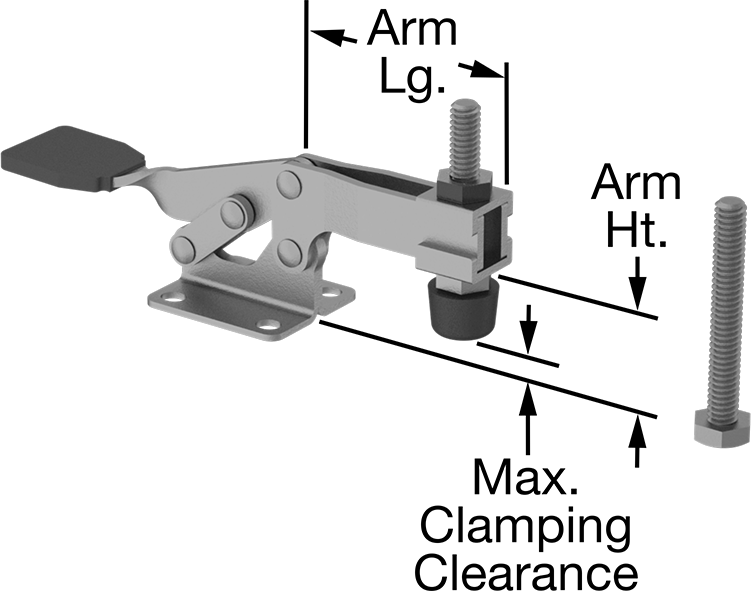

Arm | |
Height | 1" |
Length | 1 7/8" |
Opening Angle | 95° |
Style | Open |
Body Material | Steel |
Holding Capacity | 360 lb. |
Maximum Clamping Clearance | 9/32" |
When Clamped | |
Overall Height | 1 1/2" |
Overall Length | 5" |
Handle Position | Horizontal |
Holding Screws | |
Number of | 2 |
Tip Type | Rigid |
Tip Material | Steel, Rubber |
Thread Size | 1/4"-20 |
Clamp Type | Hold Down |
Clamping Action | Hold Down |
Grip Style | Cushion |
Handle | |
Style | Lever |
Material | Plastic |
Mount Type | Screw On |
Mounting Fasteners Included | No |
Mounting Holes | |
Number of | 4 |
Length | 0.23" |
Width | 0.2" |
System of Measurement | Inch |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | Not Compliant |
RoHS Compliance | Not Compliant |
Schedule B Number | 820570.0090 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
The handle secures in a horizontal position for more clearance above the clamp than standard hold-down toggle clamps.
With Open Arm—Clamps with open arm allow you to move the holding screw to any position along the arm. To achieve maximum holding capacity, position the screw closest to the base. Capacity decreases by as much as 65% when the screw is positioned at the end of the arm.
The information in this 3-D model is provided for reference only.
