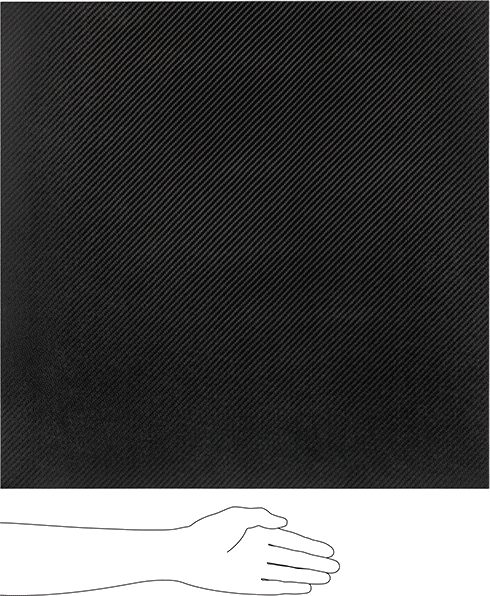

Rigid Lightweight Carbon Fiber Sheet
1/16" Thick, 24" x 24"
Width | 24" |
Width Tolerance | 0" to 1/4" |
Length | 24" |
Length Tolerance | -1/4" to 1/4" |
Thickness | 1/16" |
Thickness Tolerance | -0.008" to 0.008" |
Pattern | Checked |
Appearance | Matte |
Fiber Layup Orientation | 0°/90° |
Color | Black |
Temperature Range | -65° F to 180° F |
Tensile Strength | 125,000 psi to 150,000 psi |
Fiber Tensile Stiffness | 57 msi to 63 msi (High Modulus) |
Impact Strength | Not Rated |
Hardness | Not Rated |
For Use Outdoors | No |
Application | Multipurpose |
Backing Type | Plain |
Carbon Fiber Construction | Bidirectional |
Clarity | Opaque |
Composite Tensile Stiffness | 15.2 msi |
Composite Tensile Stiffness Rating | Good |
Compressive Strength | Not Rated |
Density | 0.056 lb/in³ |
Dielectric Strength | Not Rated |
Flatness Tolerance | 0.010"/1 ft. |
Flexibility | Rigid |
Flexural Strength | 100,000 psi to 150,000 psi |
Hardness Rating | Not Rated |
Material | Carbon Fiber |
Performance | Extreme Strength, High Strength, Lightweight |
Shape | Sheet |
Texture | Smooth |
Tolerance Rating | Standard |
Warning Message | Physical and mechanical properties are not guaranteed. They are intended only as a basis for comparison and not for design purposes. |
Water Absorption | 2% |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | Not Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 681513.0000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
Additional Specifications |
Almost as stiff as steel and a fraction of the weight, these carbon fiber sheets are often used for structural framing, machinery components, and robotics. Known for its use in the aerospace industry—where a balance of weight and strength is critical—carbon fiber is lightweight, so it reduces the stress and wear on motorized parts and extends the life of machinery. These sheets have layers that alternate fibers in two directions, so they resist bending at the edges.

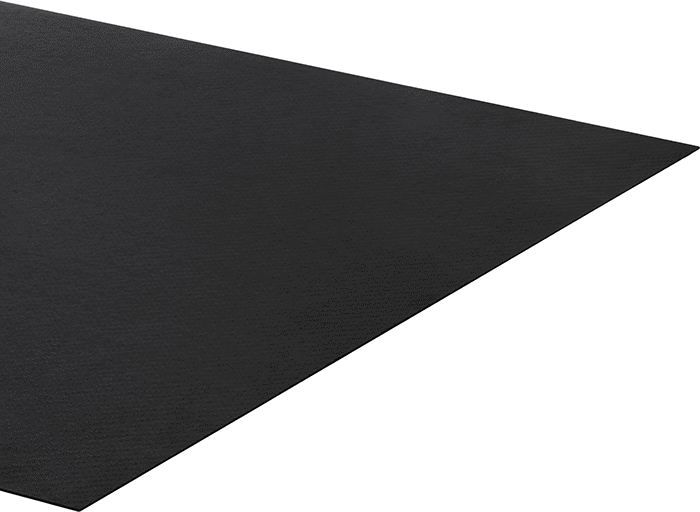

The checked pattern on these sheets gives them a classic carbon-fiber look and makes them easy to machine because the pattern keeps fibers from splintering when the sheets are cut. They are matte, so they do not reflect light and are ready to paint.

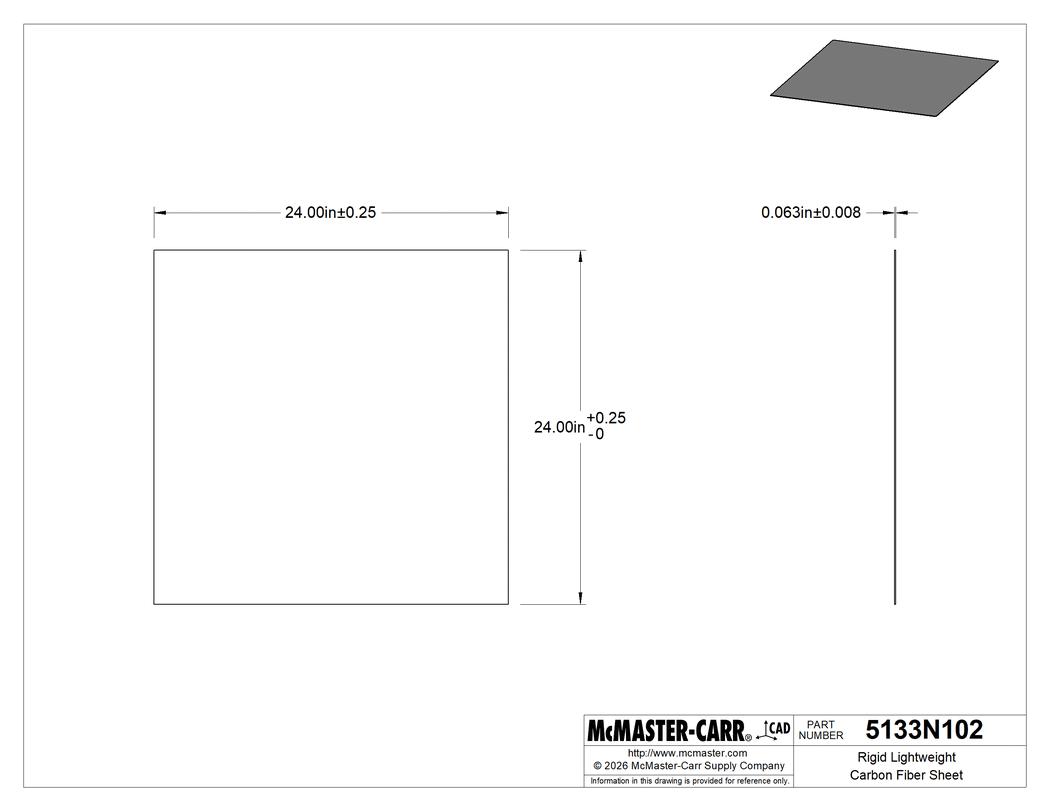

The information in this 3-D model is provided for reference only.
