    Long-Life Filter Cartridge

    for Particles in Water, Solid, 20" High, 1 Micron

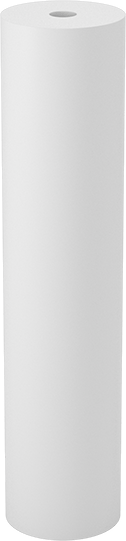

    Image of Product. Front orientation. Long-Life Filter Cartridge, for Particles in Water, Solid, 20" High, 1 Micron.

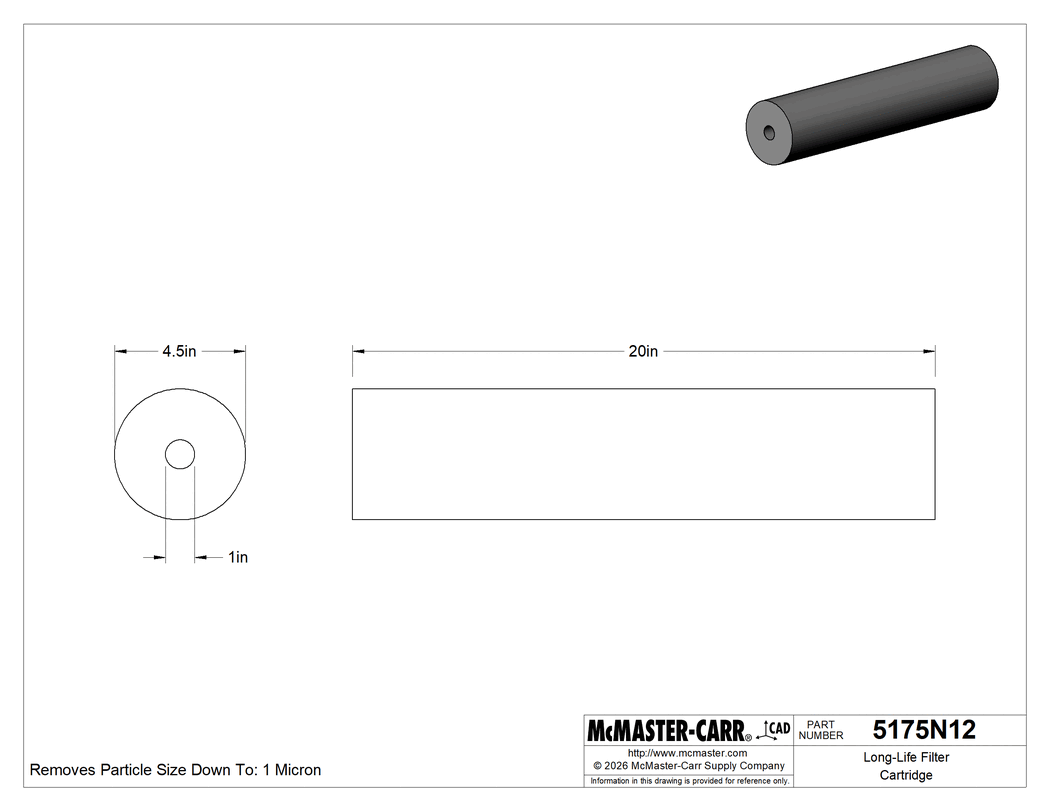

    Technical Drawing of Long-Life Filter Cartridge, for Particles in Water, Solid, 20" High, 1 Micron.
    Image of Product. Front orientation. Long-Life Filter Cartridge, for Particles in Water, Solid, 20" High, 1 Micron.

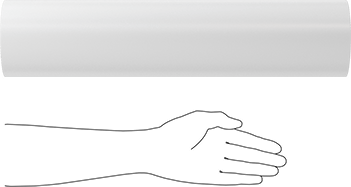

    Image of Product. Side1 orientation. Contains SizingReference. Long-Life Filter Cartridge, for Particles in Water, Solid, 20" High, 1 Micron.
    2-D PDF
    000000 each
    5175N12
    In stock
    5175N12
    000000 each
    Each
    In stock
    Learn more about our Solidworks Add-In
    Material

    Polypropylene

    Construction

    Solid

    Height

    20"

    OD

    4 1/2"

    ID

    1"

    Removes Particle Size Down To

    1 μm

    Maximum Flow Rate

    20 gpm

    Maximum Temperature

    140° F

    End Type

    Open on Both Ends

    Environment

    Food and Beverage

    Food Industry Standard

    NSF/ANSI 42

    For Reducing

    Particles

    For Use With

    Water

    Performance

    Long Life

    Country of Origin

    China

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    REACH (EC 1907/2006) (02/04/2026, 253 SVHC) Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    842121.0000

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    No

    Replace your cartridge less frequently. Use these cartridges in a filter housing to reduce contaminants in your water line.

    Solid—Solid cartridges are constructed from one piece of material for high strength and durability.

    The information in this 3-D model is provided for reference only.
