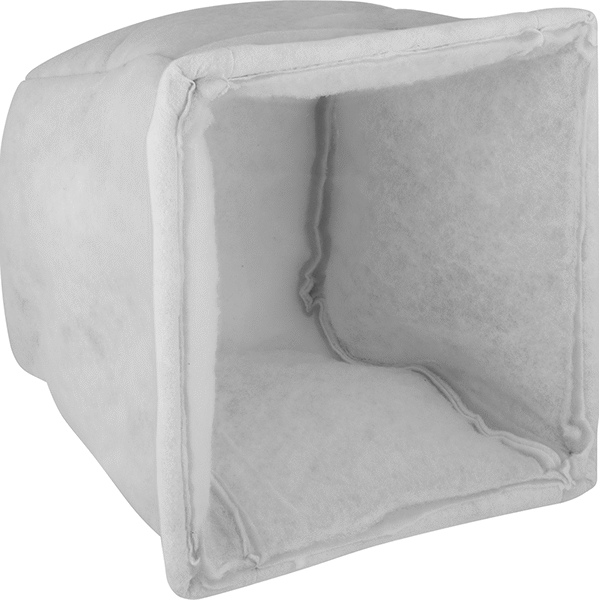

    Cube Air Filter

    15" Deep, 20 x 20 HVAC Filter Trade Size

    Image of Product. Front orientation. Cube Air Filter, 15" Deep, 20 x 20 HVAC Filter Trade Size.

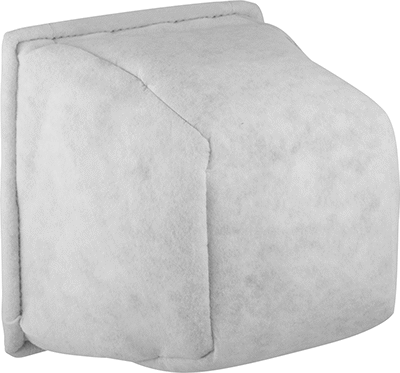

    Image of Product. Back orientation. Cube Air Filter, 15" Deep, 20 x 20 HVAC Filter Trade Size.

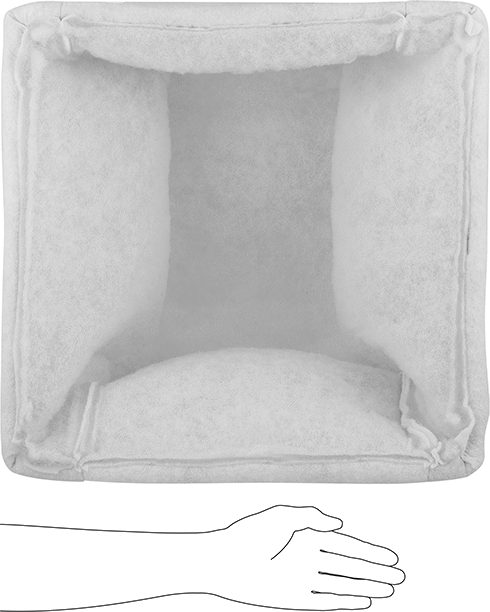

    Image of Product. Front orientation. Contains SizingReference. Cube Air Filter, 15" Deep, 20 x 20 HVAC Filter Trade Size.
    000000 each
    5298N15
    In stock
    5298N15
    000000 each
    Each
    In stock
    Construction

    Unpleated

    Filtering Method

    Fiber

    Filter Type

    Bag

    Bag Filter Type

    Cube

    Depth

    15"

    HVAC Filter Trade Size

    20 × 20

    MERV Filter Rating

    8

    Maximum Temperature

    180° F

    Specifications Met

    UL 900

    Air Filter Performance

    Medium Efficiency

    Application

    Final Filtering, Prefiltering

    Filter Efficiency @

    1 Micron

    10%

    3 Microns

    50%

    Material

    Polyester/Polyethylene

    For Removing

    Dust, Particles

    For Use With

    Air

    Frame Material

    Steel

    Performance

    Snug Fit

    Removes Particle Size Down To

    3 μm

    Reusable

    No

    Surface Treatment

    Tacky

    Country of Origin

    United States

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    REACH (EC 1907/2006) (11/07/2024, 242 SVHC) Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    591190.0080

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    Yes

    Stop dirty air from leaking around the edges of your filter. These filters are self-sealing thanks to the filter material that fully encloses the metal frame. This design also means you don't need separate mounting hardware. These filters also last longer than standard pleated filters because their large surface area traps more particles.
