Plastic Pipe Fitting for Food and Beverage
Straight Reducer, 1/2 NPT Female x 3/8 NPT Female
Shape | Straight |
Fitting Type | Reducer |
Fitting Connection | NPT Female × NPT Female |
Pipe Size | |
(A) | 1/2 |
(B) | 3/8 |
Body Shape | Hex |
Material | Nylon |
Color | Blue |
Maximum Pressure @ Temperature | 200 psi @ 72° F |
Connects To | Pipe |
Environment | Food and Beverage |
Food Industry Standard | FDA Compliant 21 CFR 177.1500 |
For Use With | Beverage, Dairy, Food |
Length | 1 3/64" |
System of Measurement | Inch |
Temperature | 0° F to 230° F |
Threading | Threaded on Both Ends |
Country of Origin | Israel |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (06/27/2024, 241 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 391740.0000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
Made of either nylon or acetal, these fittings resist corrosion, so they won't deteriorate in food processing applications. They won’t transfer tastes or odors to your food or beverages.
To prevent leaks in threaded connections, apply a sealant to the male threads. Threaded connections can be taken apart as needed for maintenance and repair. For metal threads, use PTFE tape. For plastic threads, apply a non-hardening, plastic-compatible sealant. Tape or sealants with PTFE are not recommended for plastic-to-plastic connections. When making a threaded connection be careful not to overtighten the threads. To prevent cracks and leaks, finger tighten the fitting, then wrench-tighten one to two turns.
Warning: Never use plastic pipe fittings, flanges, and pipe with compressed air or gas.
Nylon—Nylon fittings and plugs have higher strength and temperature resistance than polyethylene, polypropylene, and other commonly used plastic fittings. These fittings are FDA compliant for repeated use with food at temperatures up to 230° F.

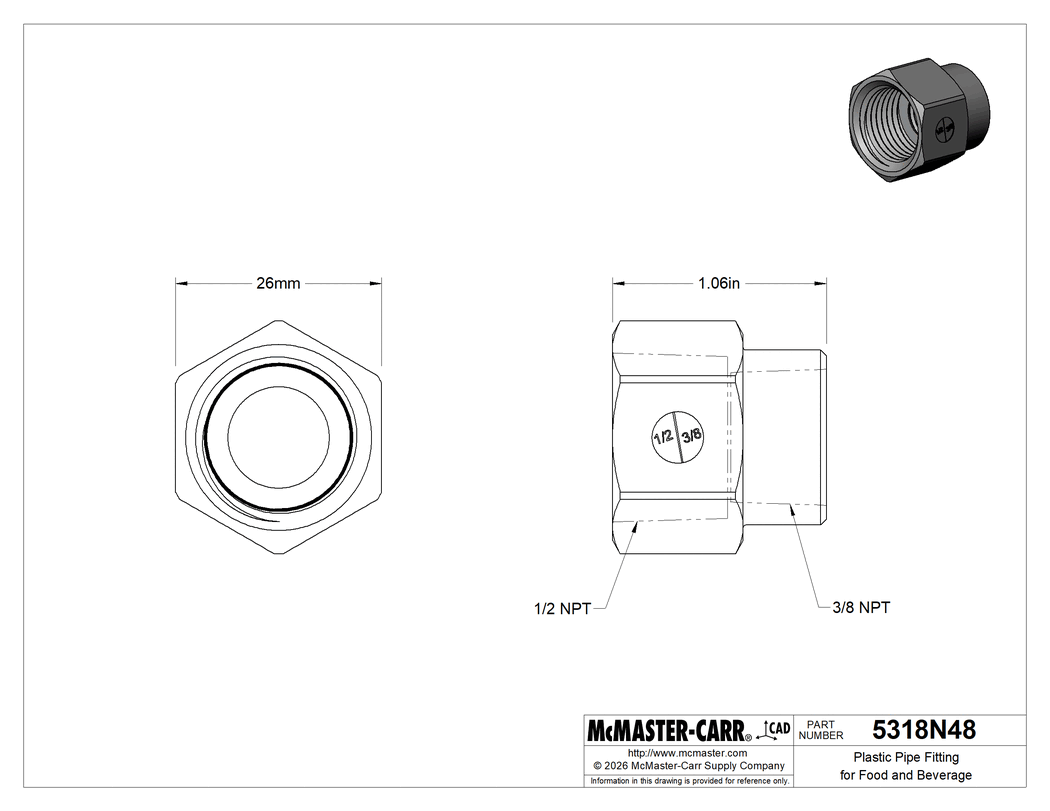

The information in this 3-D model is provided for reference only.
