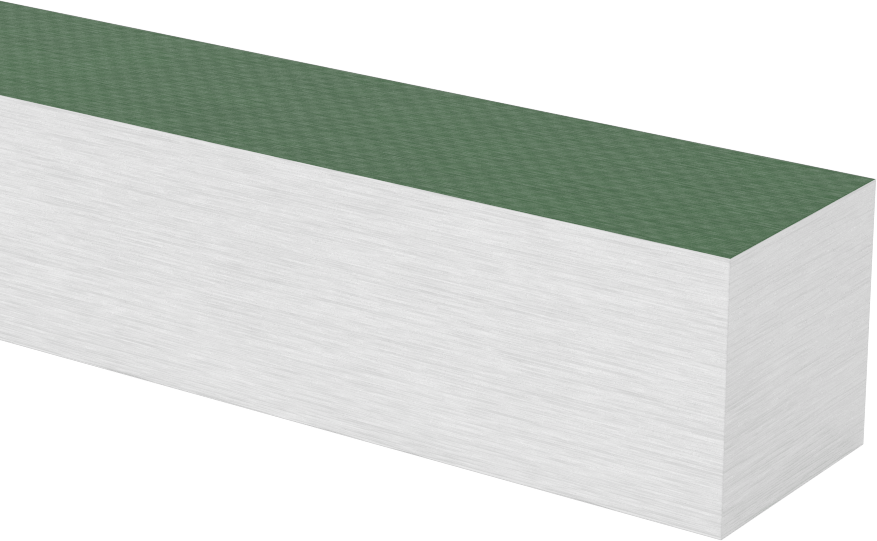

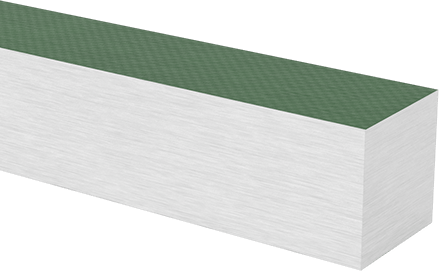

High-Temperature Garolite G-11 Bar
1" Thick, 1" Wide, 48" Long
Thickness | 1" |
Thickness Tolerance | -0.049" to 0.049" |
Color | Green |
Width | 1" |
Width Tolerance | -1" to 1" |
Length | 48" |
Length Tolerance | -1" to 1" |
Temperature | |
Minimum | Not Rated |
Maximum | 335° F |
Tensile Strength | 41,900 psi to 58,600 psi |
Impact Strength | 8.4 ft·lbf/in to 15.3 ft·lbf/in |
Hardness | Not Rated |
For Use Outdoors | No |
Military Specification | MIL-I-24768/3 |
Flammability Rating | UL 94 HB |
Backing Type | Plain |
Certificate Form | Digital |
Certificate Type | Material Certificate with Traceable Lot Number |
Clarity | Opaque |
Compressive Strength Range | 32,900 psi to 48,500 psi |
Dielectric Strength | 520 V/mil |
Environment | High Temperature |
Flatness Tolerance | Not Rated |
Flexibility | Rigid |
Flexural Strength | 55,700 psi to 76,700 psi |
Material | Garolite |
Material Grade | Garolite G-11 |
Performance | Extreme Strength, High Strength, High Temperature, Ultra Electrically Insulating, Ultra Impact Resistant |
Density | 0.068 lb/in³ |
Reinforcement Material | Fiberglass Fabric |
Resin Material | Epoxy |
Shape | Sheet, Bar |
Texture | Smooth |
Tolerance Rating | Standard |
Warning Message | Physical and mechanical properties are not guaranteed. They are intended only as a basis for comparison and not for design purposes. |
Water Absorption | 0.15% |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (06/14/2023, 235 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 392190.5050 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
Additional Specifications |
Offering higher strength and better heat resistance than Garolite G-10/FR4, these Garolite G-11 sheets and bars are suitable for continuous use in elevated temperatures. They retain at least 50% of their structural strength at temperatures above 300° F. Made of an epoxy resin with fiberglass fabric reinforcement, Garolite G-11 is sometimes called epoxy-grade industrial laminate and phenolic.

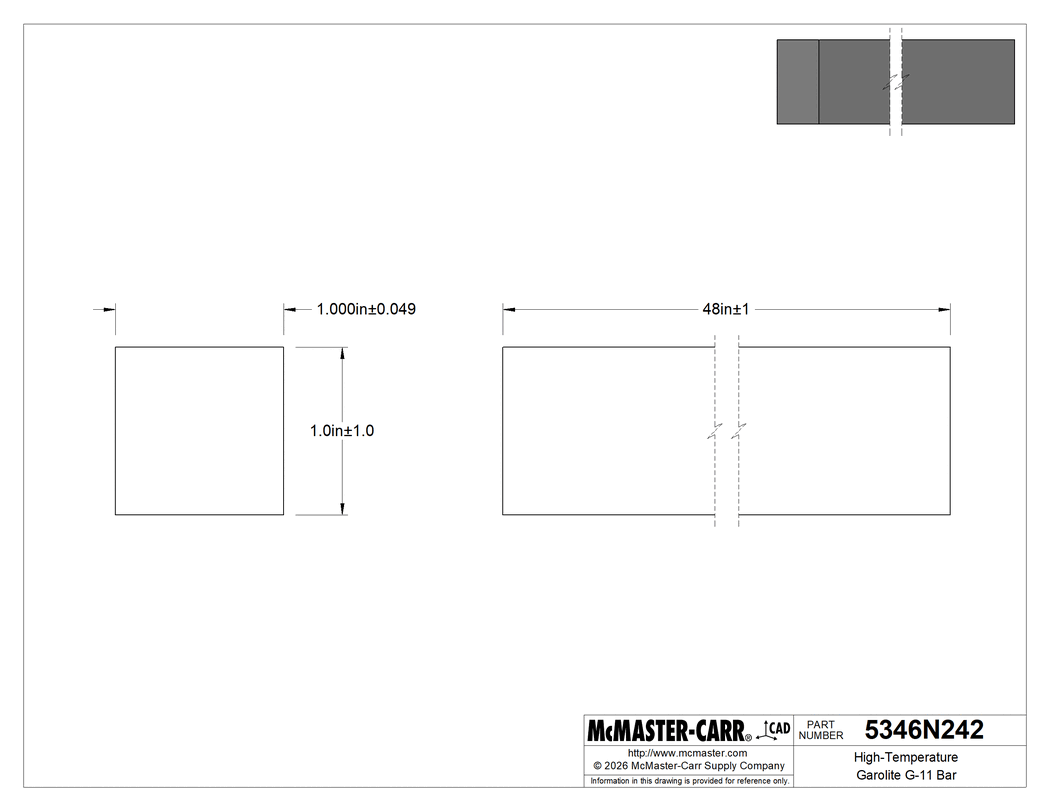

The information in this 3-D model is provided for reference only.
