    Medium-Pressure Bronze Pipe Fitting

    90 Degree Connector with Intermittent Swivel, 1 NPT Female

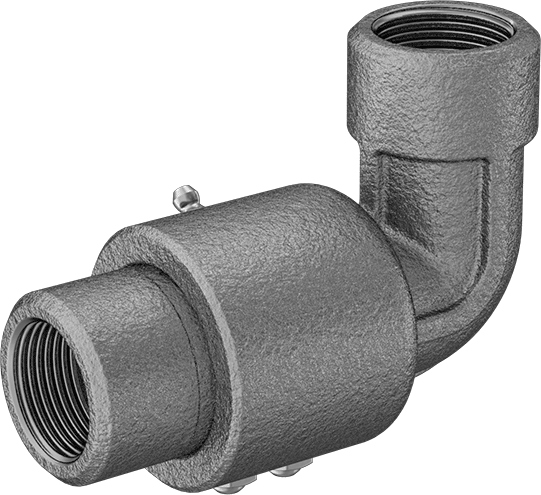

    Image of Product. Front orientation. Medium-Pressure Bronze Pipe Fitting, 90 Degree Connector with Intermittent Swivel, 1 NPT Female.

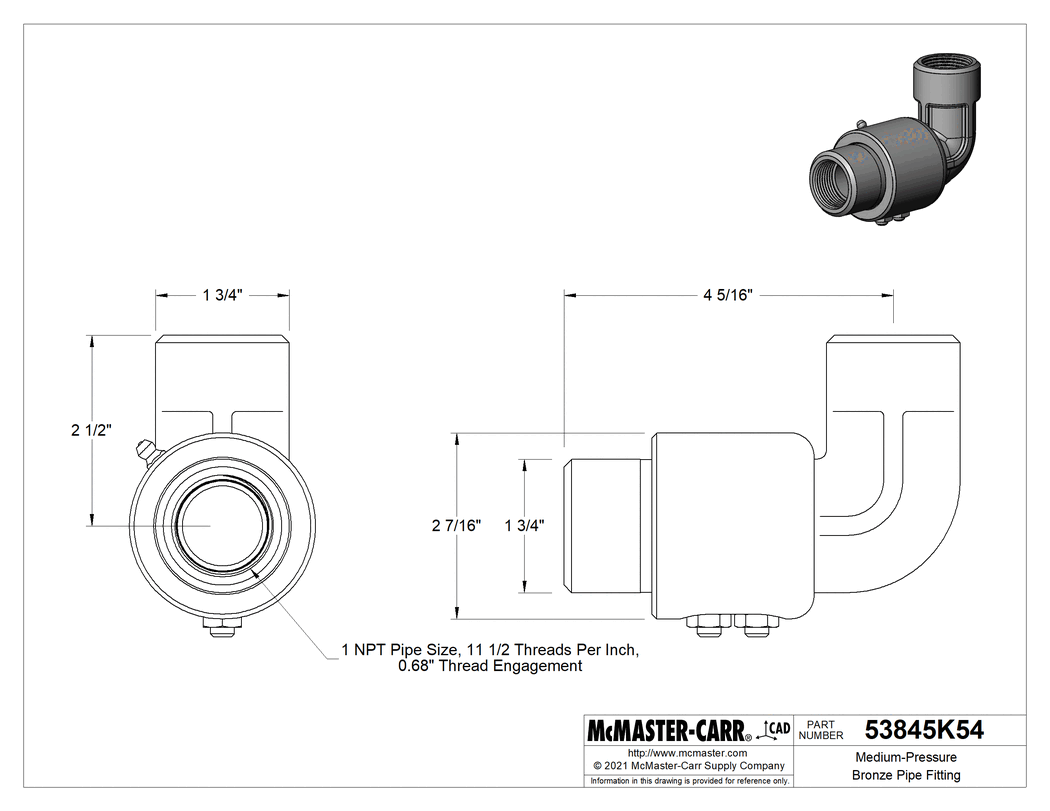

    Technical Drawing of Medium-Pressure Bronze Pipe Fitting, 90 Degree Connector with Intermittent Swivel, 1 NPT Female.
    2-D PDF
    0000000 each
    53845K54
    In stock
    53845K54
    0000000 each
    Each
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Pressure Rating

    Low Pressure

    Swivel Type

    Intermittent

    Shape

    90° Elbow

    Fitting Type

    Connector

    Fitting Connection

    NPT Female

    Pipe Size

    1

    Material

    Bronze

    Maximum Pressure @ Temperature

    300 psi @ 72° F

    Connects To

    Pipe

    For Use With

    Water

    Maximum Vacuum @ Temperature

    29 in. Hg @ 72° F

    Temperature

    -20° F to 225° F

    Country of Origin

    United States

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    Not Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    741220.0000

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    No

    Use these fittings in low-pressure flow applications. They have good corrosion resistance.

    Intermittent Swivel—Fittings with intermittent swivel rotate 360° as needed to allow movement in a rigid metal piping system.
