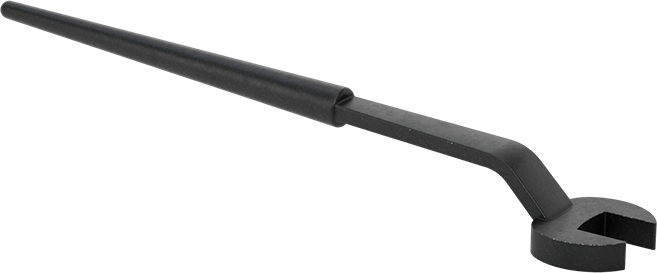

Open-End Wrench for Hole Alignment
1-5/8" Size, 23" Overall Length
Number of Heads | 1 |
Relative Length | Standard |
Application | Hole Alignment |
Head Style | Offset |
Offset Head | |
Wrench Opening Shape | Round |
Head Offset Angle | 45° |
Drive Size | 1 5/8" |
Overall Length | 23" |
Opening Angle | Straight |
Head Thickness | 13/16" |
Material | Black-Oxide Steel |
For Drive Style | External Square, External Hex |
For Use With | Screws and Nuts |
Ratcheting | Nonratcheting |
System of Measurement | Inch |
Wrench Style | Open End |
Wrench Type | Standard |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | Not Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 820411.0030 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
Line up holes with the pointed end to smoothly insert bolts, then flip these wrenches over to tighten them in no time. They’re often used to align girders or beams in steel framing, repair machinery, and assemble pipelines. Also known as spud, structural, and construction wrenches.
Offset Head—The head and handle are angled, making it easier to maneuver around obstacles to reach fasteners in tight spots.
Round Opening—The rounded edges spread force evenly to prevent stripping your fasteners. Use them on hex-head fasteners.
Black-Oxide Steel—The dark, matte coating protects these wrenches from wear and won't flake off. They offer minimal corrosion resistance, though, so they're best for dry environments.

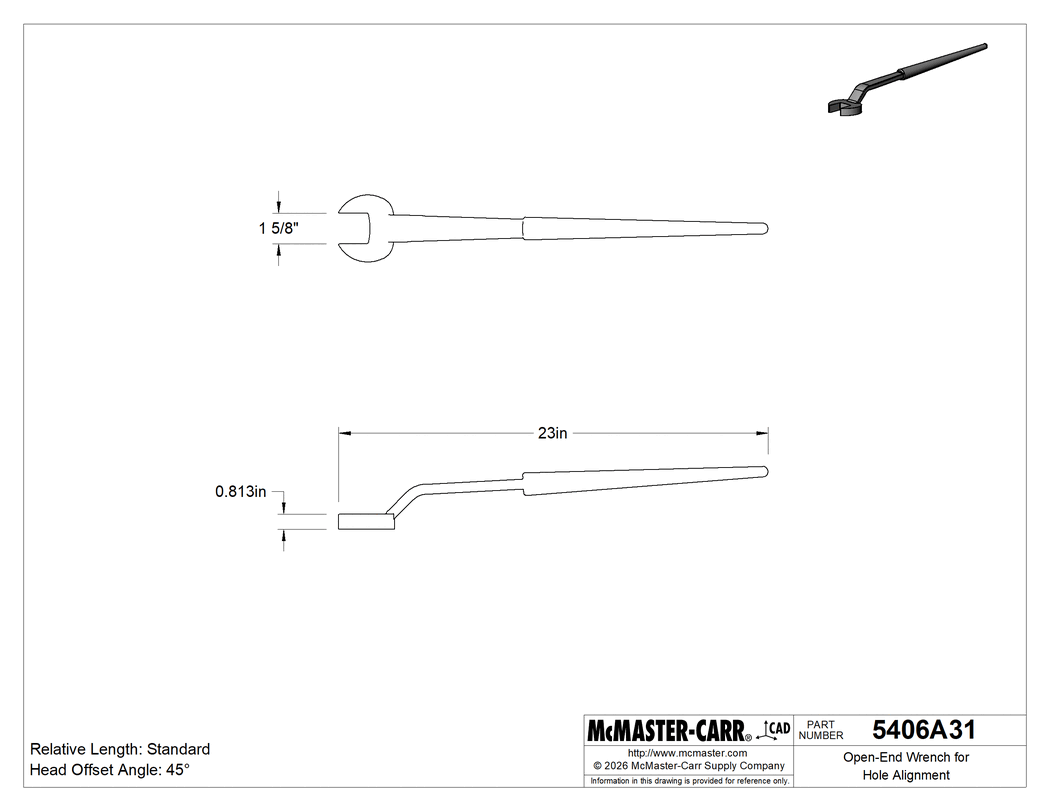

The information in this 3-D model is provided for reference only.
