    6-Point Impact Socket

    3/4" Square Drive, Standard, 25 mm Size, 2" Overall Length

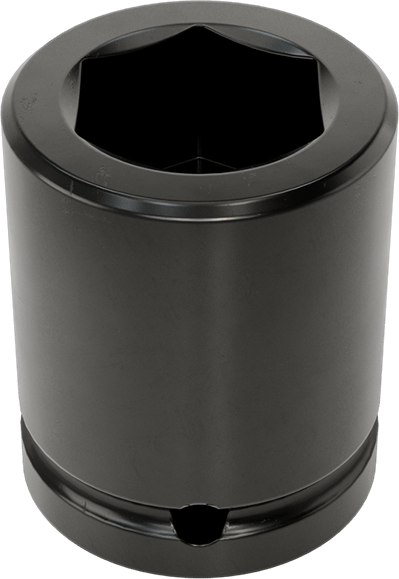

    Image of Product. Bottom orientation. 6-Point Impact Socket, 3/4" Square Drive, Standard, 25 mm Size, 2" Overall Length.

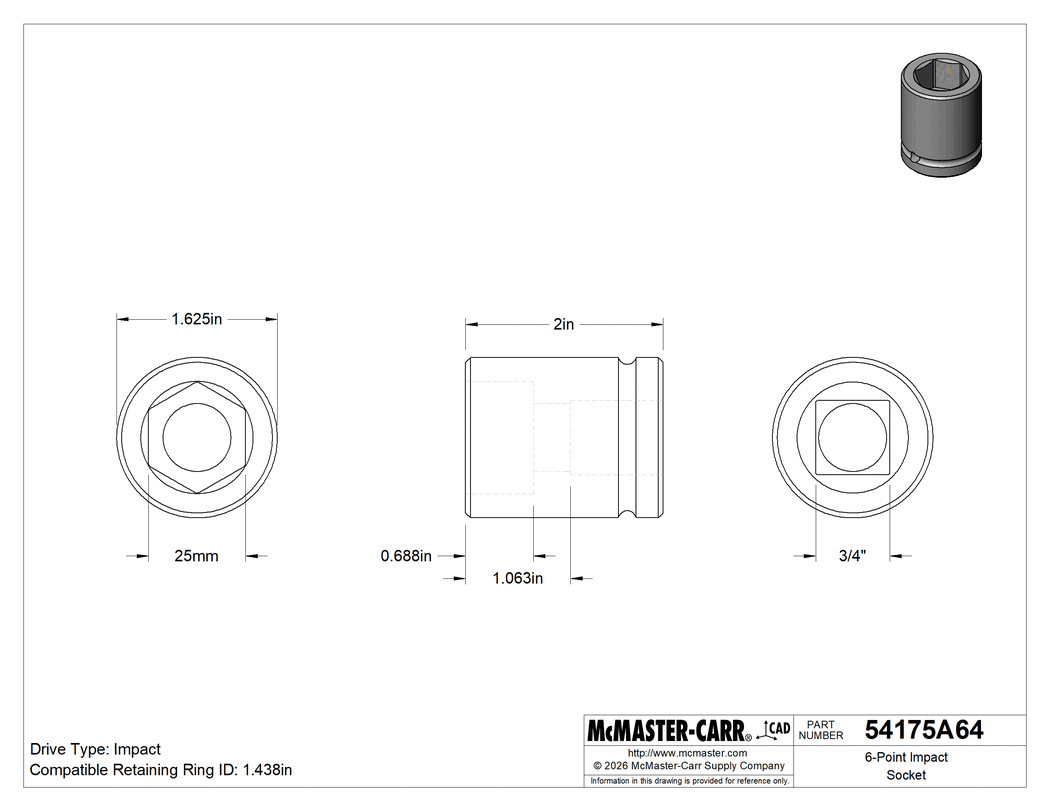

    Technical Drawing of 6-Point Impact Socket, 3/4" Square Drive, Standard, 25 mm Size, 2" Overall Length.
    Image of Product. Bottom orientation. 6-Point Impact Socket, 3/4" Square Drive, Standard, 25 mm Size, 2" Overall Length.

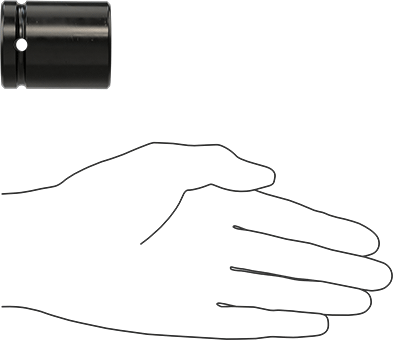

    Image of Product. Side1 orientation. Contains SizingReference. 6-Point Impact Socket, 3/4" Square Drive, Standard, 25 mm Size, 2" Overall Length.
    2-D PDF
    000000 each
    54175A64
    In stock
    54175A64
    000000 each
    Each
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Bolt Clearance Type

    Standard

    Square Drive Size

    3/4"

    Drive Size

    25 mm

    Clearance Depth

    Nut

    11/16"

    Bolt

    1 1/16"

    Compatible Retaining Ring ID

    1 7/16"

    Material

    Black-Oxide Steel

    Overall Length

    2"

    Socket Shape

    6-Point

    Drive Type

    Impact

    For Drive Style

    External Hex

    OD

    1 5/8"

    Socket Style

    Standard

    Socket Type

    Socket

    Sold As

    Individual

    System of Measurement

    Metric

    Country of Origin

    United States

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant

    RoHS Compliance

    Not Compliant

    Schedule B Number

    820420.0000

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    Yes

    Related Product

    Retaining Rings

    Achieve the best possible grip on hex fasteners and prevent rounding. These sockets are made to withstand the high torque and force of impact tools.

    3/4" Square Drive—3/4", 1", and 1 1/2" square drive size sockets require a locking retainer. Use with an impact wrench that has a pin-style socket retainer, or use a socket retaining ring with tools that have a hole- or hole-and-ring style socket retainer.
