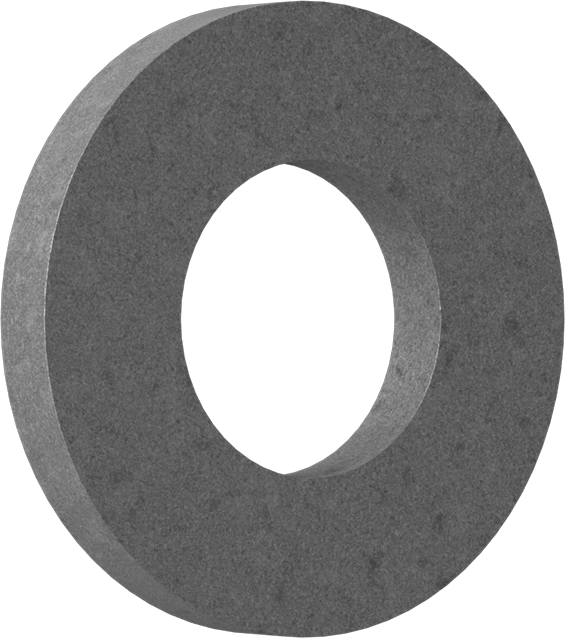

Oil-Embedded Thrust Bearing for Food and Beverage
841 Bronze, for 6mm Shaft Diameter, 12mm OD, 1.5mm Thick
Bearing Type | Plain |
Lubrication | Lubricated |
Material | 841 Bearing Bronze |
For Shaft Diameter | 6 mm |
OD | 12 mm |
OD Tolerance | 0 mm to 0.254 mm |
Thickness | 1.5 mm |
Thickness Tolerance | -0.07 mm to 0.07 mm |
Dynamic Thrust Load Capacity @ Speed | 260 lb. @ 120 rpm |
Base Oil | Synthetic Oil |
Temperature Range | -75° F to 300° F |
Food Industry Standard | FDA Compliant 21 CFR 178.3570, NSF Registered H1 |
Environment | Food and Beverage |
For Load Direction | Thrust |
For Shaft Type | Round |
ID | 6 mm |
ID Tolerance | 0 mm to 0.254 mm |
Lubricant | SAE 20 Oil |
Lubrication Method | Embedded |
P Max | 2,000 psi |
Performance | Corrosion Resistant |
Plain Bearing Type | Thrust |
PV Max | 50,000 |
System of Measurement | Metric |
V Max | 1,200 sfpm |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 848330.8090 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
Infused with food-grade oil, these bearings are safe for incidental contact with food. The oil is odorless, colorless, and tasteless, so they're common on food production and packaging lines. You can install and forget them since their porous surface releases oil over time. All are fabricated, lubricated, and inspected in the U.S.
If you need a bearing rated for direct contact with food, consider dry-running thrust bearings for food and beverage.
841 Bearing Bronze—A balance of strength and speed makes these bearings a good choice for most applications. Also known as SAE 841 bearing bronze.
Synthetic Oil Base—A high-quality lubricant makes all the difference. Synthetic oil is less sensitive to temperature changes than mineral oil, so it won't get runny and leak away if the bearing heats up.

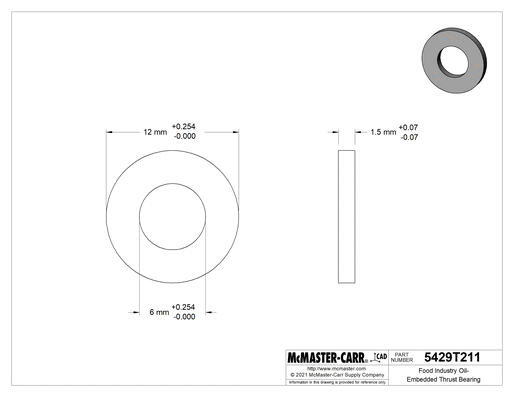

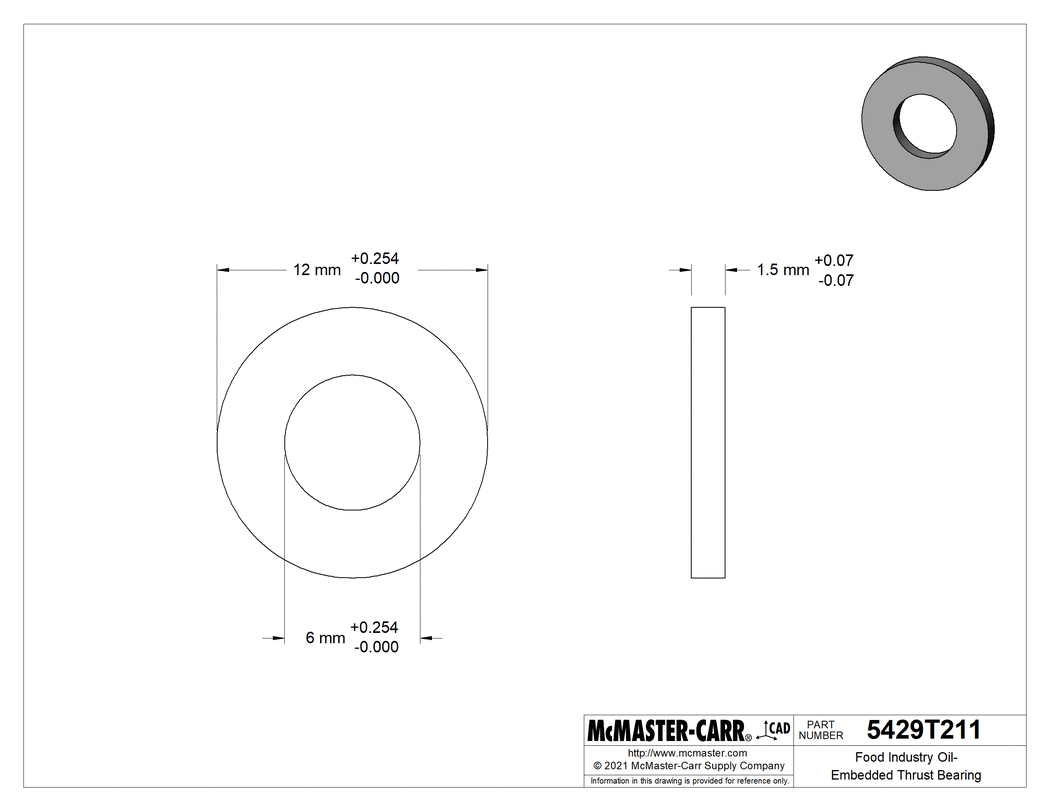

The information in this 3-D model is provided for reference only.
