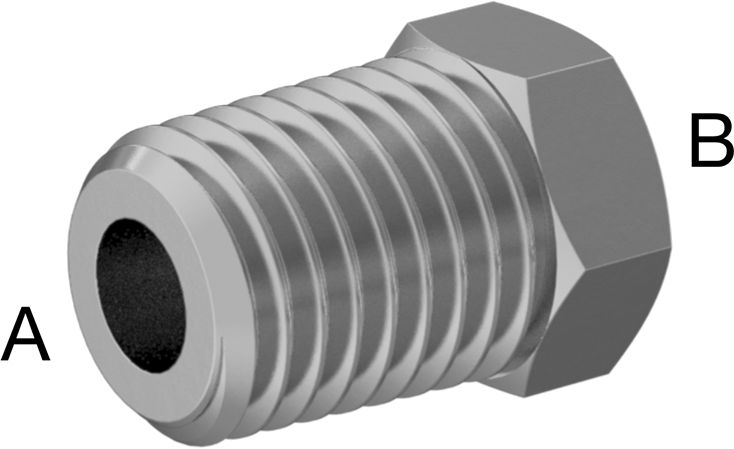

Brass Bushing Adapter
1/16 NPT Male, 10-32 Female

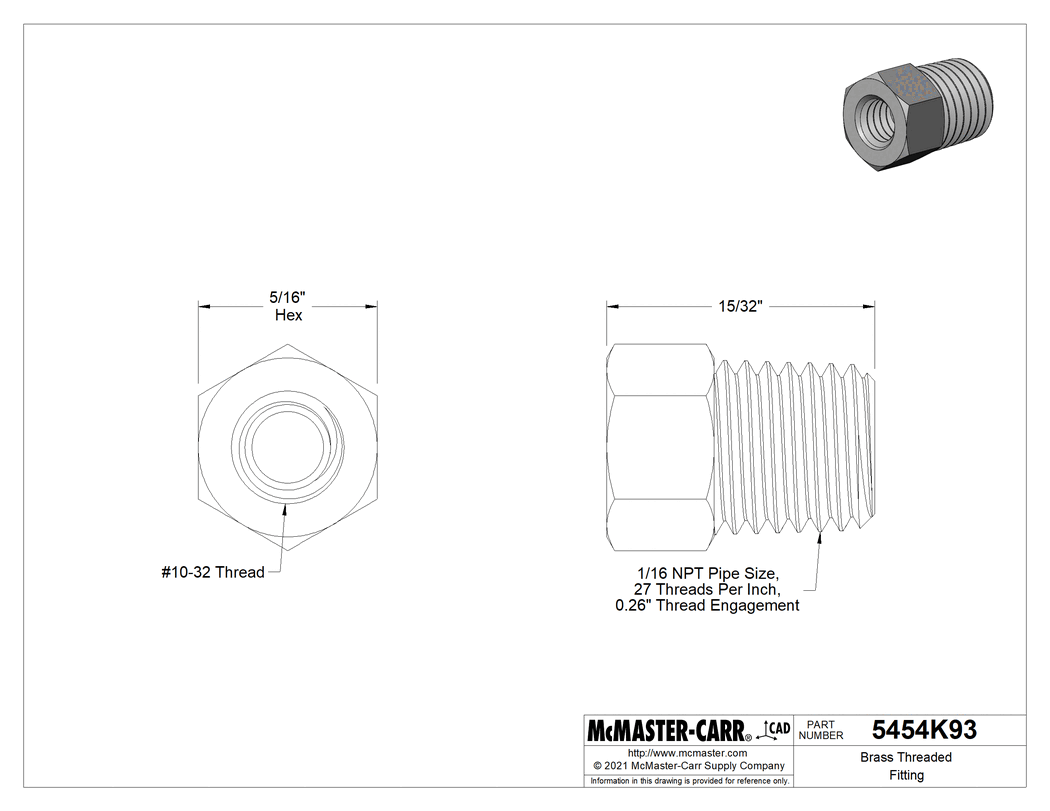

2-D PDF
000000 per pack of 10
5454K93
In stock
5454K93
000000 per pack of 10
Pack of 10
Select a compatible file type: Parasolid
Available for Solidworks 2017 or newer.
Relative Size | Miniature |
Pressure Rating | High Pressure |
Shape | Straight |
Fitting Type | Adapter, Reducing Adapter, Bushing, Reducer |
Fitting Connection | NPT Male × UN/UNF (SAE Straight) Female |
Pipe Size (A) | 1/16 |
Thread Size | |
(B) | 10-32 |
Body Shape | Hex |
Material | 360 Brass |
Maximum Pressure @ Temperature | 1,000 psi @ 72° F |
Connects To | Pipe |
Fabrication | Machined |
For Use With | Air, Water |
Hex Width | 5/16" |
Length | 15/32" |
Performance | Corrosion Resistant |
System of Measurement | Inch |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (02/04/2026, 253 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant with Exemptions |
RoHS Exemptions | 6(c) |
Schedule B Number | 741220.0000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
When space in your pipe line is limited, choose these miniature fittings that are one inch or less in length. They are brass, which has good corrosion resistance.
UN/UNF (SAE Straight) Thread—Also known as O-ring boss threads.
The information in this 3-D model is provided for reference only.
