    6-Point Impact Socket

    Standard, 3/4" Square Drive, 1-1/2" Size, 2-1/4" Long

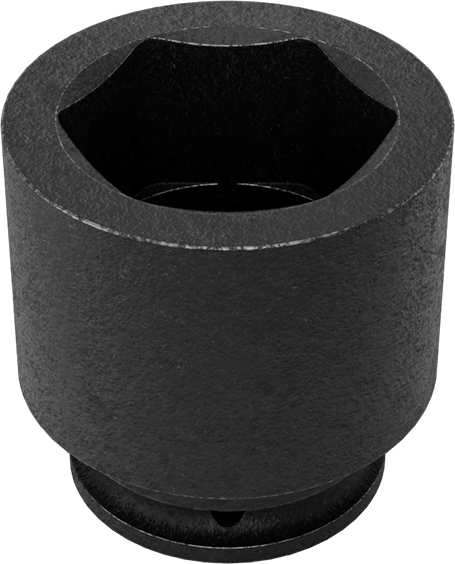

    Image of Product. Bottom orientation. 6-Point Impact Socket, Standard, 3/4" Square Drive, 1-1/2" Size, 2-1/4" Long.

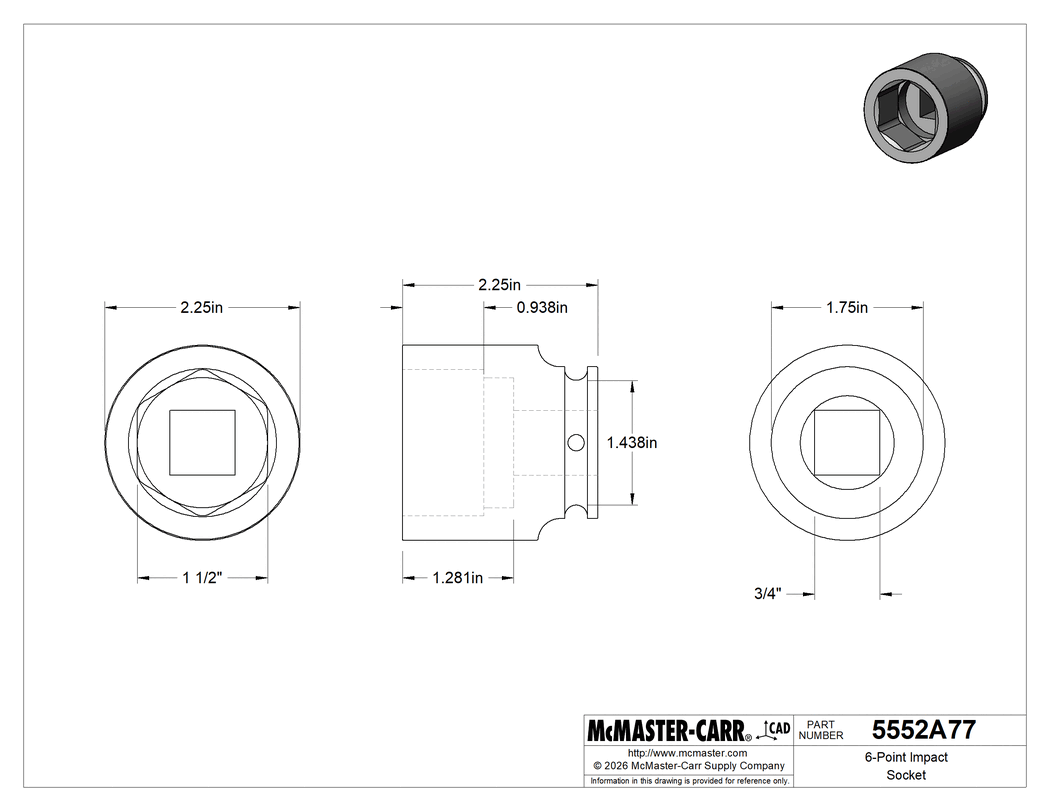

    Technical Drawing of 6-Point Impact Socket, Standard, 3/4" Square Drive, 1-1/2" Size, 2-1/4" Long.
    Image of Product. Bottom orientation. 6-Point Impact Socket, Standard, 3/4" Square Drive, 1-1/2" Size, 2-1/4" Long.
    Image of Product. Side1 orientation. Contains SizingReference. 6-Point Impact Socket, Standard, 3/4" Square Drive, 1-1/2" Size, 2-1/4" Long.
    2-D PDF
    000000 each
    5552A77
    In stock
    5552A77
    000000 each
    Each
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Bolt Clearance Type

    Standard

    Square Drive Size

    3/4"

    Drive Size

    1 1/2"

    Clearance Depth

    Nut

    15/16"

    Bolt

    1 9/32"

    Compatible Retaining Ring ID

    1 7/16"

    Material

    Black-Oxide Steel

    Overall Length

    2 1/4"

    Socket Shape

    6-Point

    Drive Type

    Impact

    For Drive Style

    External Hex

    OD

    2 1/4"

    Socket Style

    Standard

    Socket Type

    Socket

    Sold As

    Individual

    System of Measurement

    Inch

    Country of Origin

    United States

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    REACH (EC 1907/2006) (01/17/2023, 233 SVHC) Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    820420.0000

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    Yes

    Related Product

    Retaining Rings

    Achieve the best possible grip on hex fasteners and prevent rounding. These sockets are made to withstand the high torque and force of impact tools.

    3/4" Square Drive—3/4", 1", and 1 1/2" square drive size sockets require a locking retainer. Use with an impact wrench that has a pin-style socket retainer, or use a socket retaining ring with tools that have a hole- or hole-and-ring style socket retainer.

    The information in this 3-D model is provided for reference only.
