    Industrial Quick-Disconnect Hose Coupling Size-Identification Kit

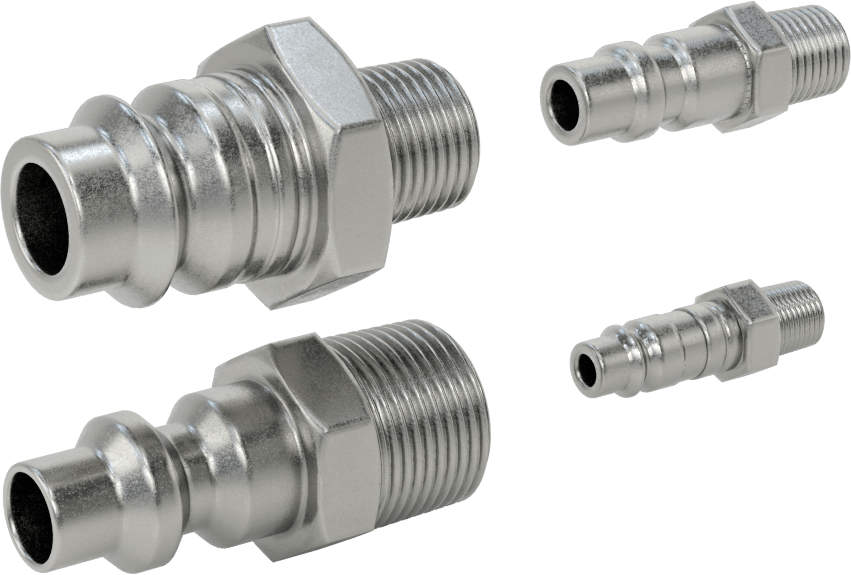

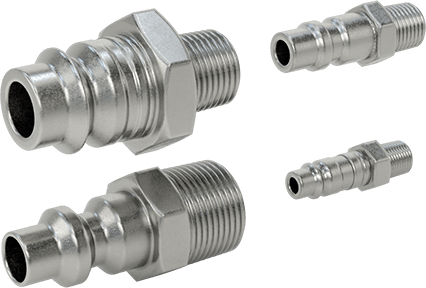

    Image of Product. Front orientation. Industrial Quick-Disconnect Hose Coupling Size-Identification Kit.

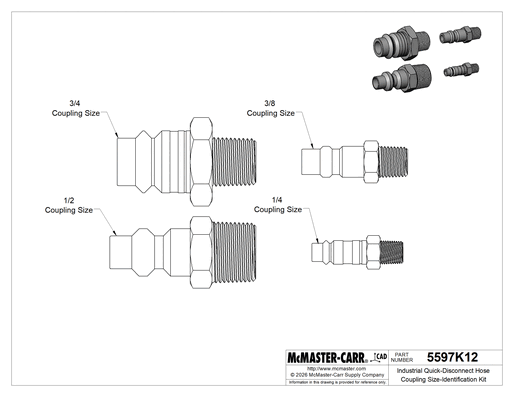

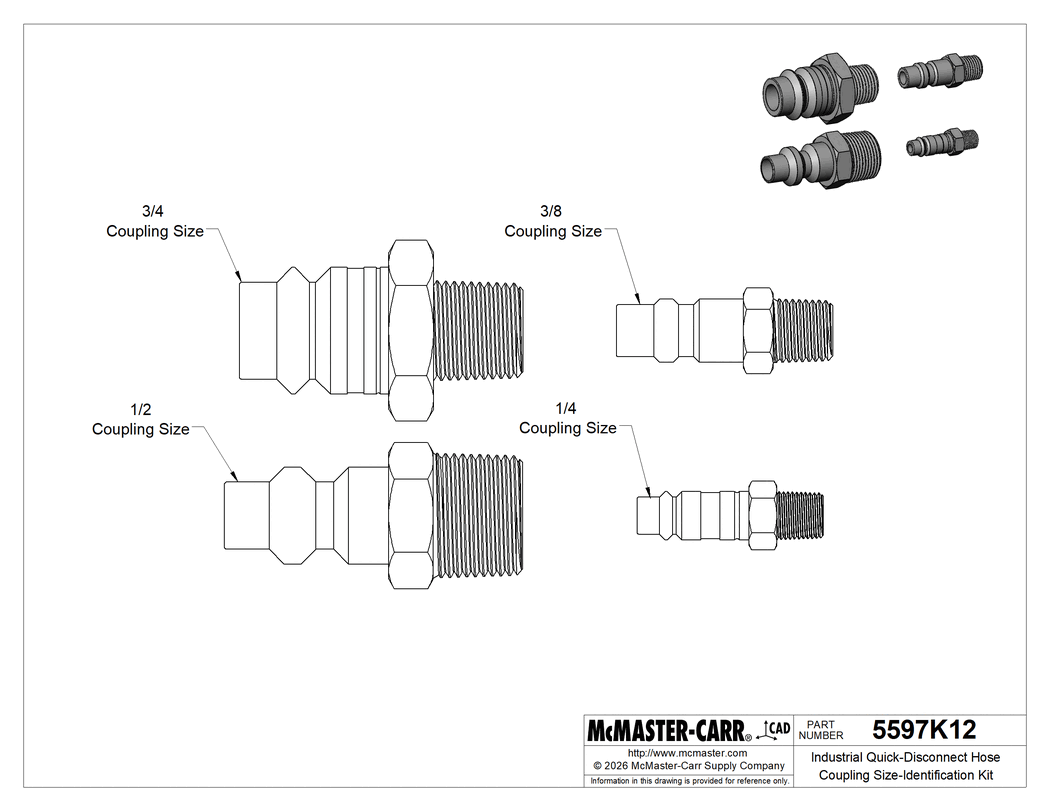

    Technical Drawing of Industrial Quick-Disconnect Hose Coupling Size-Identification Kit.
    2-D PDF
    000000 each
    5597K12
    In stock
    5597K12
    000000 each
    Each
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Material

    Steel

    Coupling Size

    1/4, 3/8, 1/2, 3/4

    Fitting Type

    Adapter

    Hose Connection

    Fitting Connection

    Quick Disconnect

    Quick-Disconnect Shape

    Industrial

    Gender

    Male

    Hose/Pipe Connection

    Fitting Connection

    Threaded

    Gender

    Male

    Quick-Disconnect Component

    Plug

    Shape

    Straight

    Country of Origin

    United States

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    Not Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant with Exemptions

    RoHS Exemptions

    6(a)-I

    Schedule B Number

    732690.8695

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    Yes

    Additional Specifications

    Actual-Size Quick-Disconnect Hose Coupling Comparison Chart

    Kits contain Industrial quick-disconnect plugs in four coupling sizes so you can determine the size of your plugs and sockets without needing to measure. The size is clearly labeled on each plug.

    The information in this 3-D model is provided for reference only.
