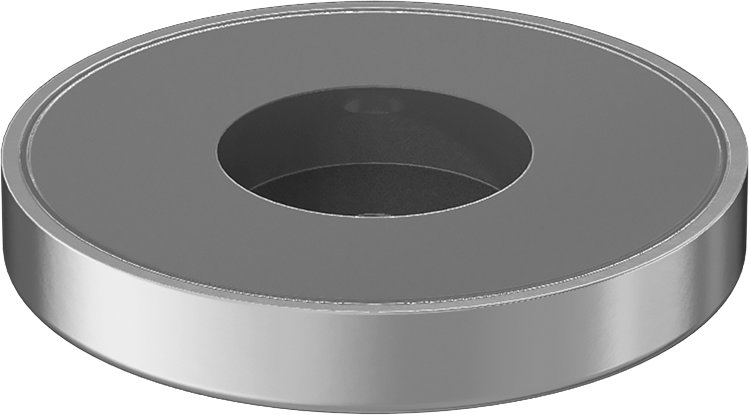

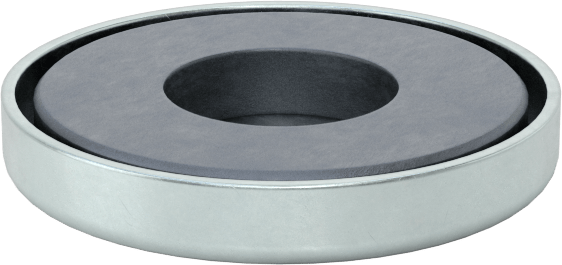

Encased Ceramic Magnet with Unthreaded Hole
Zinc-Plated Steel Case, 5/16" Thick, 2-1/32" OD
Construction | Encased |
Mount Type | Unthreaded Hole |
Case Material | Zinc-Plated Steel |
Style | 2 |
Thickness | 5/16" |
Thickness Tolerance | -0.063" to 0.063" |
OD | 2 1/32" |
OD Tolerance | -0.063" to 0.063" |
Hole Diameter | 3/16" |
Hole Diameter Tolerance | -0.015" to 0.015" |
Maximum Pull | 42 lbf |
Temperature | |
Minimum | Not Rated |
Maximum | 245° F |
Magnet Grade | C8 |
Mounting Hole Style | Straight |
For Screw Size | No. 8 |
Color | Gray |
Fabrication | Sintered |
Material | Ferrite Ceramic |
Flux Density | Not Rated |
Magnetic Pull Rating | Heavy |
Maximum Energy Product | Not Rated |
No. of Mounting Holes | 1 |
Performance | Corrosion Resistant, Electrically Insulating, Impact Resistant, Mountable |
Sets of Poles | 1 |
Shape | Disc, Round |
System of Measurement | Inch |
Country of Origin | China |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 850519.0000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
Our most economical magnets with built-in durability. A protective case shields them from cracks and chips caused by bumps and drops. Ceramic magnets deliver a cost-effective balance of corrosion and temperature resistance. However, they are not as strong as rare earth magnets.
Warning: Maximum pull ratings are based on direct contact with rust-free, unpainted iron surfaces. Variations in material condition will significantly reduce holding strength. Do not use for lifting over people.
Zinc-Plated Steel Case—Withstands occasional exposure to moisture.

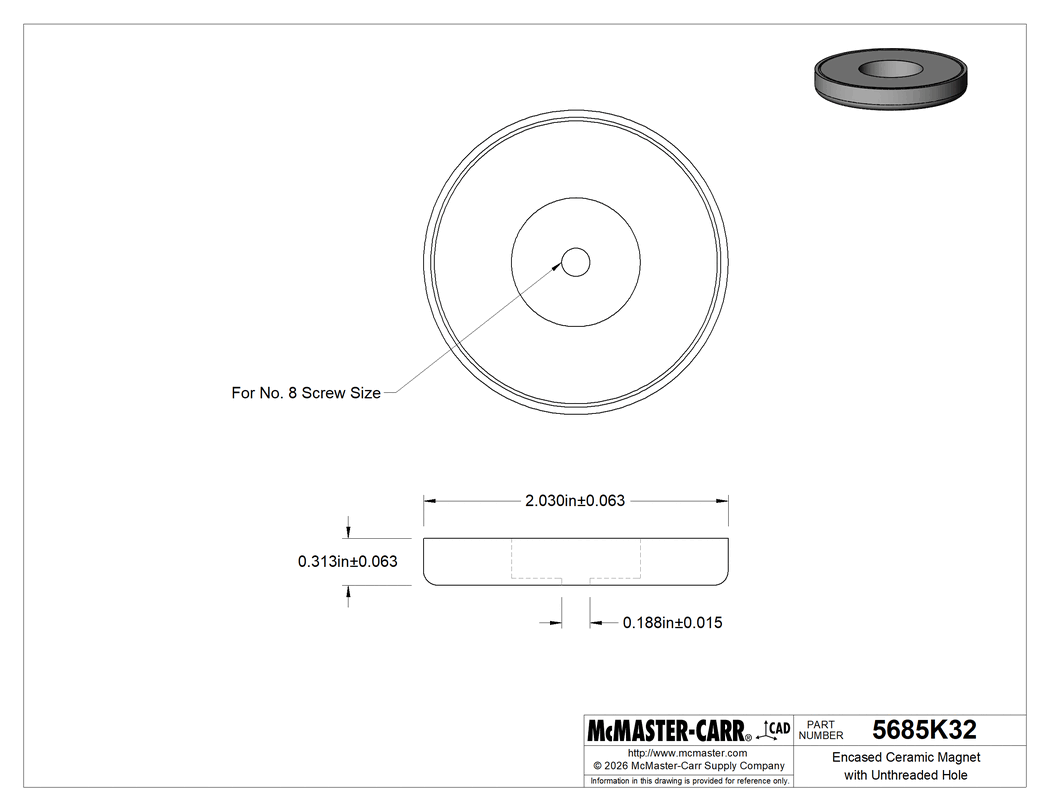

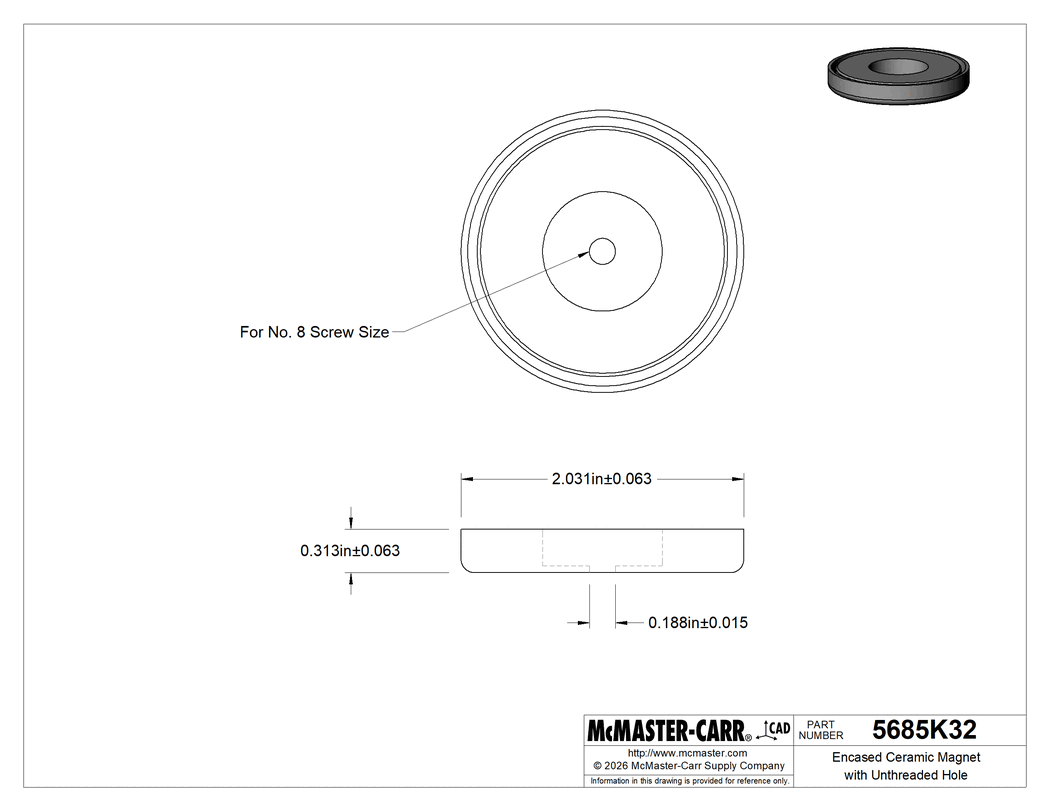

The information in this 3-D model is provided for reference only.
