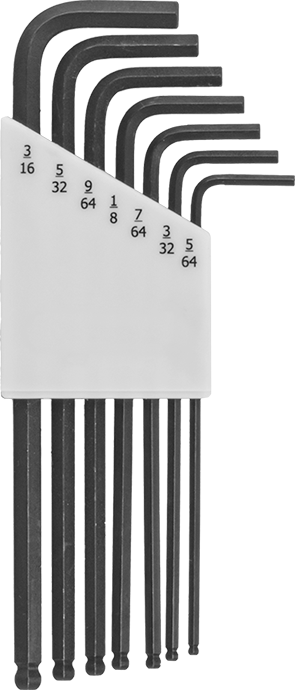

Angled-Drive Ball-Tip Hex L-Key Set
7 Pieces, Black Phosphate Coated Alloy Steel
Tip Style | Ball |
Driver Style | L-Key |
Material | Alloy Steel |
Drive Style | Hex |
Number of Pieces | 7 |
Drive Size | 5/64", 3/32", 7/64", 1/8", 9/64", 5/32", 3/16" |
Length | |
Overall | 3 3/8" to 4 11/16" |
Relative | Long |
Ball | |
Location | Single Ball |
Shape | Round |
Maximum Access Angle | 25° |
Color | Black |
Finish | Phosphate Coated |
Container Type | Plastic Caddy |
Driver Type | Standard |
Includes | 5/64" Hex L-Key (3 3/8" O'all Lg.) |
Performance | Angled Drive |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (06/25/2025, 250 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 820411.0060 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
Reach corners and tight spaces with the sizes you use most. These L-keys turn screws at an angle when you can’t access them head on. They have a ball tip on the long leg that engages the drive with less contact than a straight tip. Ball tips are handy for corners and tightly-packed areas, such as control panels and junction boxes. However, they don’t grip as tightly as straight tips, and may strip the drive of the fastener if you crank them too hard. These L-keys are precision manufactured to tight tolerances.
Alloy Steel—These L-keys handle high torque without bending or breaking, so they’ll last a lifetime.
Long—The most common option, these L-keys have a balanced length for everyday reach and torque.

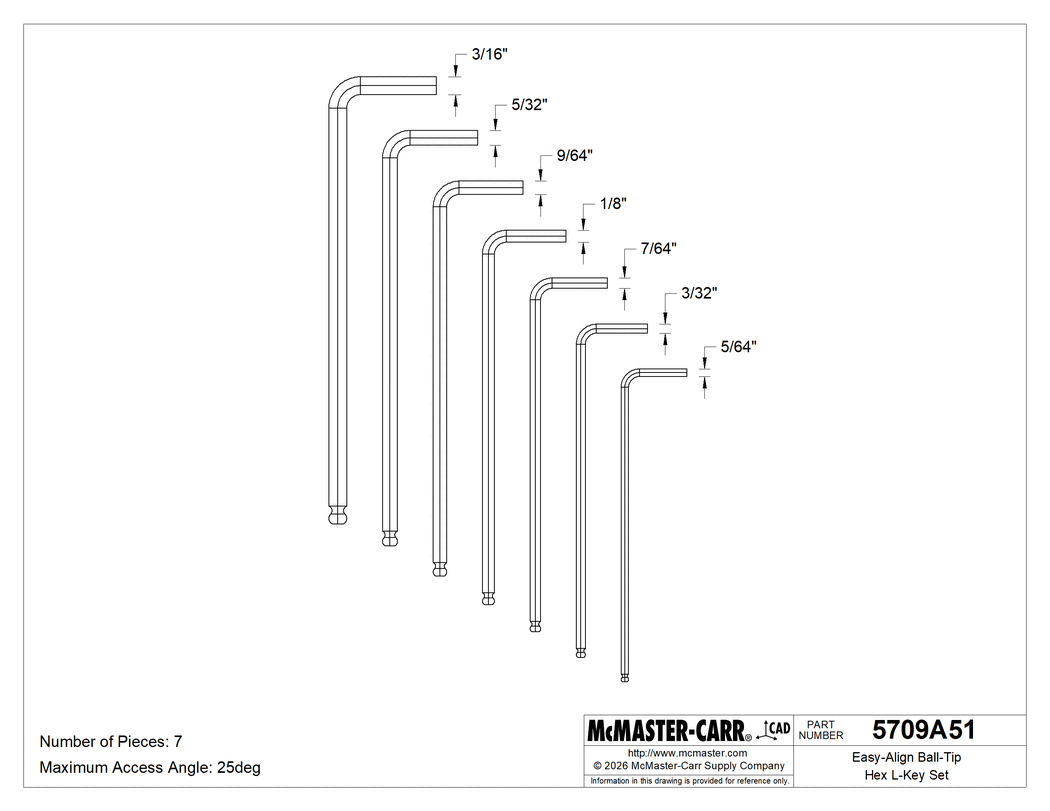

The information in this 3-D model is provided for reference only.
