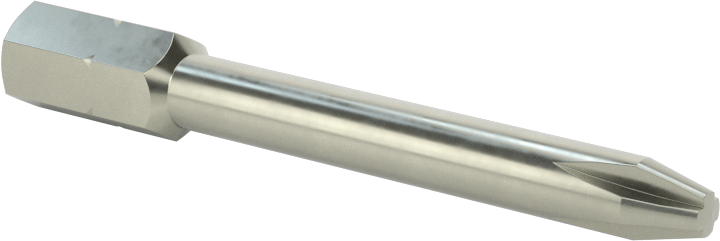

Tight-Clearance #2 Phillips Bit
1.5" Shaft Length
2-D PDF
00000 each
5750A89
In stock
5750A89
00000 each
Each
Select a compatible file type: Parasolid
Available for Solidworks 2017 or newer.
Driver Style | Bit |
For Tool Type | Hand Tools |
Hex Shank Size | 1/4" |
Shank Type | Hex |
Drive Size | No. 2 |
For Screw Size | No. 5, No. 6, No. 7, No. 8, No. 9, No. 10 |
Overall Length | 2" |
Shaft | |
Length | 1 1/2" |
OD | 0.191" |
Material | Steel |
For Drive Style | Phillips |
Performance | Tight Clearance |
Tip Style | Straight |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | Not Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 820790.7570 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
With a 20% smaller shaft diameter than standard Phillips bits, these reach screws in narrow, recessed holes. Phillips bits align easily with fasteners and deliver more torque than slotted bits.
Hex Shank—Also known as insert bits, these snap into hand tools. If you want to use them with power tools, attach a bit adapter (not included).
Steel—Best for dry environments, since moisture will cause these bits to rust.

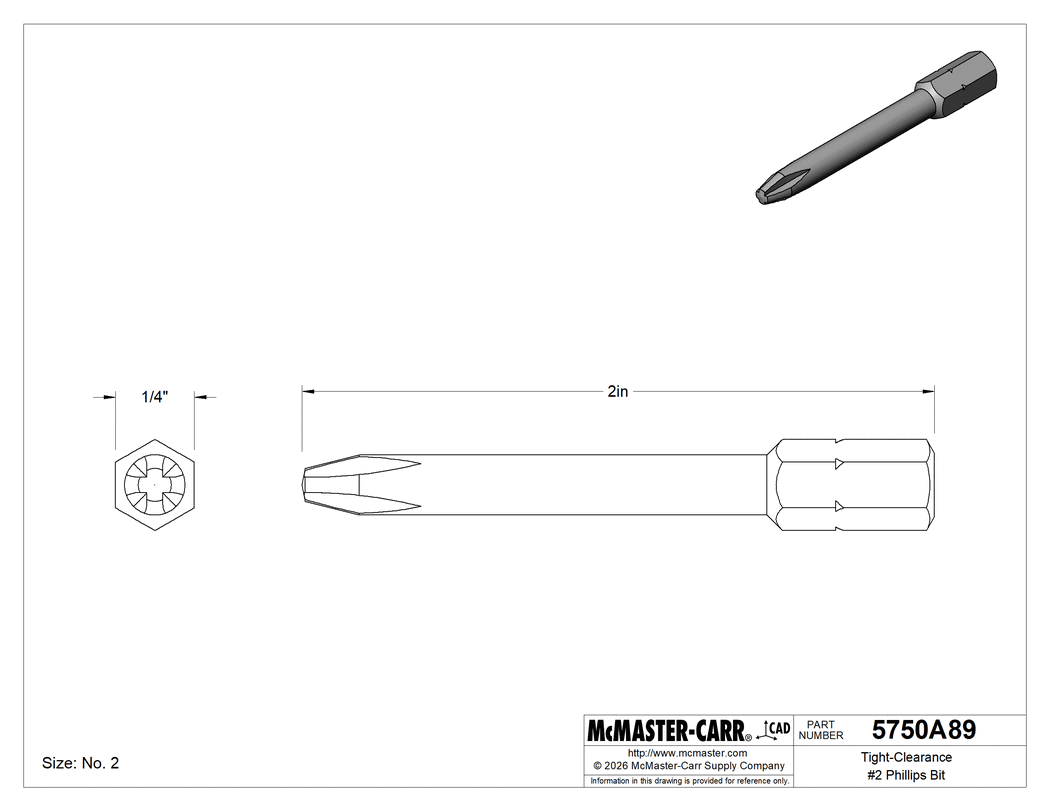

The information in this 3-D model is provided for reference only.
