    Swivel End Mounting Bracket for 2.130" OD Enclosed Cable and Hose Carrier

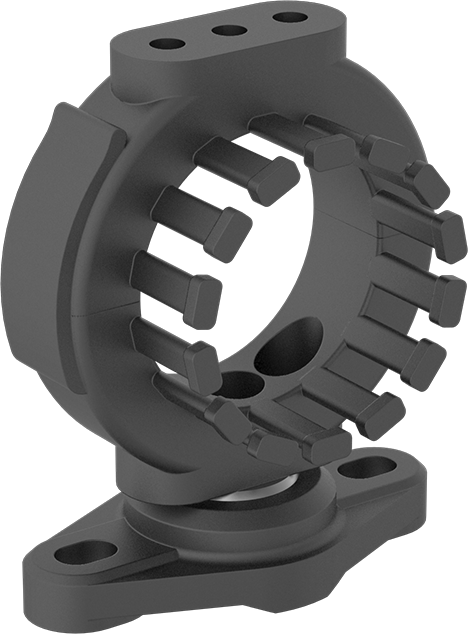

    Image of Product. Front orientation. Swivel End Mounting Bracket for 2.130" OD Enclosed Cable&Hose Carrier.

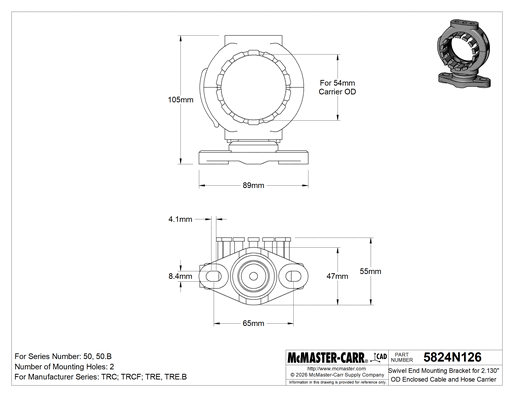

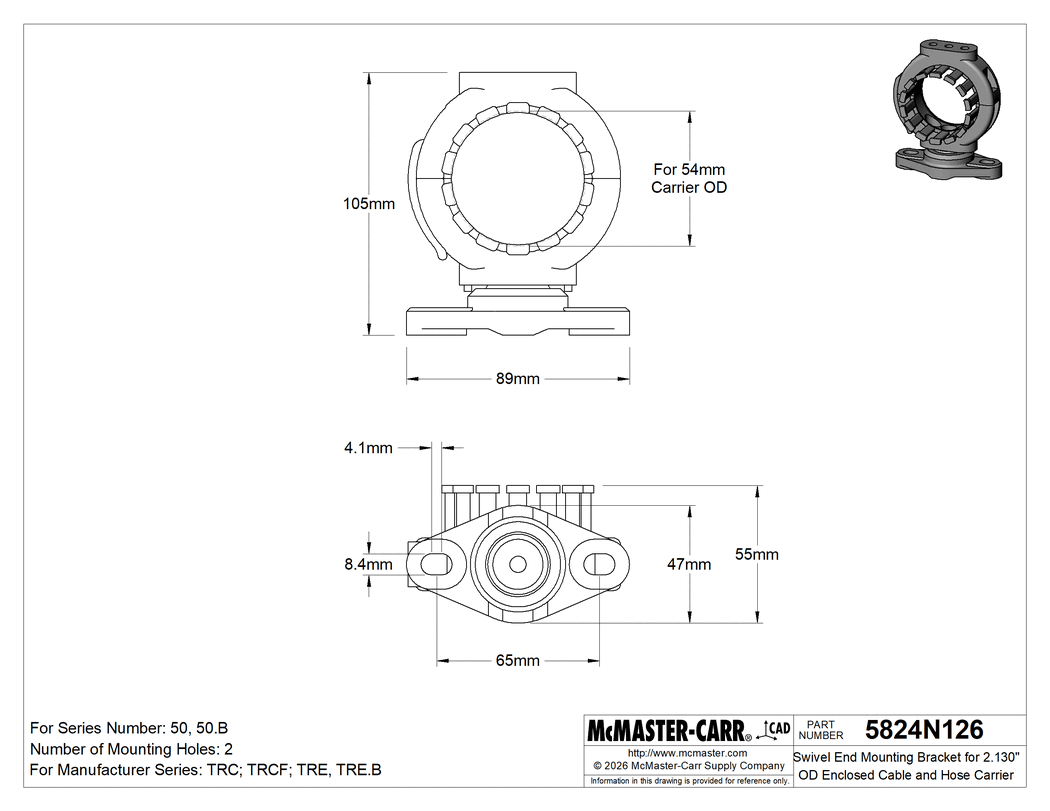

    Technical Drawing of Swivel End Mounting Bracket for 2.130" OD Enclosed Cable&Hose Carrier.
    Image of System. Front orientation. Contains Annotated. Swivel End Mounting Bracket for 2.130" OD Enclosed Cable&Hose Carrier.
    2-D PDF
    0000000 each
    5824N126
    In stock
    5824N126
    0000000 each
    Each
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Component

    Mounting Bracket

    Bracket Movement

    Swivel

    Mounting Bracket Style

    End

    Material

    Nylon

    For Carrier OD

    2.13" / 54 mm

    Mounting Fasteners Included

    No

    Mounting Hole Diameter

    8.4 mm

    Number of Mounting Holes

    2

    Mounting Hole Center-to-Center

    65 mm

    Cable Holder Type

    Tie

    Manufacturer

    Igus

    For Manufacturer Series

    TRC, TRE, TRE.B

    For Series Number

    50, 50.B

    Color

    Black

    Country of Origin

    Germany

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    848790.0080

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    No

    Use these accessories to mount carriers to your machinery without creating an obstruction.

    Swivel—Brackets that swivel rotate and rock to soften twisting and bending motions. This reduces how much the cable and hose move, extending their life.

    End Mounting Bracket—End mounting brackets reduce the strain on cable and hose as it's pulled, so connections remain secure. Some have teeth that let you secure each line of cable or hose with cable ties.
