    Swivel Support Mounting Bracket for 2.560" OD Enclosed Cable and Hose Carrier

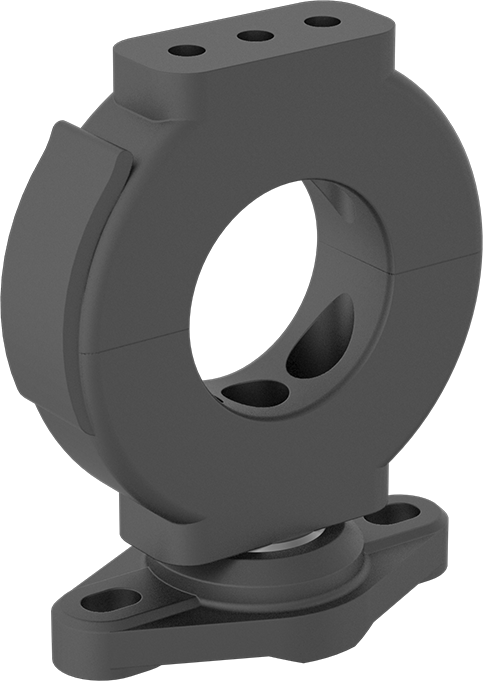

    Image of Product. Front orientation. Swivel Support Mounting Bracket for 2.560" OD Enclosed Cable&Hose Carrier.

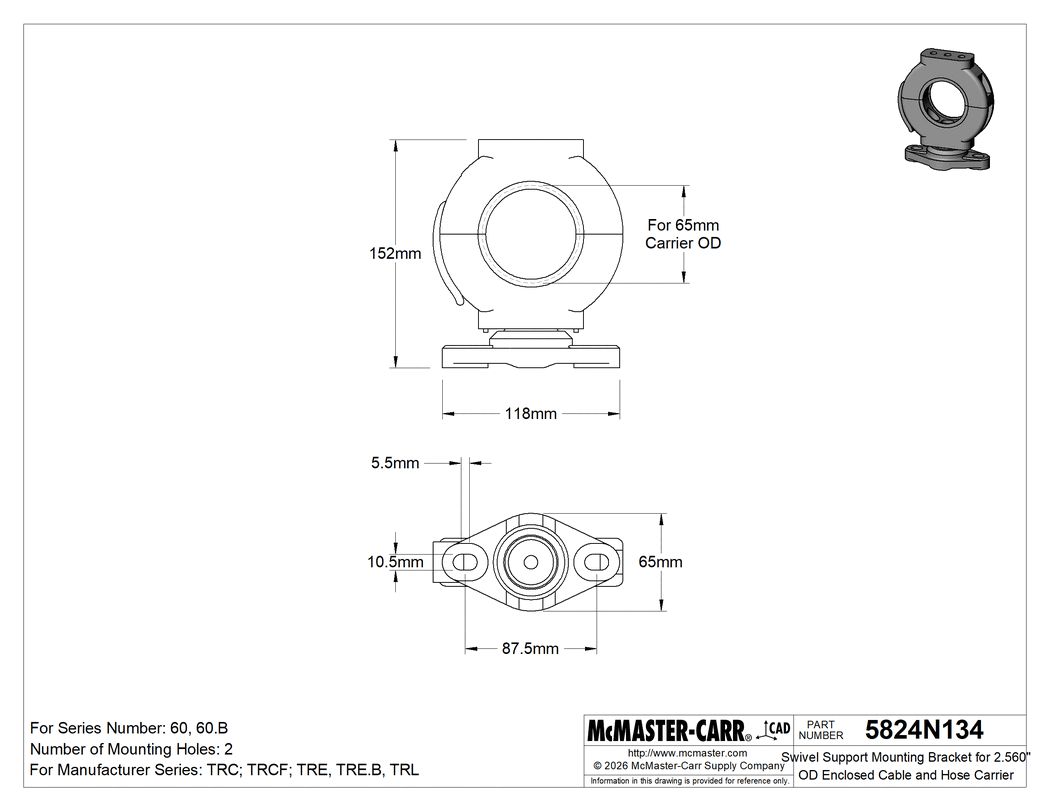

    Technical Drawing of Swivel Support Mounting Bracket for 2.560" OD Enclosed Cable&Hose Carrier.

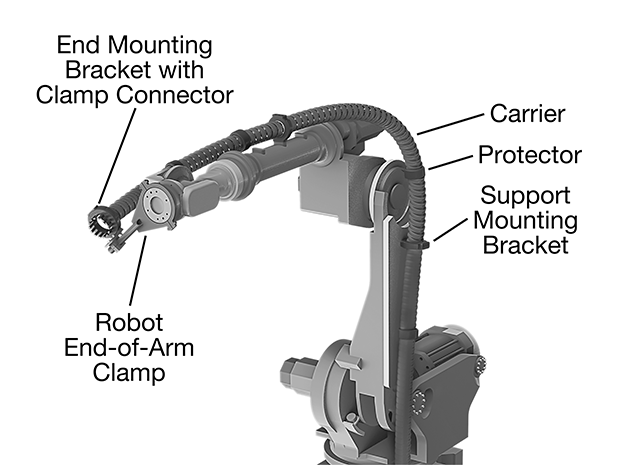

    Image of System. Front orientation. Contains Annotated. Swivel Support Mounting Bracket for 2.560" OD Enclosed Cable&Hose Carrier.
    2-D PDF
    0000000 each
    5824N134
    In stock
    5824N134
    0000000 each
    Each
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Component

    Mounting Bracket

    Bracket Movement

    Swivel

    Mounting Bracket Style

    Support

    Material

    Nylon

    For Carrier OD

    2.56" / 65 mm

    Mounting Fasteners Included

    No

    Mounting Hole Diameter

    10.5 mm

    Number of Mounting Holes

    2

    Mounting Hole Center-to-Center

    87.5 mm

    Manufacturer

    Igus

    For Manufacturer Series

    TRC, TRE, TRE.B, TRL

    For Series Number

    60, 60.B

    Color

    Black

    Country of Origin

    Germany

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    REACH (EC 1907/2006) (01/21/2025, 247 SVHC) Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    848790.0080

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    No

    Use these accessories to mount carriers to your machinery without creating an obstruction.

    Swivel—Brackets that swivel rotate and rock to soften twisting and bending motions. This reduces how much the cable and hose move, extending their life.

    Support Mounting Bracket—Support mounting brackets are spaced along an installation to keep carriers off machinery.
