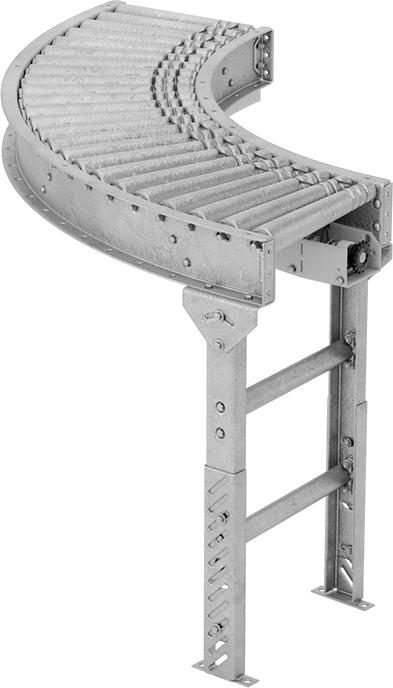

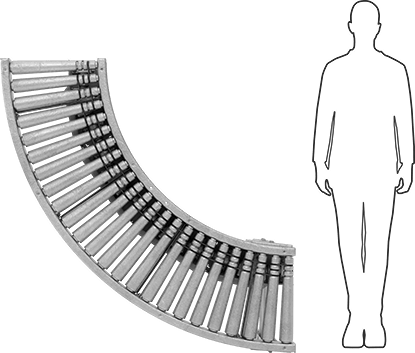

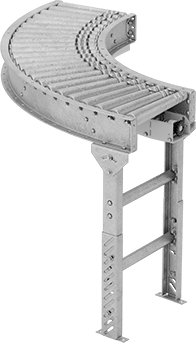

Motorized Roller Conveyor
Extension, 90 Degree Curve, 19" Overall Width
Component | 90° Curved Conveyor |
Roller | |
Diameter | 1.9" |
Material | Galvanized Steel |
Projection | 1/4" |
Axle | |
Shape | Hex |
Hex Size | 7/16" |
Grip Type | Spring Loaded |
Width | |
Overall | 19" |
Between Frame | 16" |
Radius | 36" |
Height | |
Frame | 5 1/2" |
Overall | 36" to 48" |
Wt. Cap. Per Lg. (No. of Stands Req.) | 40 lb/ft (3) |
Number of Stands Included | 1 |
Features | Connecting Plates |
Ball Bearing Material | Galvanized Steel |
Bearing | |
Type | Ball |
Material | Steel |
Frame Material | Galvanized Steel |
System of Measurement | Inch |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (02/04/2026, 253 SVHC) Compliant |
RoHS Compliance | Not Compliant |
Schedule B Number | 842839.0000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
Also known as line-shaft conveyors, these conveyors are driven by a drive shaft and round belts. Unlike belt conveyors, these have built-in accumulation, so packages can build up without crashing into one another or falling off the conveyor. The rollers are designed to smoothly transfer totes, packages, and other lightweight material. Shipping tubes, drums, and pails are less likely to get stuck in between rollers than between skate wheels.
Mix and match stands and conveyors to form straight lines, curve around obstacles, or create inclines. Only straight conveyor sections contain a motor, but they can power up to 60 ft. of conveyor extensions on either side. The motor can be reversed to send material in either direction.
Note: Weight capacities are based on an evenly distributed load. The length of the material you’re conveying should be at least three times the roller spacing.
90° Curved Conveyor—90° curved conveyors have tapered rollers that keep packages centered.

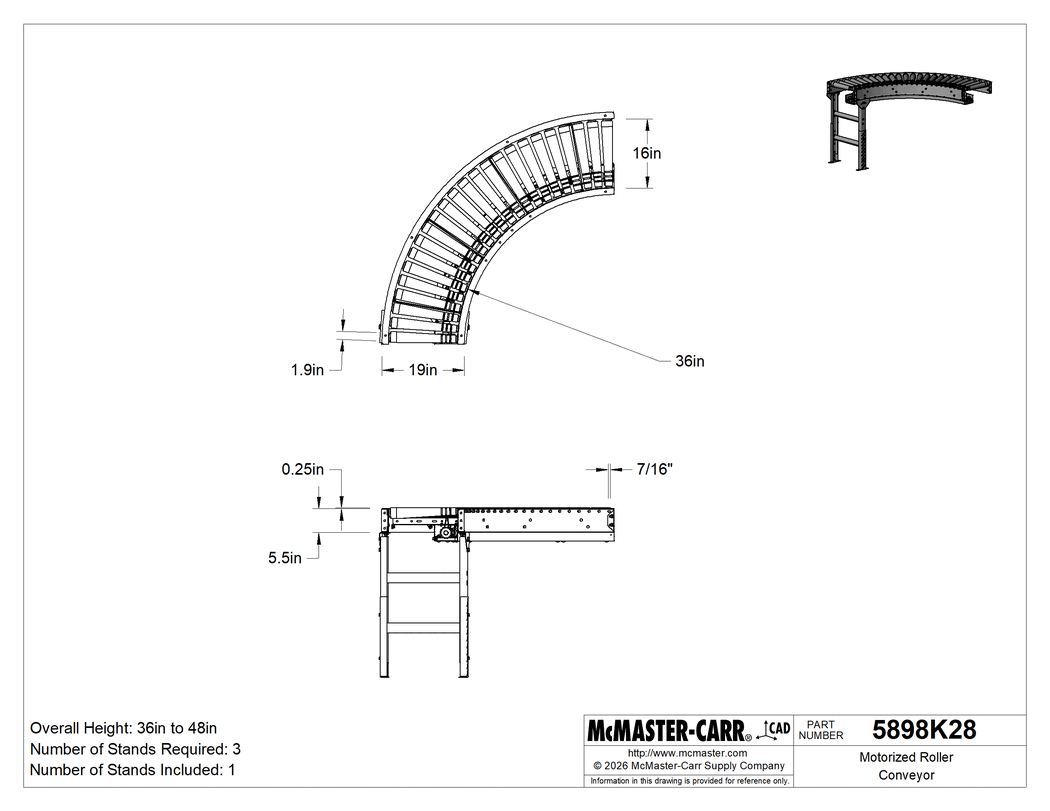

The information in this 3-D model is provided for reference only.
