Needle-Roller Bearing
Sealed on Both Sides, for 3/4" Shaft Diameter, 3/4" Wide
For Load Direction | Radial |
Bearing Seal Type | Sealed |
Seal Location | Both Sides |
Ring Material | Steel |
For Shaft Diameter | 3/4" |
For Housing ID | 1" |
Width | 3/4" |
Width Tolerance | -0.01" to 0" |
Radial Load Capacity | |
Dynamic | 2,850 lb. |
Static | 3,950 lb. |
Maximum Rotation Speed | 7,800 rpm |
Lubrication | Lubricated |
For Shaft Surface Smoothness, Ra | 8 μin |
Temperature Range | -20° F to 210° F |
Bearing Construction | Single Row |
Bearing Type | Roller |
Cage Material | Steel |
For Shaft Type | Round |
ID | 0.75" |
ID Tolerance | -0.0005" to 0" |
Lubricant | Grease |
OD | 1" |
OD Minimum Tolerance | Not Rated |
OD Maximum Tolerance | Not Rated |
Roller Bearing Type | Needle |
Roller Material | Steel |
Seal Material | Rubber |
Shaft Mount Type | Press Fit |
System of Measurement | Inch |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (06/25/2025, 250 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 848240.0000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |

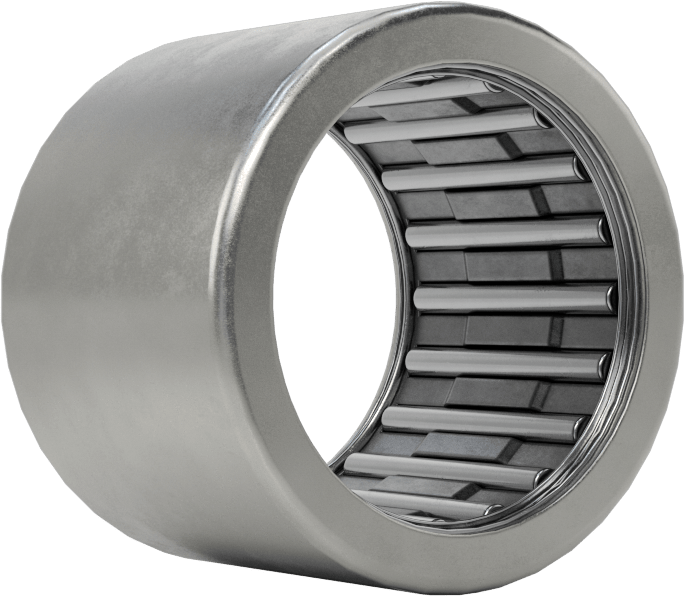

Also known as drawn-cup roller bearings, these are our thinnest roller bearings. The outer ring is drawn out to form a lip that holds the bearing together. Bearings take on the shape of their housing and may be oblong prior to installation.
Sealed Bearing—Sealed bearings block out dust and other contaminants better than open bearings, but retain more heat.

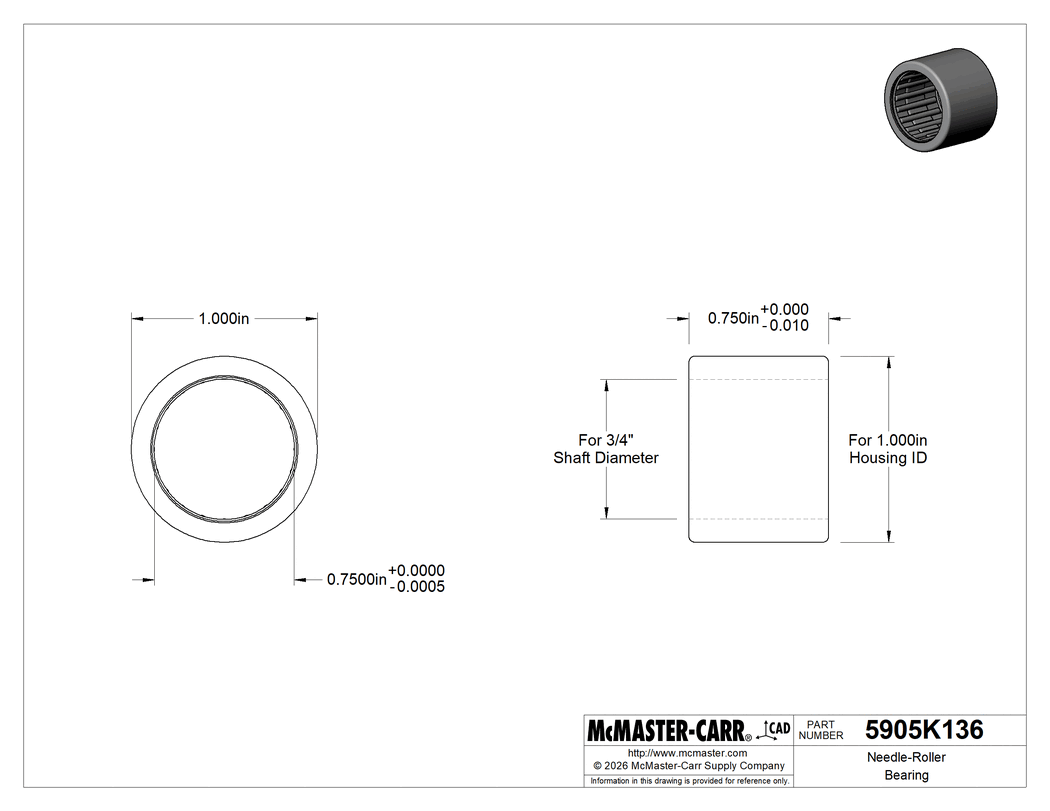

The information in this 3-D model is provided for reference only.
