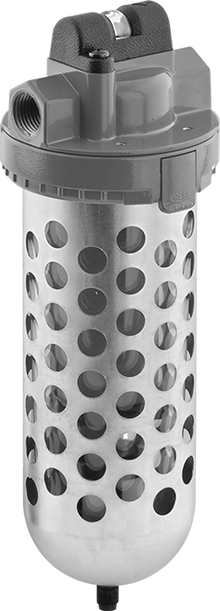

Heavy Duty Compressed Air Filter
for Oil Removal, 3/8 NPT Female

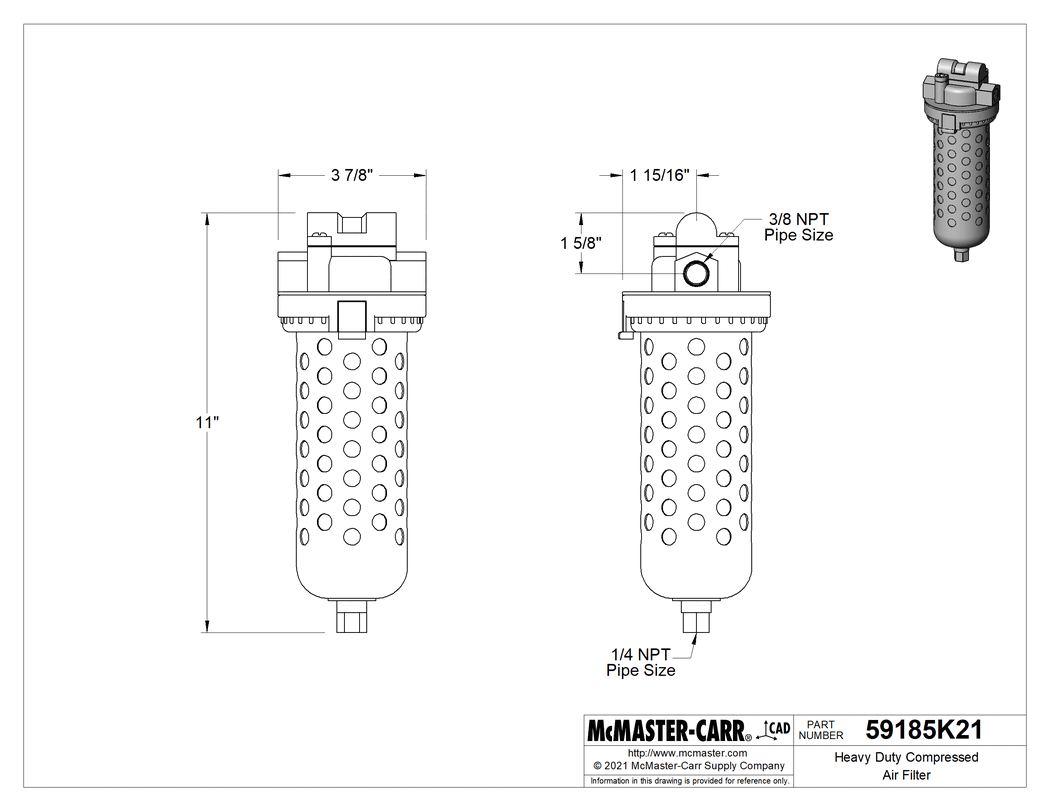

2-D PDF
0000000 each
59185K21
In stock
59185K21
0000000 each
Each
Select a compatible file type: Parasolid
Available for Solidworks 2017 or newer.
Inlet | |
Connection | Threaded |
Thread Type | NPT |
Gender | Female |
Outlet | |
Connection | Threaded |
Thread Type | NPT |
Gender | Female |
Bowl | |
Material | Polycarbonate |
Type | Clear |
Guard Material | Steel |
Drain Type | Automatic |
Pipe Size | |
Inlet | 3/8 |
Outlet | 3/8 |
Maximum Flow Rate @ Pressure | 60 scfm @ 100 psi |
Maximum Pressure | 150 psi |
Maximum Temperature | 125° F |
Removes Particle Size Down To | 0.01 μm |
Removes Oil Content Down To | 0.2 ppm |
Filter Service Indicator Included | Yes |
Housing Material | Zinc Alloy |
Overall | |
Height | 11" |
Width | 3 7/8" |
Component | Filter |
Empty Filter Color | Green |
For Removing | Particles, Oil |
Full Filter Color | Red |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (02/04/2026, 253 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 842139.0115 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
Related Products | |
Designed for use in main lines with high contamination, these filters remove oil to extend the service life of air-powered tools and equipment. They are also known as coalescing filters. All have a clear bowl so you can see inside to monitor contents. To prevent clogs, install a particle filter before the oil filter.
The information in this 3-D model is provided for reference only.
