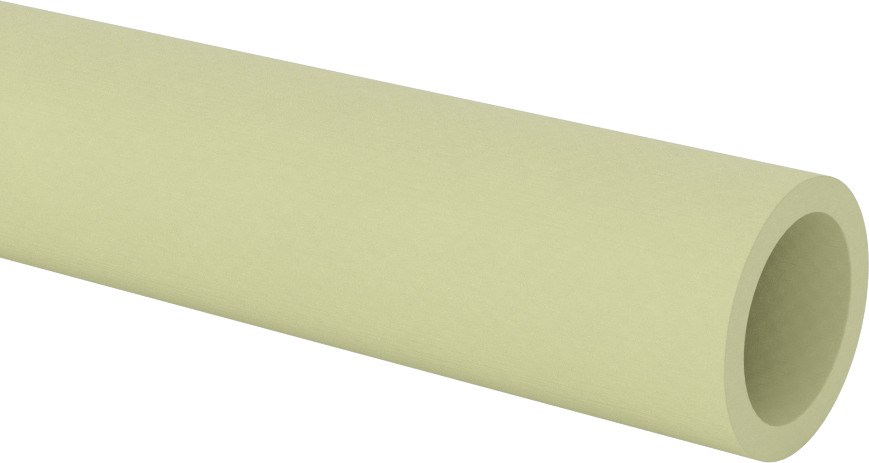

Ultra-Low-Temperature Garolite G-10 Cr Tube
1/8" Wall Thickness, 1" OD, 24" Long
Wall Thickness | 1/8" |
Color | Green |
Length | 24" |
Length Tolerance | -1" to 1" |
OD | 1" |
OD Tolerance | -0.02" to 0.02" |
ID | 3/4" |
ID Tolerance | -0.02" to 0.02" |
Temperature | |
Minimum | -450° F |
Maximum | 280° F |
Tensile Strength | 40,000 psi |
Impact Strength | 7.5 ft·lbf/in to 9.5 ft·lbf/in |
Hardness | Rockwell M110 |
Hardness Rating | Extra Hard |
For Use Outdoors | Yes |
Military Specification | MIL-I-24768/2 |
Clarity | Opaque |
Compressive Strength | 36,000 psi |
Flexural Strength | 507,000 psi |
Performance | Extreme Strength, High Strength, High Temperature, Highly Absorbent, Highly Electrically Insulating, Moisture Resistant, Ultra Impact Resistant, Ultra-Low Temperature, Weather Resistant |
Shape | Round Tube |
Density | 0.065 lb/in³ |
Dielectric Strength | 350 V/mil |
Environment | Low Temperature, Outdoor |
Flexibility | Rigid |
Material | Garolite |
Material Grade | Garolite G-10/CR |
Reinforcement Material | Fiberglass Fabric |
Resin Material | Epoxy |
Straightness Tolerance | Not Rated |
Texture | Smooth |
Tolerance Rating | Standard |
Warning Message | Physical and mechanical properties are not guaranteed. They are intended only as a basis for comparison and not for design purposes. |
Water Absorption | 0.15% |
Country of Origin | Denmark |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (01/23/2024, 240 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 391729.0090 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
Additional Specifications |
Rated for temperatures down to -450° F, this Garolite G-10 CR performs better in cryogenic applications than other glass epoxies. An excellent thermal insulator, it’s often used to transport liquid gases. It also prevents the flow of electrical current. This Garolite keeps its shape without cracking when bent. It has a glass fabric base for strength.

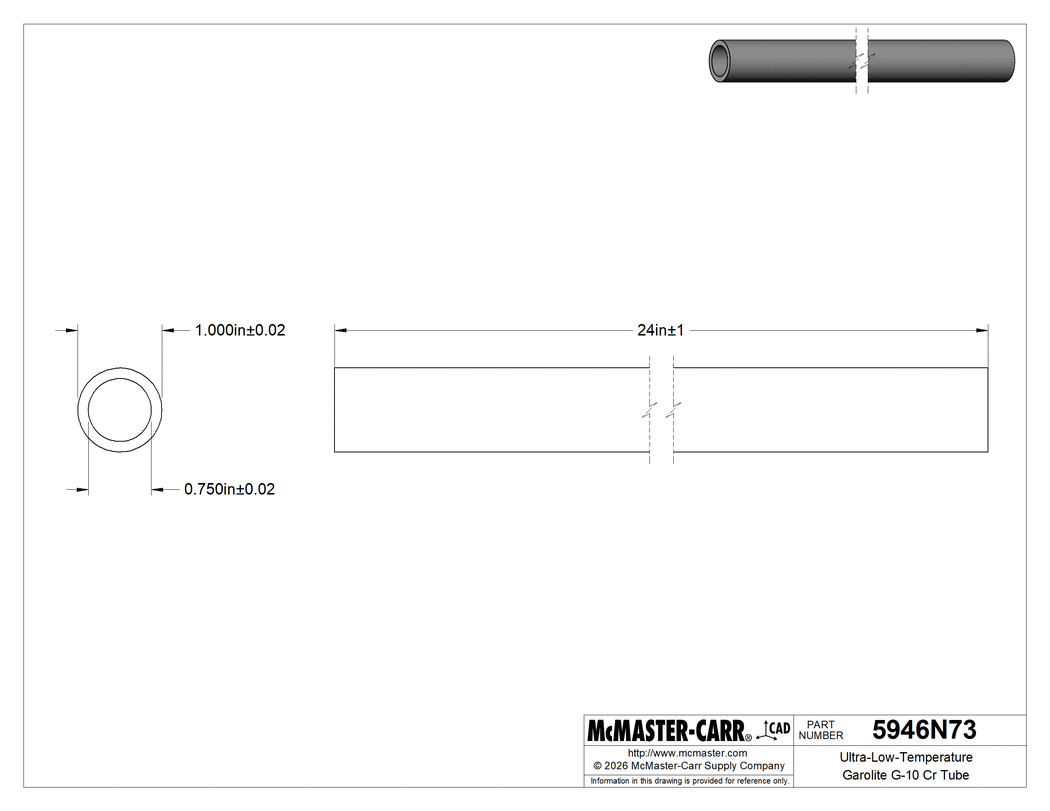

The information in this 3-D model is provided for reference only.
