    Vibration-Damping Pad

    Oil-Resistant Buna-N, 4" Diameter x 1/2" Thick, Durometer 65A

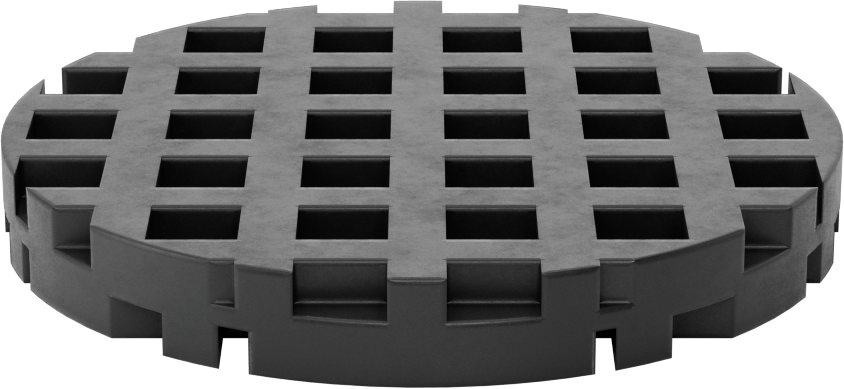

    Image of Product. Bottom orientation. Vibration-Damping Pad, Oil-Resistant Buna-N, 4" Diameter x 1/2" Thick, Durometer 65A.

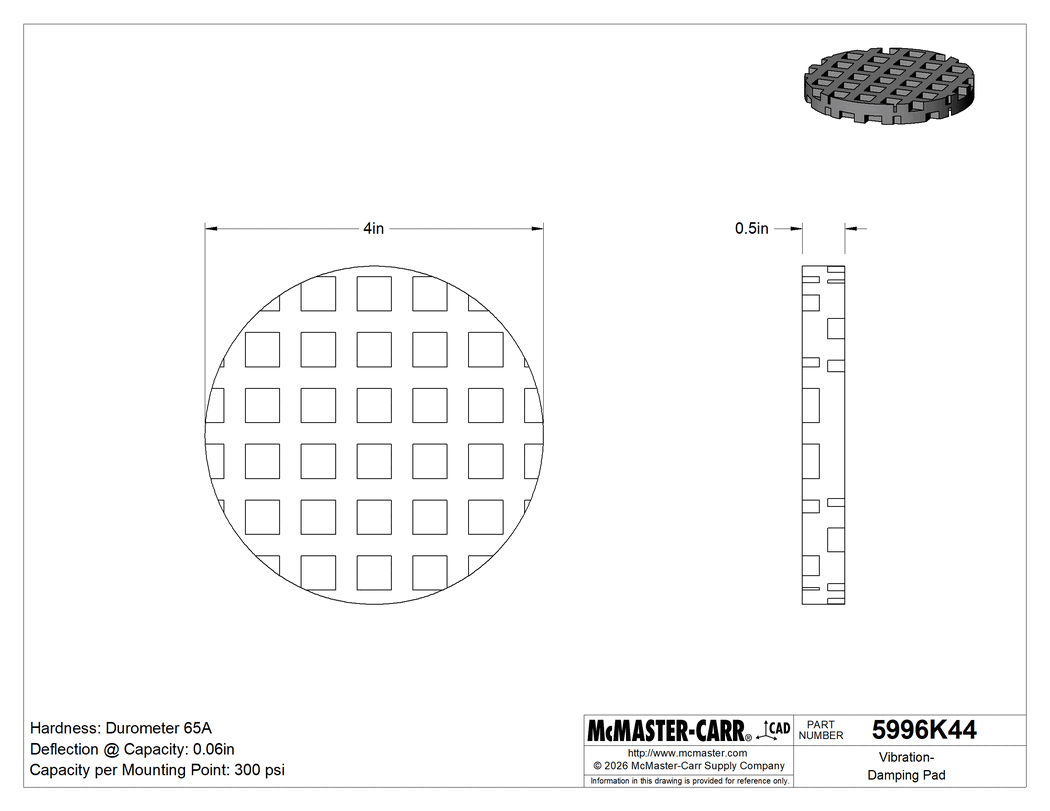

    Technical Drawing of Vibration-Damping Pad, Oil-Resistant Buna-N, 4" Diameter x 1/2" Thick, Durometer 65A.
    Image of Product. Side1 orientation. Contains SizingReference. Vibration-Damping Pad, Oil-Resistant Buna-N, 4" Diameter x 1/2" Thick, Durometer 65A.
    2-D PDF
    000000 each
    5996K44
    In stock
    5996K44
    000000 each
    Each
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Performance

    Oil Resistant

    Material

    Buna-N

    Shape

    Round

    Texture

    Crisscross

    Diameter

    4"

    Thickness

    1/2"

    Capacity per Mounting Point

    300 psi

    Deflection @ Capacity

    0.06"

    Construction

    Solid

    Hardness

    Durometer 65A

    Hardness Rating

    Medium Hard

    Color

    Black

    Temperature Range

    -40° F to 200° F

    Mount Type

    Rest On

    Country of Origin

    United States

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    Not Compliant

    RoHS Compliance

    Not Compliant

    Schedule B Number

    401610.0000

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    Yes

    Place pads under equipment, such as drill presses, milling machines, saws, and air-conditioning units to minimize vibration and noise transmitted to and from machinery.

    These pads provide excellent resistance to oil and solvents.

    Crisscross Texture—Crisscross-texture pads provide stability and a secure grip between your machinery and the floor.

    The information in this 3-D model is provided for reference only.
