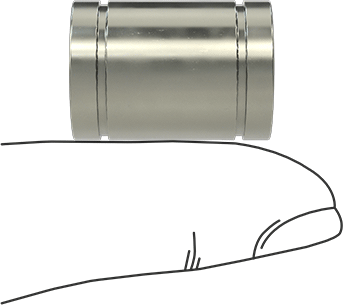

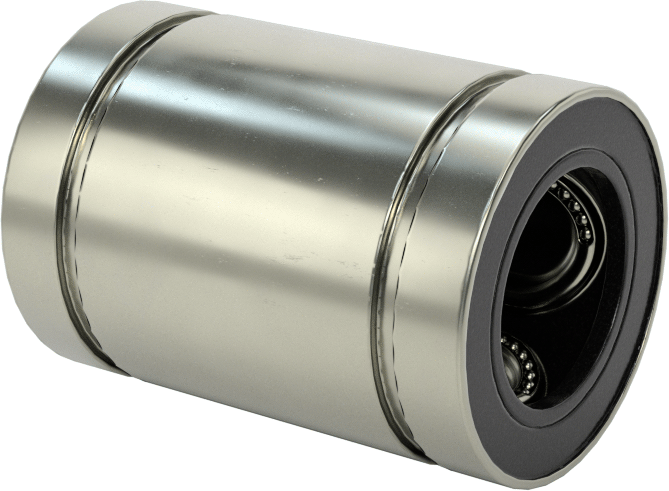

Fixed Alignment Ball Linear Bearing
Steel Bearing with Steel Ball, for 3/8" Shaft Diameter, 7/8" Long Overall
Alignment Style | Fixed |
Material | |
Bearing | Steel |
Ball | Steel |
For Shaft Diameter | 3/8" |
Overall Length | 7/8" |
OD | 5/8" |
OD Tolerance | -0.0005" to 0" |
For Housing ID | 0.6250" to 0.6257" |
With Retaining Ring Grooves | Yes |
Retaining Ring Groove End-to-End Length | 0.64" |
With End Seals | Yes |
Load Capacity | |
Dynamic | 50 lb. |
Static | 70 lb. |
Maximum Temperature | 176° F |
For Shaft Material | Stainless Steel, Steel |
Bearing Type | Ball |
For Minimum Shaft Hardness | |
Steel | Rockwell C60 |
Stainless Steel | Rockwell C56 |
For Shaft Type | Round |
ID | 0.375" |
ID Tolerance | -0.0004" to 0" |
Linear Bearing Component | Bearing |
Lubrication | Required |
Country of Origin | Japan |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | 1C999 |
REACH Compliance | REACH (EC 1907/2006) (01/23/2024, 240 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 848210.5012 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
Related Product |
Bearings are for use with round end-supported shafts. To install, slide bearings into a housing (not included).
Fixed Alignment—Fixed-alignment bearings are for use where shaft misalignment is unlikely.
With Retaining Ring Grooves—For bearings with retaining ring grooves, secure with two retaining rings (sold individually).
With End Seals—Bearings with end seals keep lubricant in and dust out.

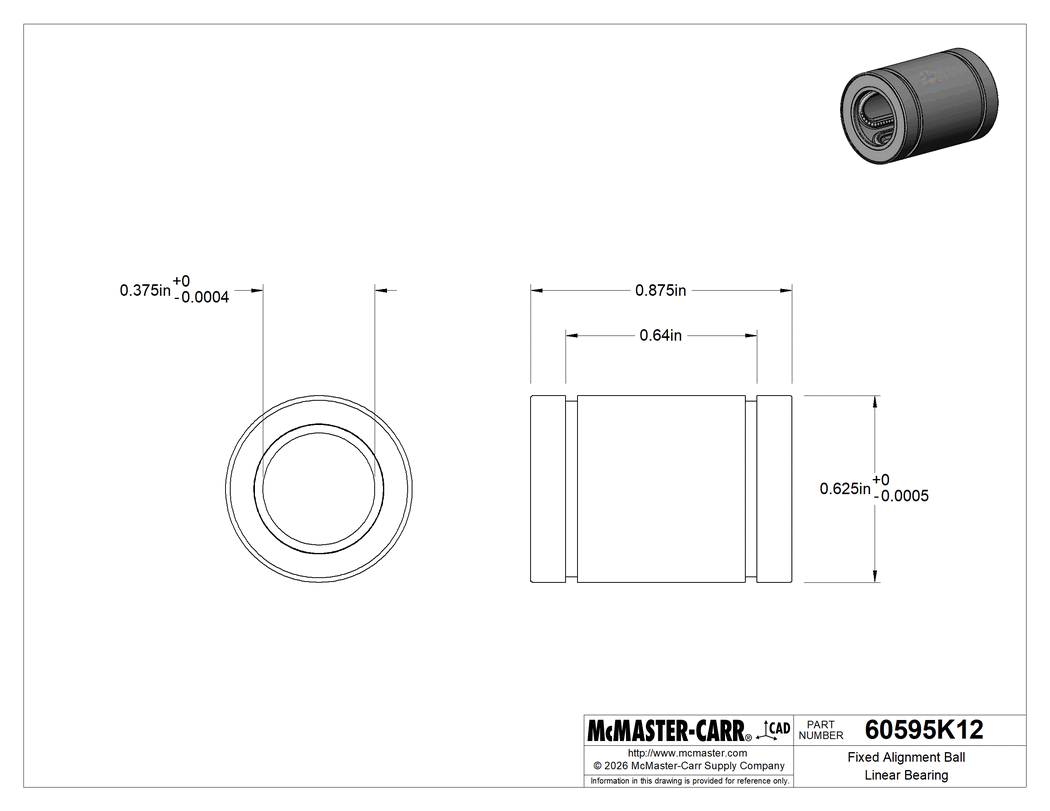

The information in this 3-D model is provided for reference only.
