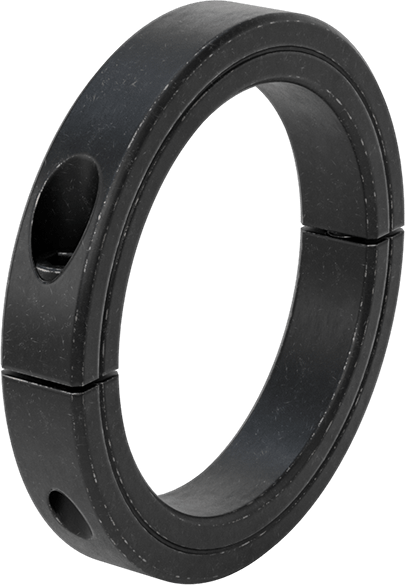

Clamping Two-Piece Shaft Collar
for 4" Diameter, Black-Oxide 1215 Carbon Steel

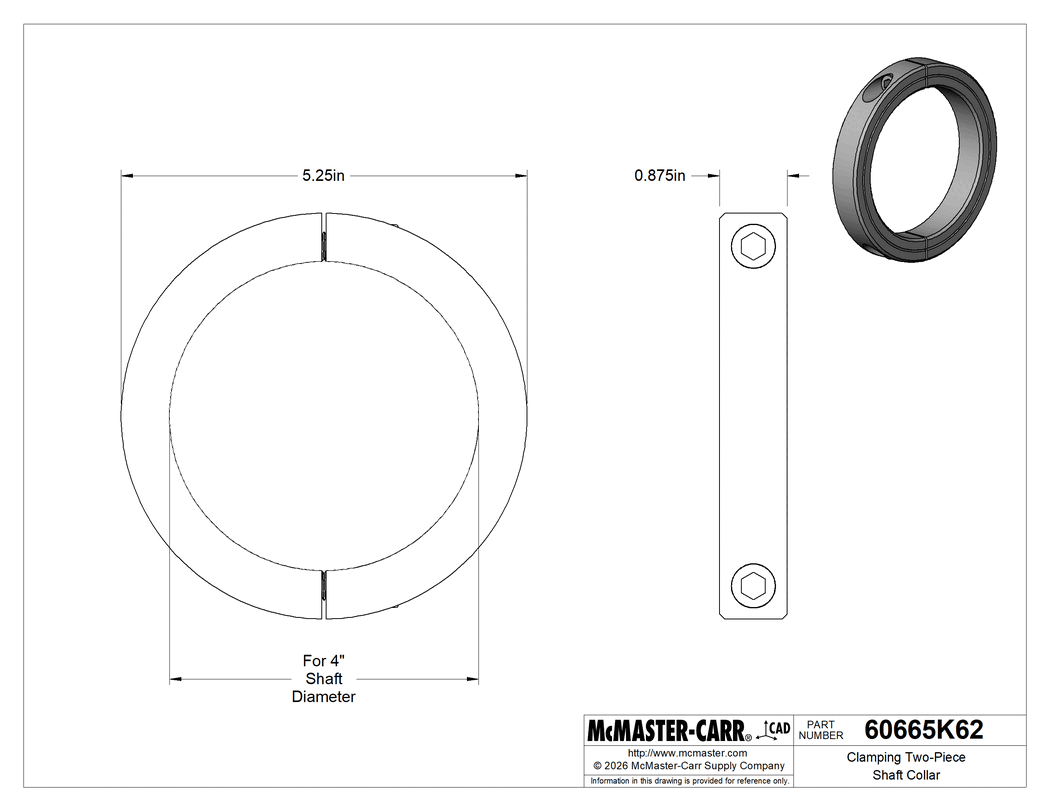

2-D PDF
0000000 each
60665K62
In stock
60665K62
0000000 each
Each
Select a compatible file type: Parasolid
Available for Solidworks 2017 or newer.
Material | Black-Oxide Carbon Steel |
For Shaft Type | Round |
For Shaft Diameter | 4" |
OD | 5 1/4" |
Width | 7/8" |
Clamping Screw | |
Type | Socket Head |
Material | Black-Oxide Steel |
Number Included | 2 |
Construction | Two Piece |
Performance | Ultra Machinable |
Shaft Mount Type | Clamp On |
Steel Grade | 1215 Carbon Steel |
System of Measurement | Inch |
Country of Origin | United States |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (02/04/2026, 253 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 848790.0080 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | Yes |
Attach these collars anywhere along your shaft, which helps when other components are already installed or you can't access the end. They clamp firmly and evenly without marring the shaft, so you can reposition or remove collars later.
Black-Oxide Carbon Steel—Dark and matted for a finished look, but with minimal corrosion resistance. Best for dry environments.
The information in this 3-D model is provided for reference only.
