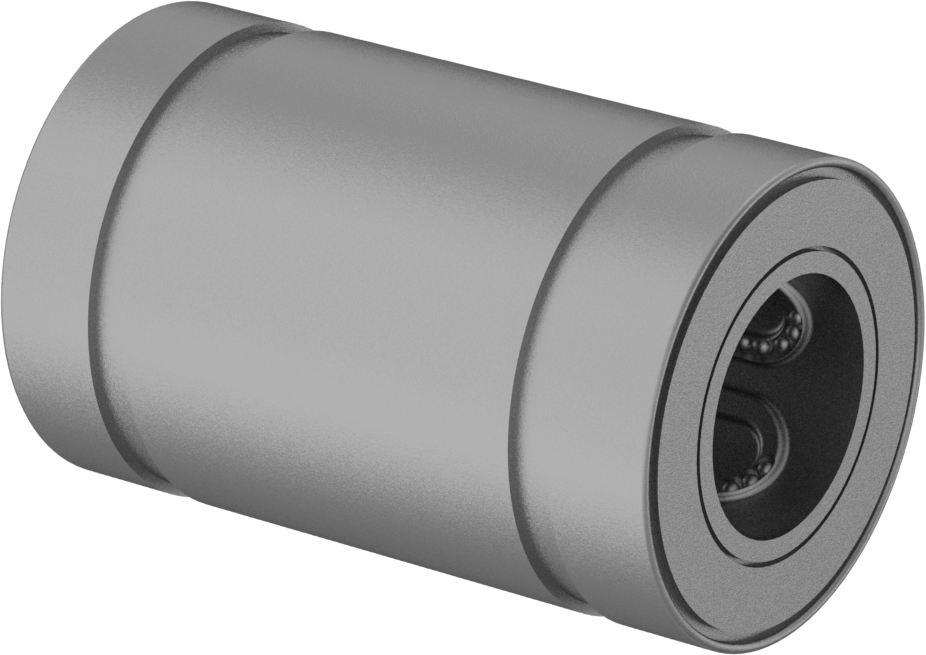

Fixed Alignment Ball Linear Bearing
for 6 mm Shaft Diameter
Alignment Style | Fixed |
Material | |
Bearing | Steel |
Ball | Steel |
For Shaft Diameter | 6 mm |
Overall Length | 19 mm |
OD | 12 mm |
OD Tolerance | -0.011 mm to 0 mm |
For Housing ID | 12.000 mm to 12.018 mm |
With Retaining Ring Grooves | Yes |
Retaining Ring Groove End-to-End Length | 13.5 mm |
With End Seals | Yes |
Load Capacity | |
Dynamic | 45 lb. |
Static | 55 lb. |
Temperature | |
Minimum | -4° F |
Maximum | 176° F |
For Shaft Material | Stainless Steel, Steel |
Bearing Type | Ball |
For Minimum Shaft Hardness | |
Steel | Rockwell C60 |
Stainless Steel | Rockwell C56 |
For Shaft Type | Round |
ID | 6.000 mm |
ID Tolerance | -0.009 mm to 0 mm |
Linear Bearing Component | Bearing |
Lubrication | Required |
Country of Origin | Japan |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (01/23/2024, 240 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 848210.5012 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
Related Product |
Bearings are for use with round end-supported shafts. To install, slide bearings into a housing (not included).
Fixed Alignment—Fixed-alignment bearings are for use where shaft misalignment is unlikely.
With Retaining Ring Grooves—For bearings with retaining ring grooves, secure with two retaining rings (sold individually).
With End Seals—Bearings with end seals keep lubricant in and dust out.

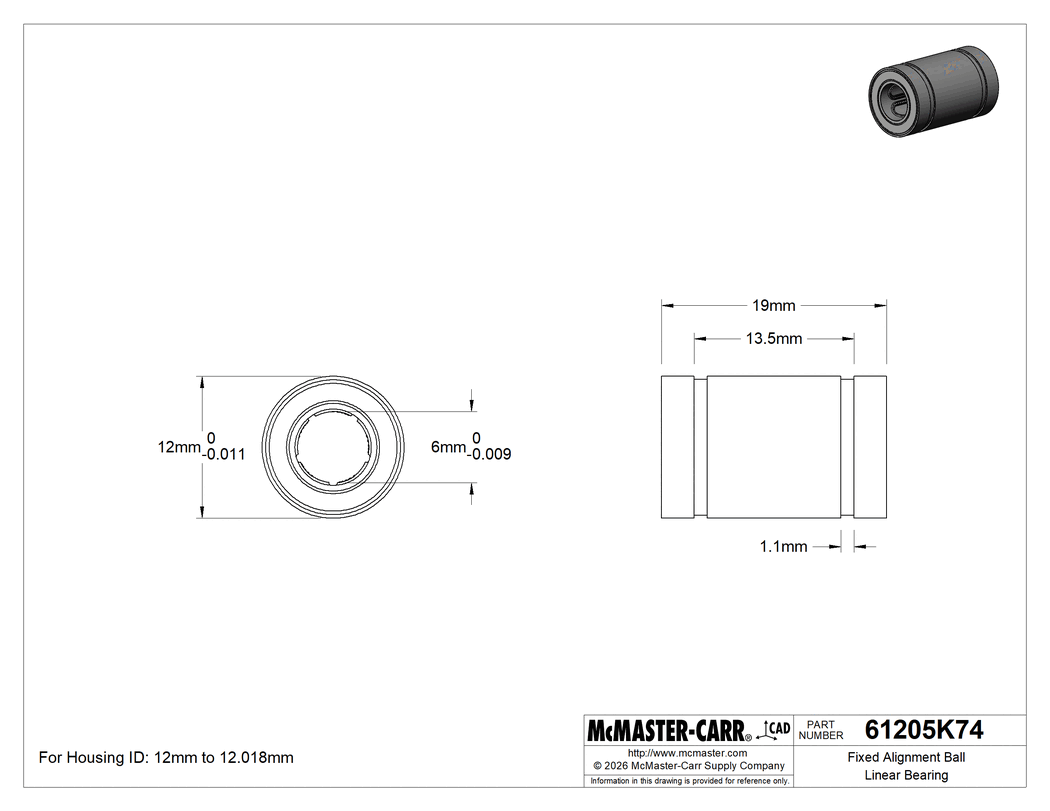

The information in this 3-D model is provided for reference only.
