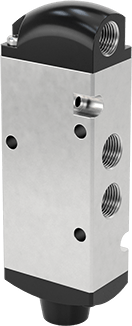

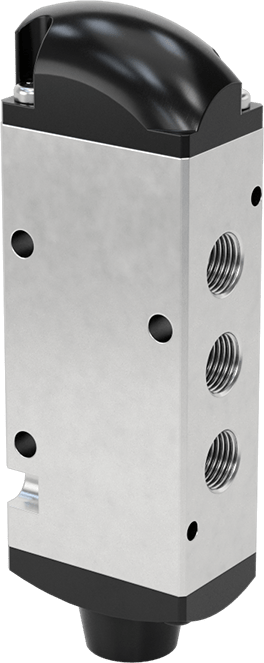

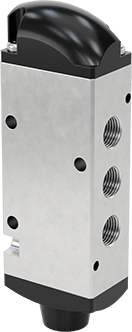

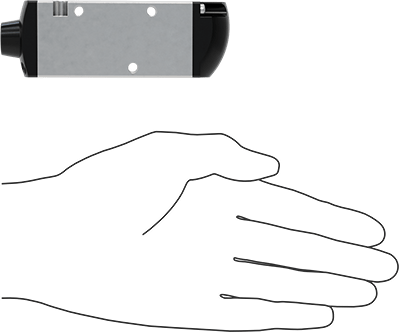

Air Directional Control Valve
Air-Operated, Spring Return, 1/8 NPT
Inlet | |
Connection | Threaded |
Gender | Female |
Outlet | |
Connection | Threaded |
Gender | Female |
Air Pilot Connection | Threaded |
Air Pilot Gender | Female |
Return Actuation | Air-Assisted Spring |
Minimum Actuation Pressure | 44 psi |
Number of Flow Ports | 5 |
Number of Air Pilot Ports | 1 |
Inlet Size | 1/8 NPT |
Outlet Size | 1/8 NPT |
Exhaust Connection | Threaded |
Air Pilot Size | 1/8 NPT |
Maximum Flow Rate @ 100 psi | 43.1 scfm |
Flow Coefficient (Cv) | 1.3 |
Pressure Range | 0 psi to 145 psi |
Vacuum Rating | 26 in. Hg |
Overall | |
Length | 4 1/8" |
Width | 7/8" |
Height | 1 3/8" |
Mount Type | Screw In |
Mounting Fasteners Included | No |
Mounting Hole Diameter | 0.18" |
Actuation | Air |
Air Directional Control Valve Flow Pattern | 5/2 |
Air Directional Control Valve Type | 4 Way |
Body Material | Aluminum |
Exhaust Gender | Female |
Exhaust Pipe Size | 1/8 |
Exhaust Thread Type | NPT |
Flow Control Type | None |
For Actuation Type | Double Acting |
For Use With | Compressed Air |
Maximum Flow Rate @ Pressure | 43.1 scfm @ 100 psi |
Number of Actions Created | 2 |
Number of Flow Positions | 2 |
Number of Ports | |
Inlet | 1 |
Outlet | 2 |
Exhaust | 2 |
Temperature | 15° F to 120° F |
Valve Function | Directional Control |
Valve Type | Spool |
Country of Origin | Czech Republic |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | REACH (EC 1907/2006) (06/27/2024, 241 SVHC) Compliant |
RoHS Compliance | RoHS 3 (2015/863/EU) Compliant |
Schedule B Number | 848180.9040 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
Often used to extend and then retract a cylinder at different speeds, these valves create two actions and have two exhaust ports, which allows you to control the speed of each action by attaching a flow control valve to each exhaust port. Also known as pilot valves and 4-way valves, they use an air signal to actuate, so they're good for environments where electrical use may be dangerous. They direct airflow from the inlet to your equipment and exhaust return airflow to create motion.
Air-Assisted Spring Return—Valves with air-assisted spring return actuation require you to supply air to port P to go back to their starting position.
Flow Coefficient (Cv)—Flow coefficient (Cv) indicates how much airflow can pass through a valve.

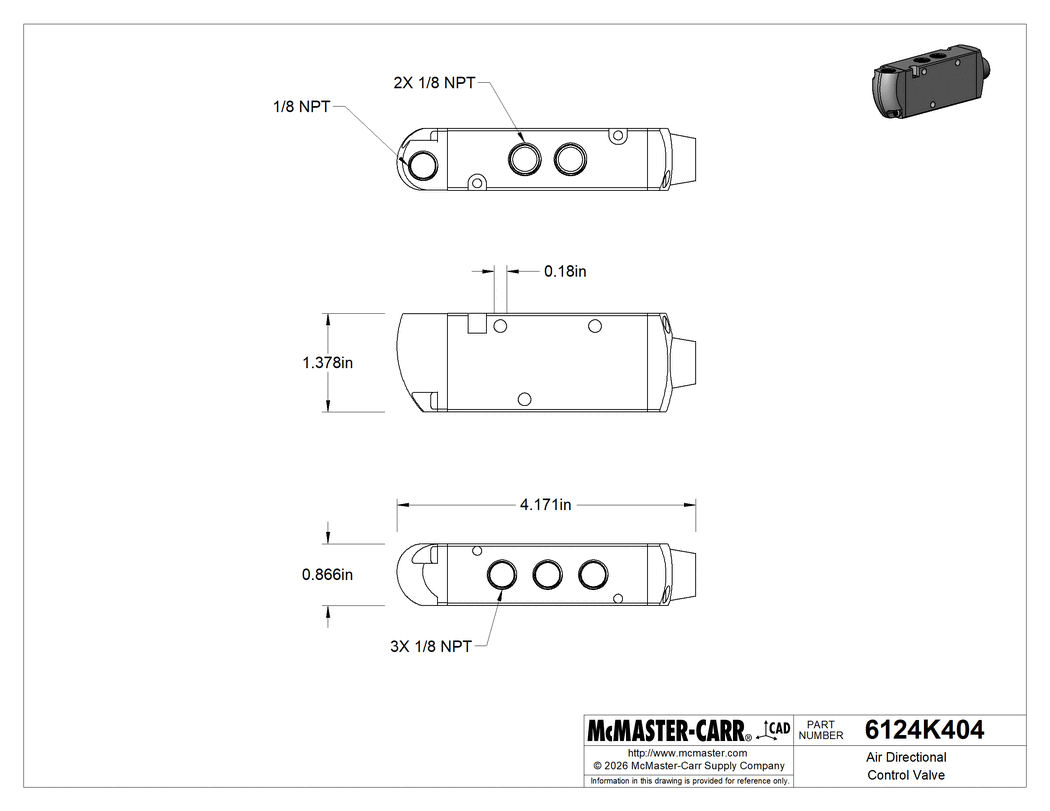

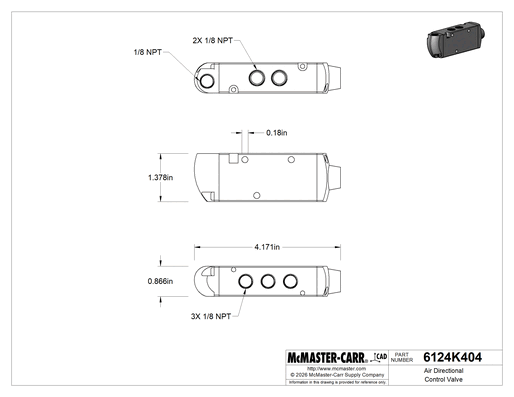

The information in this 3-D model is provided for reference only.
