    303 Stainless Steel Through-Wall Sight

    for Clear Liquid for 1-1/2" Diameter Hole

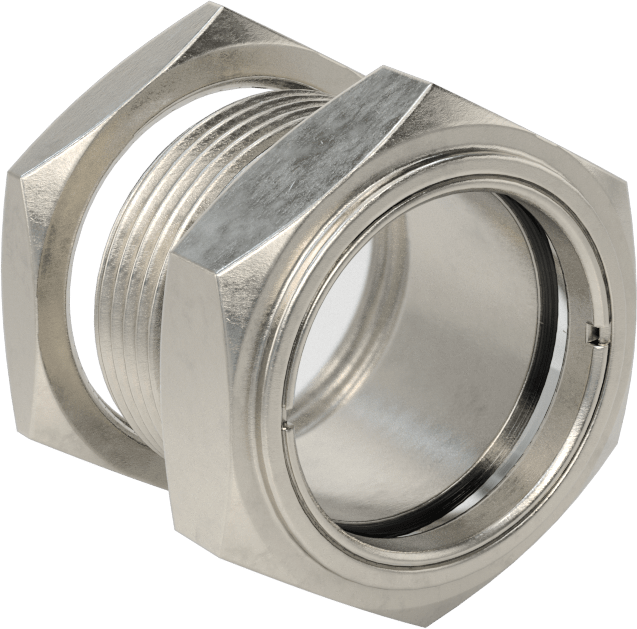

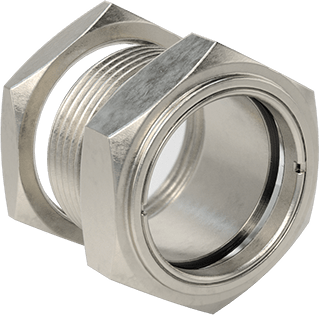

    Image of Product. Front orientation. 303 Stainless Steel Through-Wall Sight, for Clear Liquid for 1-1/2" Diameter Hole.

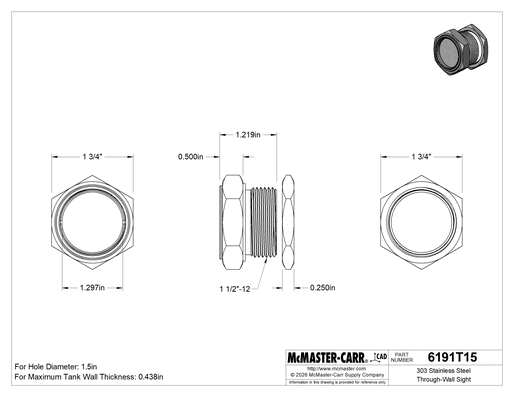

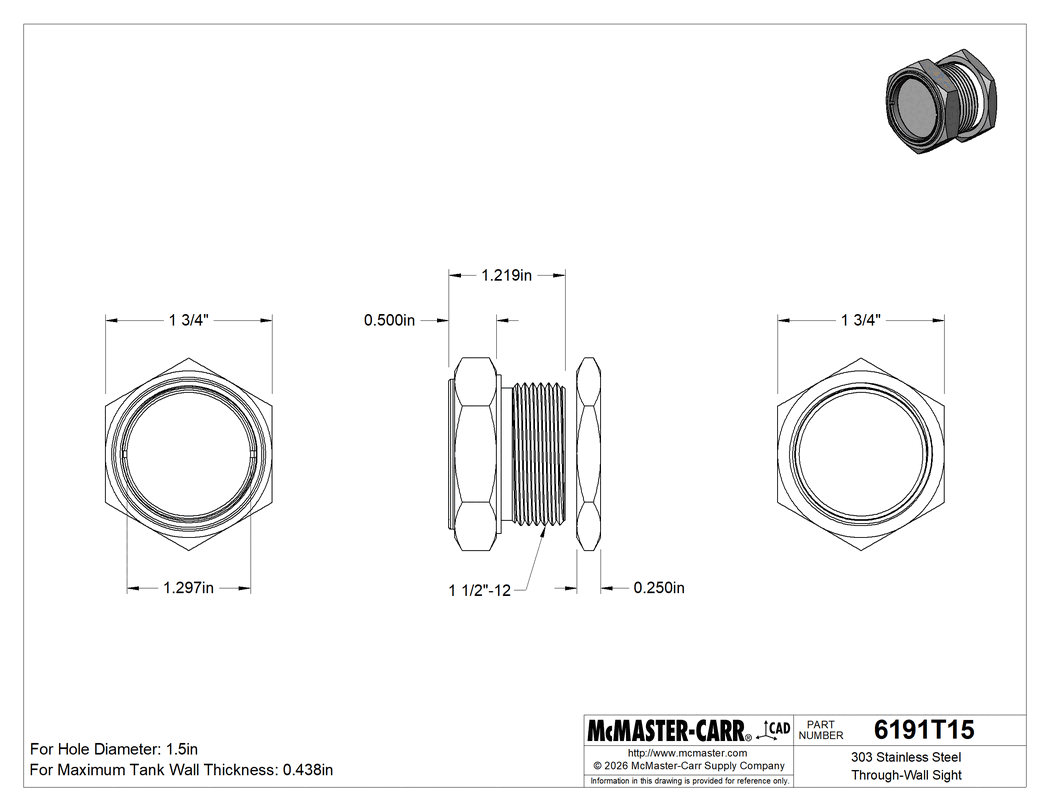

    Technical Drawing of 303 Stainless Steel Through-Wall Sight, for Clear Liquid for 1-1/2" Diameter Hole.

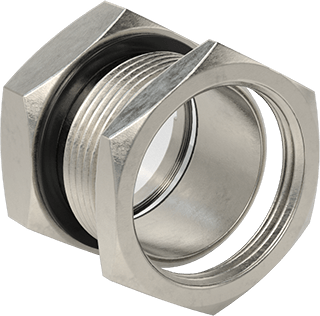

    Image of Product. Back orientation. 303 Stainless Steel Through-Wall Sight, for Clear Liquid for 1-1/2" Diameter Hole.

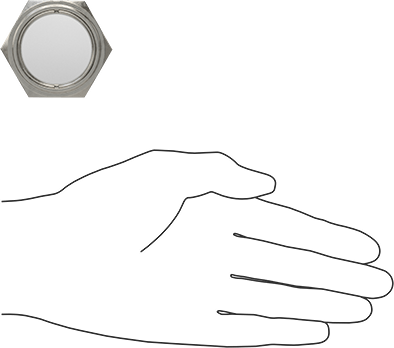

    Image of Product. Side1 orientation. Contains SizingReference. 303 Stainless Steel Through-Wall Sight, for Clear Liquid for 1-1/2" Diameter Hole.
    2-D PDF
    000000 each
    6191T15
    In stock
    6191T15
    000000 each
    Each
    In stock
    Streamline your design process with our Solidworks Add-In
    Available for Solidworks 2017 or newer.
    Material

    303 Stainless Steel

    Window

    Diameter

    1 5/16"

    Material

    Glass

    For Liquid Appearance

    Clear

    For Hole Diameter

    1 1/2"

    Hex Size

    1 3/4"

    For Maximum Tank Wall Thickness

    7/16"

    Maximum Pressure @ Temperature

    50 psi @ 70° F

    Temperature Range

    0° F to 225° F

    For Use With

    Water, Diesel Fuel, Hydraulic Fluid (Petroleum Based)

    Seal Material

    Buna-N

    Includes

    Lock Nut

    Mounting Location

    Through Wall

    Country of Origin

    United States

    DFARS Compliance

    Specialty Metals COTS-Exempt

    Export Control Classification Number (ECCN)

    EAR99

    REACH Compliance

    Not Compliant

    RoHS Compliance

    RoHS 3 (2015/863/EU) Compliant

    Schedule B Number

    702000.9000

    U.S.–Mexico–Canada Agreement (USMCA) Qualifying

    Yes

    Mount these sights from the inside of your tank and secure with a lock nut. They install through unthreaded holes in tank walls.

    303 Stainless Steel—303 stainless steel sights are more corrosion resistant than aluminum sights.

    The information in this 3-D model is provided for reference only.
