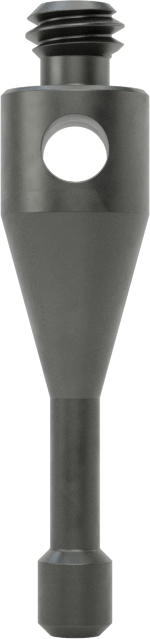

Renishaw Probe Stylus
Cylindrical, Number A-5004-7589, 1.5mm Diameter Steel End
For Use On | Thin Materials |
End | |
Diameter | 1.5 mm |
Material | High-Carbon Steel |
End Diameter Tolerance | -0.004 mm to 0.004 mm |
Stylus End Shape | Cylinder |
Mounting Thread | |
Size | M2 × 0.4 mm |
Gender | Male |
Tip Shape | Flat |
Effective Working Length | 1.3 mm |
Overall Length | 11 mm |
Stem Diameter | 1 mm |
Material | |
Stem | High-Carbon Steel |
Body | High-Carbon Steel |
Manufacturer | Renishaw |
Manufacturer Model Number | A-5004-7589 |
Country of Origin | United Kingdom |
DFARS Compliance | Specialty Metals COTS-Exempt |
Export Control Classification Number (ECCN) | EAR99 |
REACH Compliance | Not Compliant |
RoHS Compliance | Not Compliant |
Schedule B Number | 903190.0000 |
U.S.–Mexico–Canada Agreement (USMCA) Qualifying | No |
Measure holes and edges on sheet metal and other thin materials. The straight edges on these cylindrical styli maintain stable contact with thin materials better than the curved edges on a ball styli. However, they’re not as precise as ball styli. When they touch a workpiece, they trigger your coordinate measuring machine (CMM) probe to send a signal and measure geometric features. They’re often used with touch-trigger probes.
As a rule of thumb, you should use a stylus with the shortest length that works for your application. If a stylus is too long, it’s more likely to move farther than it should, reducing measurement accuracy.
High-Carbon Steel End—High-carbon steel ends are heat treated and precision ground, but they're not as hard as ruby ends or as rigid as tungsten carbide ends.

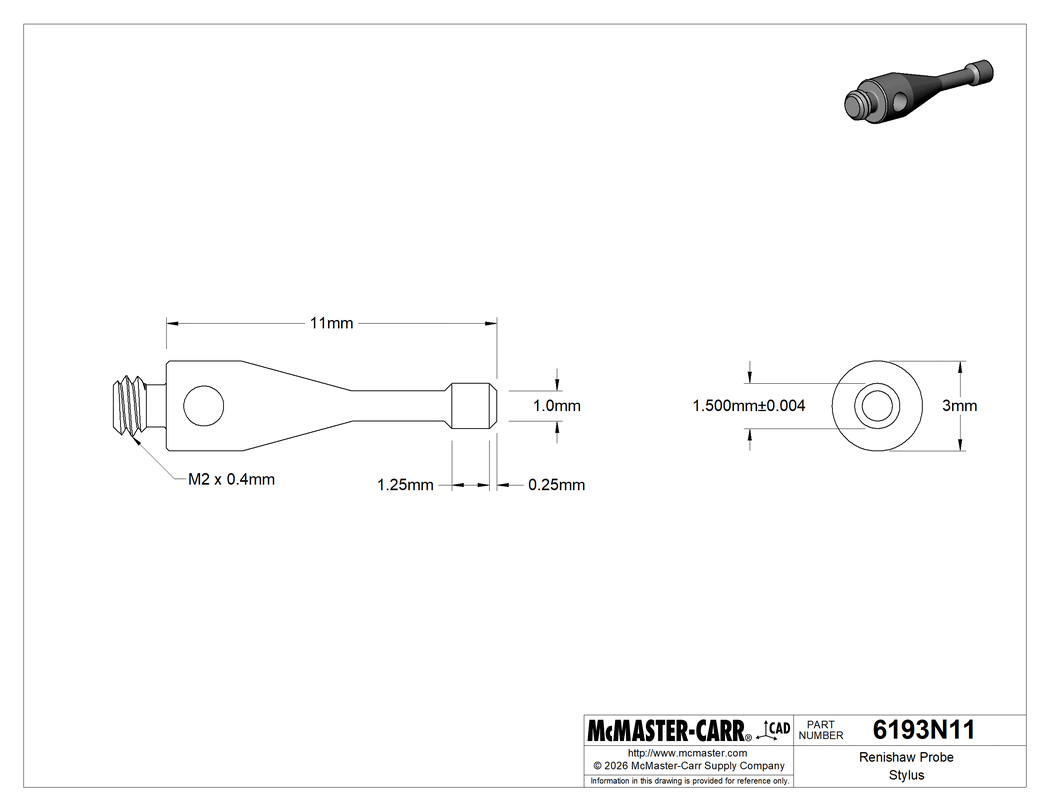

The information in this 3-D model is provided for reference only.
